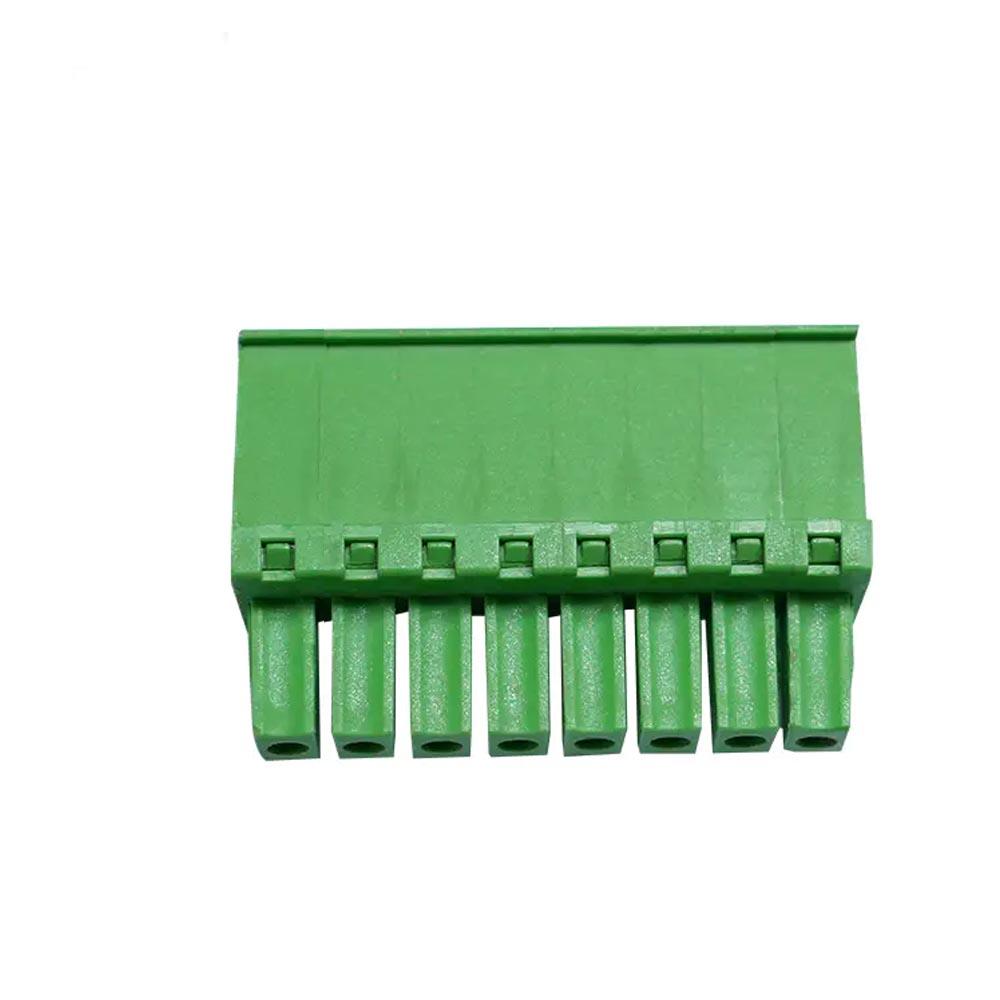

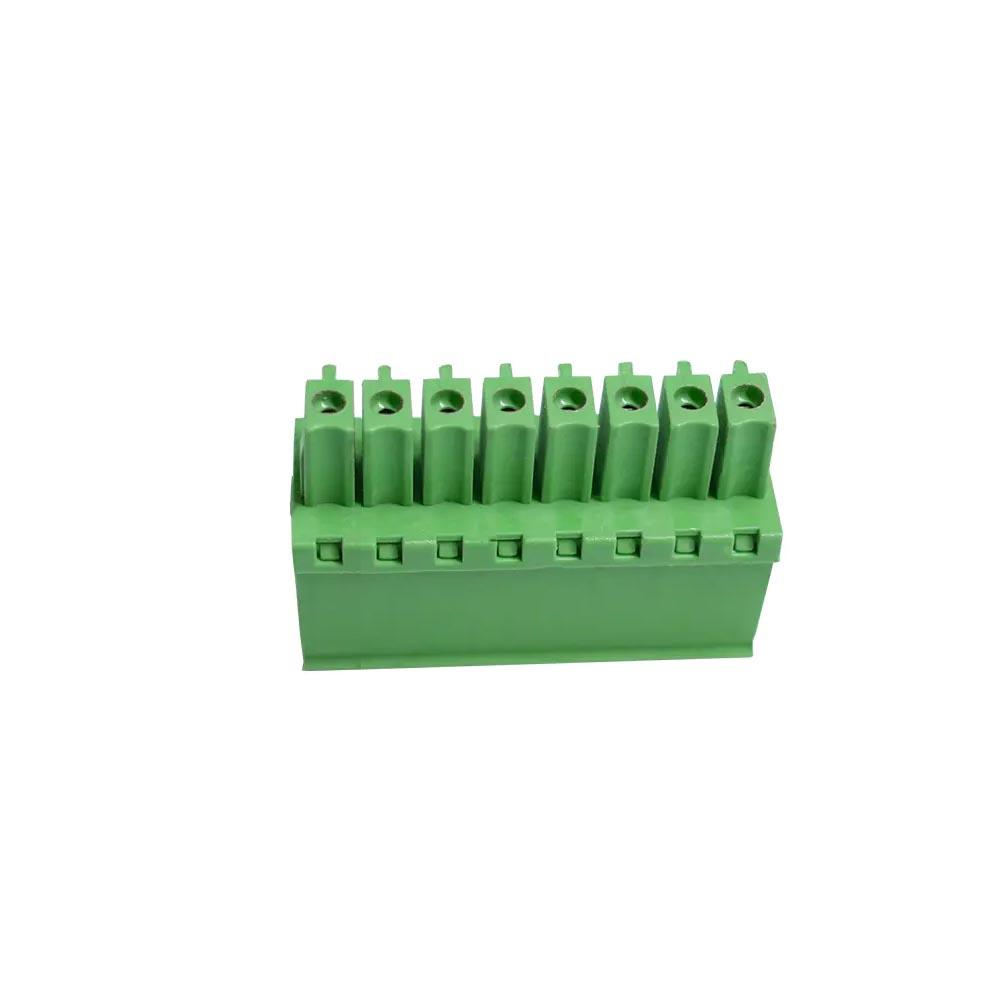

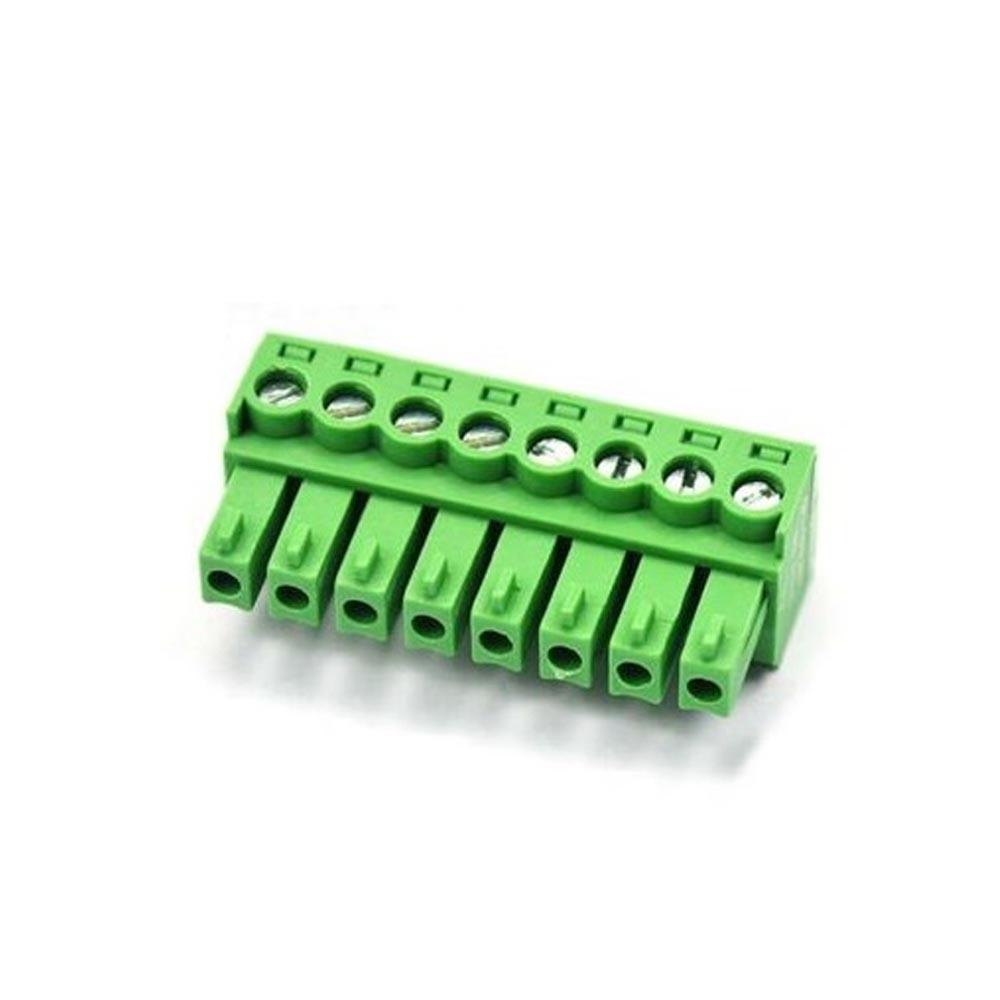

XY2500 8Pin Right Angle Female Terminal Block Connector 3.81 Pitch

Description

XY2500 8Pin Right Angle Female Terminal Block Connector 3.81 Pitch

8 Pin Right Angle Female Terminal Block Connector 3.81mm Pitch  8Pin Plug Terminal Block Connector Right Angle Features: It is used for connecting power sources. Featured by Sharvi Electronics The good insulating property, never worried about getting an electric shock, safe and reliable. This product is known as 8 Pin Right Angle Terminal Block, 8 Pin Terminal Block, 8Pin Female Terminal Block Right Angle, 3.81mm Plug type, 5085 Terminal, Connector, 8Pin plug terminal block, plug type terminal connector, R-1812, Terminal Block, Terminal Block Connector, Terminal Connector, XY 2500, XY2500, ZBK400R, zbk400r- 2EDG 3.81mm

Features/Specs:

• Make: Xinya
• Model: XY2500FC_3.81
• Poles: 8Pin
• Gender: Female
• Orientation: Right Angle
• Pitch: 3.81mm
• Voltage Rating: 250V
• Current Rating: 250V@7A
• Voltage Rating: 300V
• Current Rating: 300V@8A
• Rated Torque: 0.2N.m (1.7Lb-In.)
• Ambient Temperature: -40°C ~ +150°C
• Housing: PA66 (UL94V-0)
• Strip Length: 6-7mm
• Wire Range: 28~16AWG
• Screws: M2,Steel,A3,Zn Plated
• Contact: Phosphor Bronze, Nickel Plated
• Cage: Brass, Nickel Plated
• Termination: Pluggable Terminal Block
• Color: Green

Applications:

• Electrical Device etc…

Datasheet: Xinya XY2500_3.81

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

Package Includes:

1 x XY2500 8Pin Right Angle Female Terminal Block Connector 3.81 Pitch
