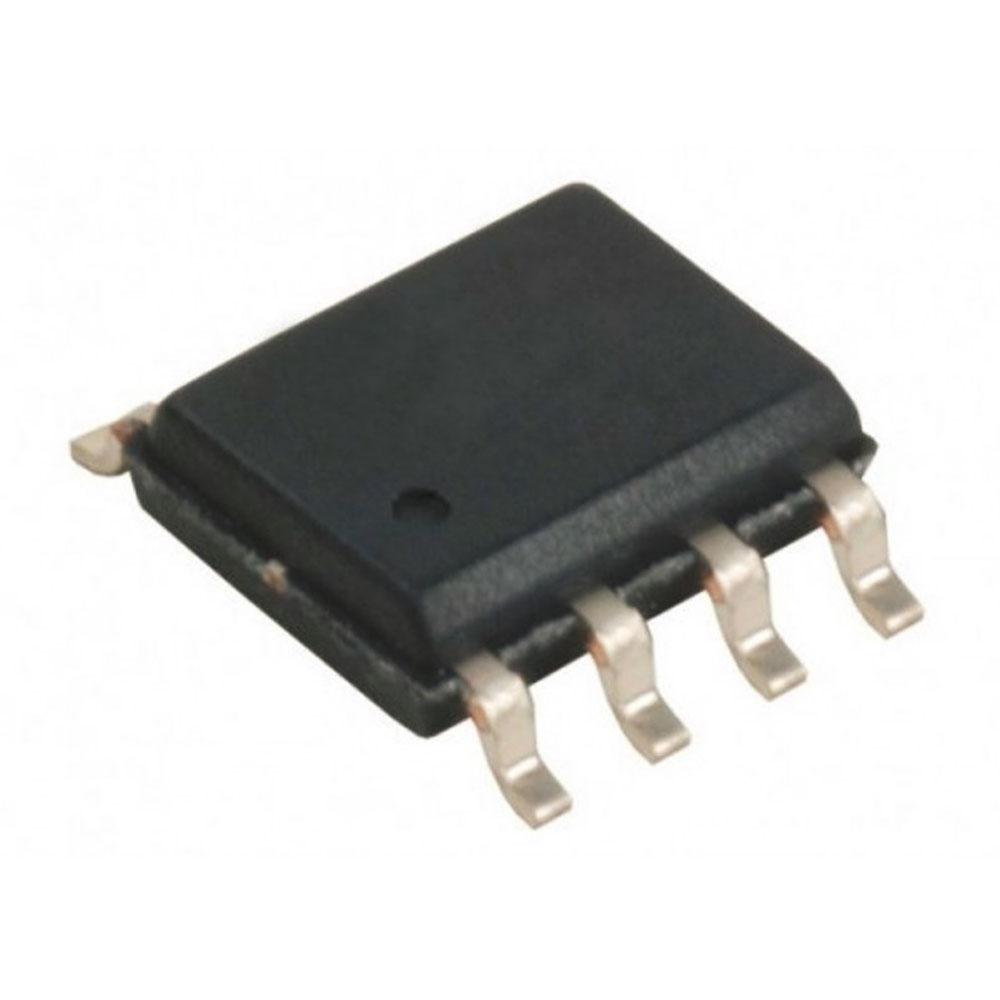

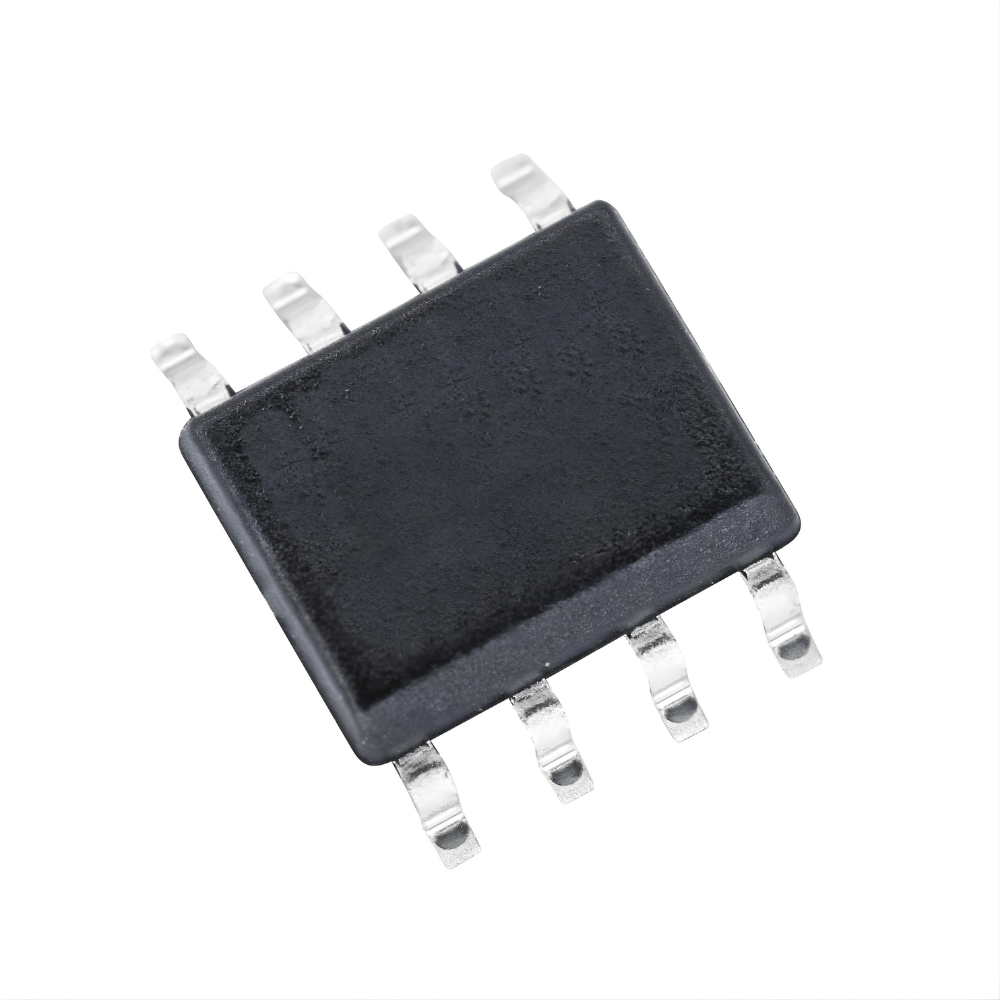

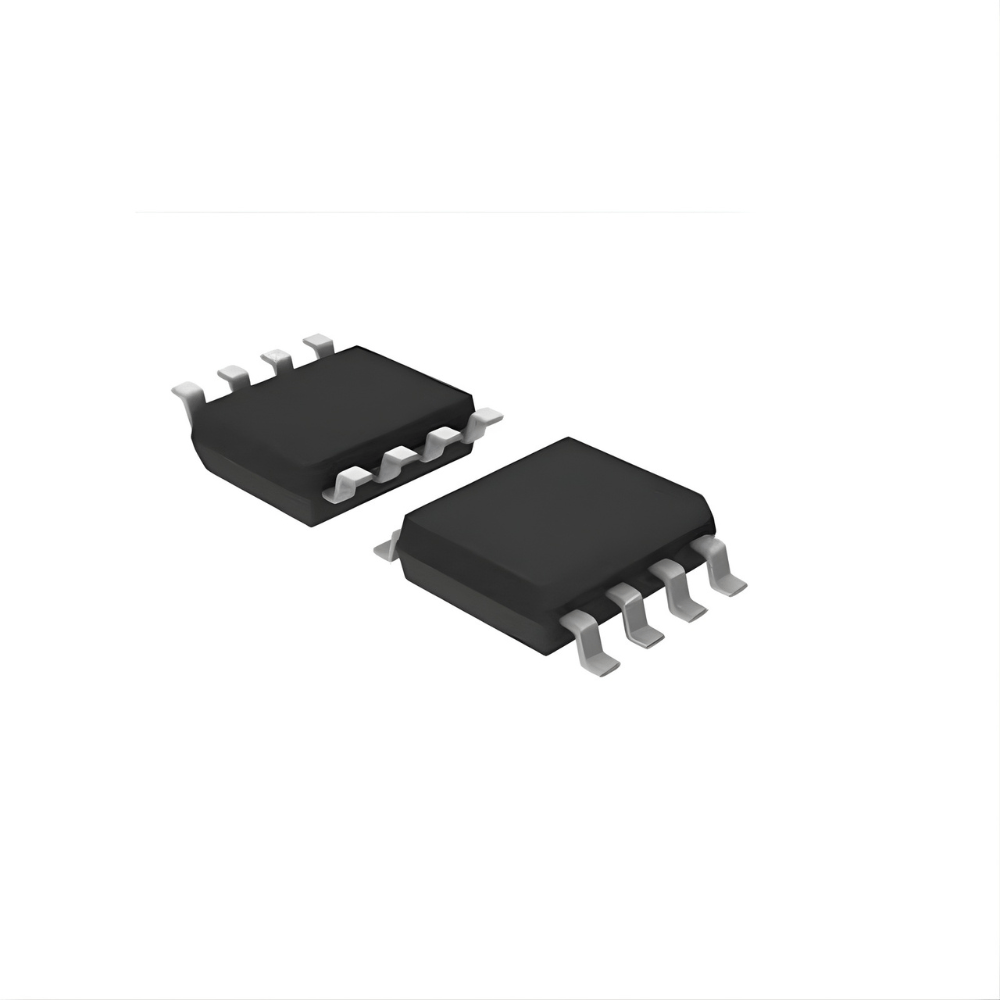

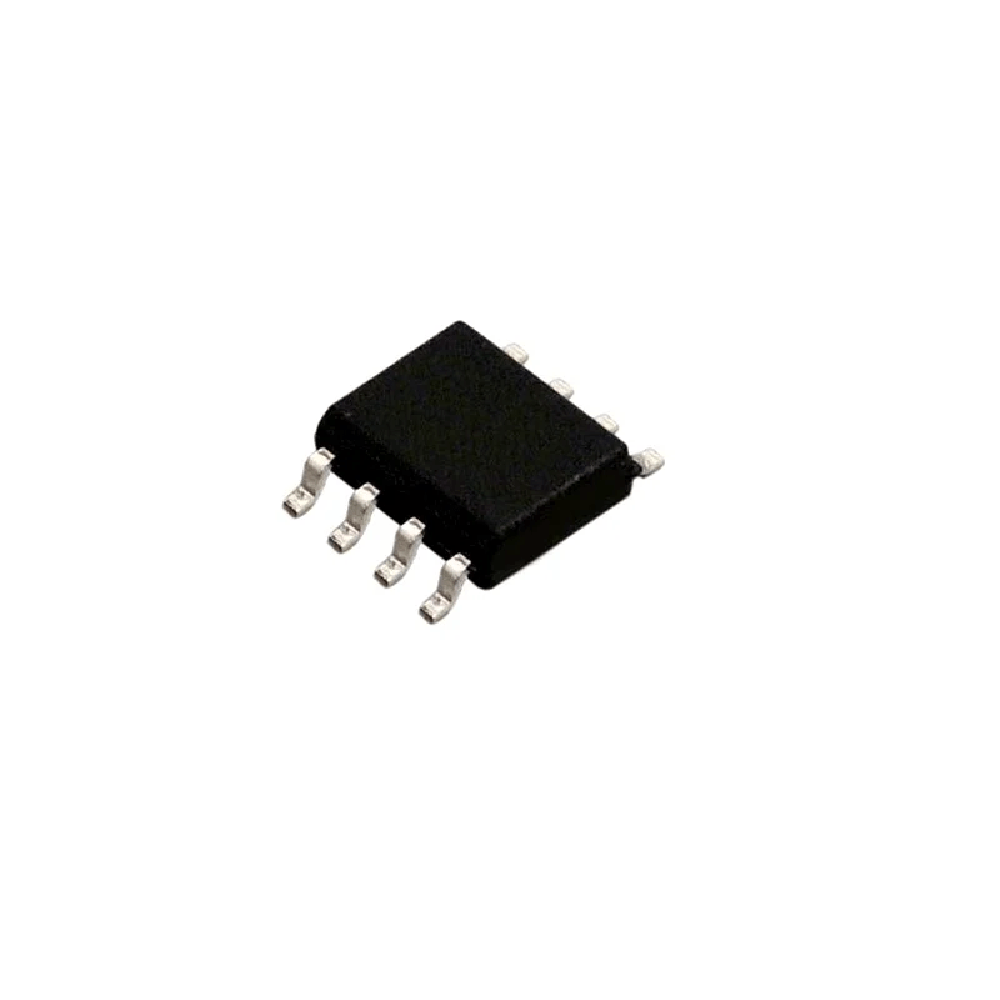

UPC 4570 SMD IC

Description

The UPC4570 is an ultra low-noise, wideband high slew-rate, dual operational amplifier. Input equivalent noise is three times better than the conventional 4558 type op-amps. The gain bandwidth products and the slew-rate are seven times better than 4558. In spite of fast AC performance, the UPC4570 is extremely stable under voltage-follower circuit conditions. Supply current is also improved compared with conventional wideband op-amps.

Features :

• Ultra low noise: en = 4.5 nV/√Hz
• High slew rate: 7 V/μs
• High gain bandwidth product: GBW = 15 MHz at 100 kHz
• Internal frequency compensation
• Max Voltage between V+ and V−: −0.3V to +36V
• Max Differential Input Voltage (VID): +30V
• Input Voltage (VI): (V− − 0.3)V to (V+ + 0.3)V
• Output Voltage (VO): (V− − 0.3)V to (V+ + 0.3)V
• Max Power Dissipation (PT): 350mW
• Output Short Circuit Duration (ts): 10 sec
• Operating Ambient Temperature (TA): −20°C to +80°C
• Storage Temperature (Tstg): −55°C to +125°

Packing List:

1 X UPC 4570 SMD IC
