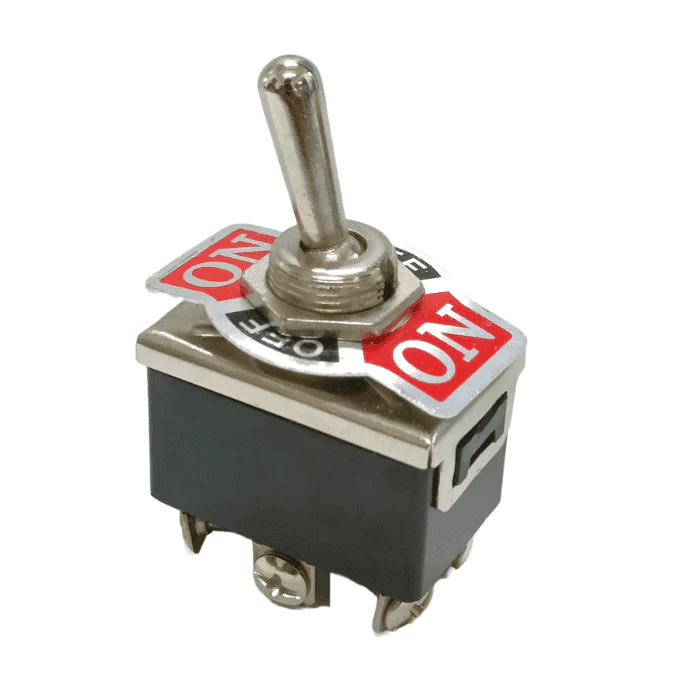

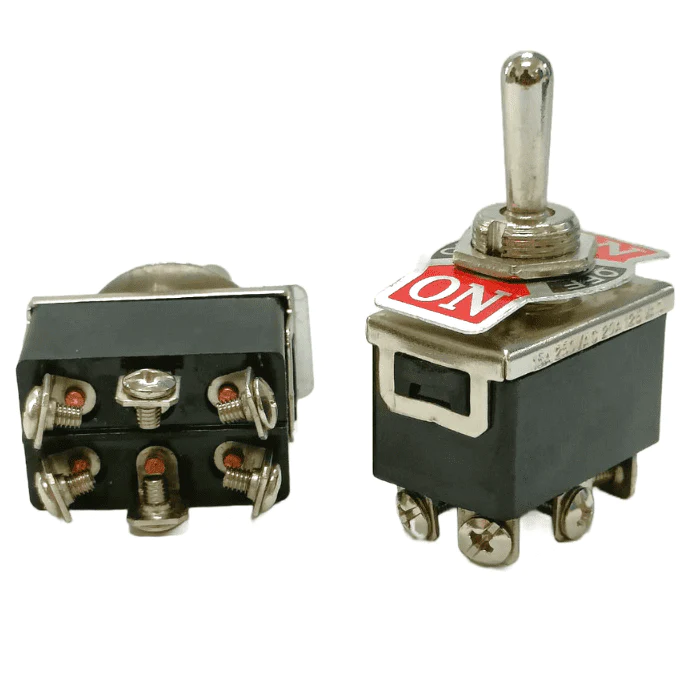

Toggle Switch 6A 250V DPDT ON-OFF-ON Elmeco Industrial Grade

Description

The Toggle Switch 6A 250V DPDT ON-OFF-ON by Elmeco is an industrial-grade switch designed for various electrical applications. It has a Double Pole Double Throw (DPDT) configuration, which means it can control two separate circuits simultaneously. The ON-OFF-ON functionality indicates that it has three positions: one position turns one set of contacts ON, the middle position turns both sets of contacts OFF, and the other position turns the second set of contacts ON. This switch is rated for a maximum current of 6A and a voltage of 250V, making it suitable for a wide range of electrical systems where durability and reliability are essential.

6A-250V AC
B. Insulation Resistance :	100M  (Min.) At 500V. DC.
C. Break Down Voltage :	1500V. AC For one minute
D. Contact Resistance :	20 m  (Max.)
E. Mech./Electrical life Endurance :	20,000 / 10,000 cycles
F. Ambient Temperature :	> 80 C
G. Terminal :	Brass 6.3 x 080 QC, Solder, Screw Type-(Nickle, Tin, Silver Plated)
H. Contact :	Made of  Thermo Plastic
I. Rocker Housing :	Made of Thermo Plastic
J. Body/Knod Colour :	White (W) & Black (B)
K. Lense Colour :	Red (R), Amber (A), Green (G), Blue (LU)
L. Mounting :	Push and Fix
M. Operational Marking :	0,0-I, I-O-II, etc., Can be provided on request.

Package Includes :

1 x Toggle Swith 6A 250V DPDT ON-OFF-ON Elmeco Industrial Grade
