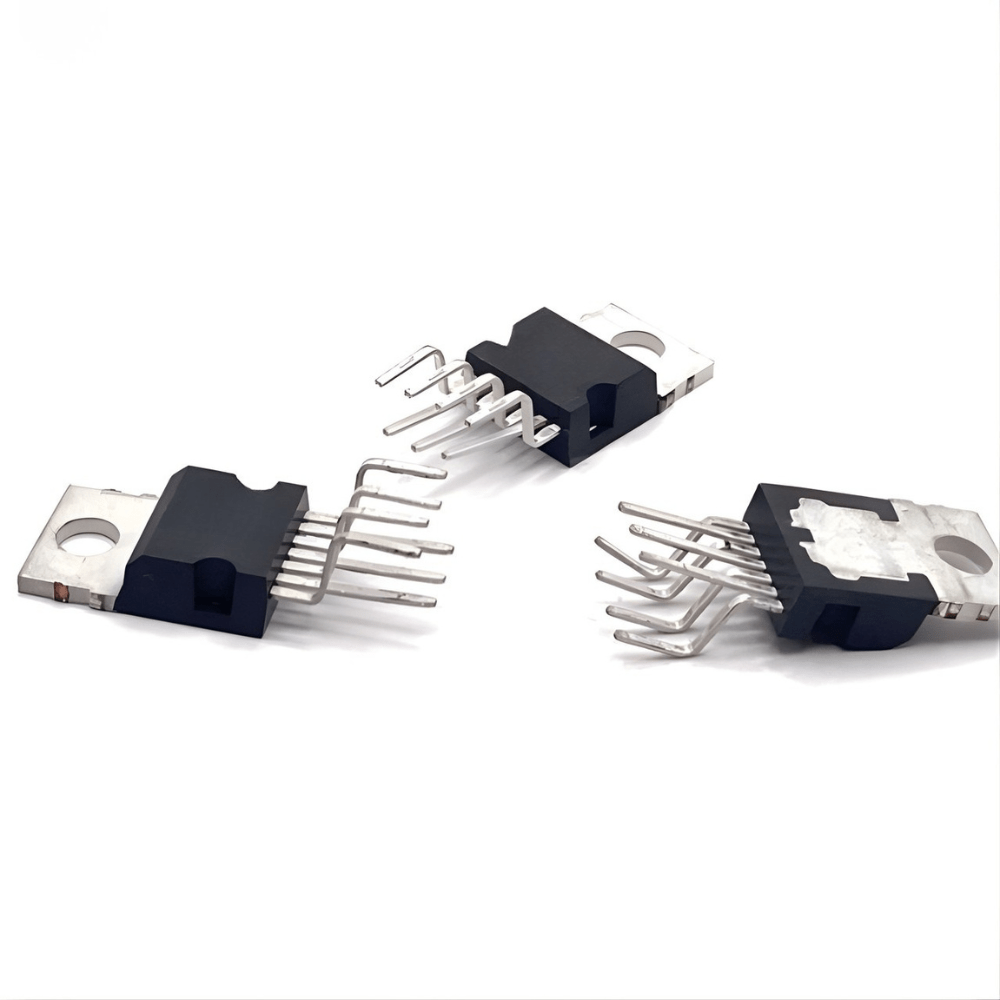

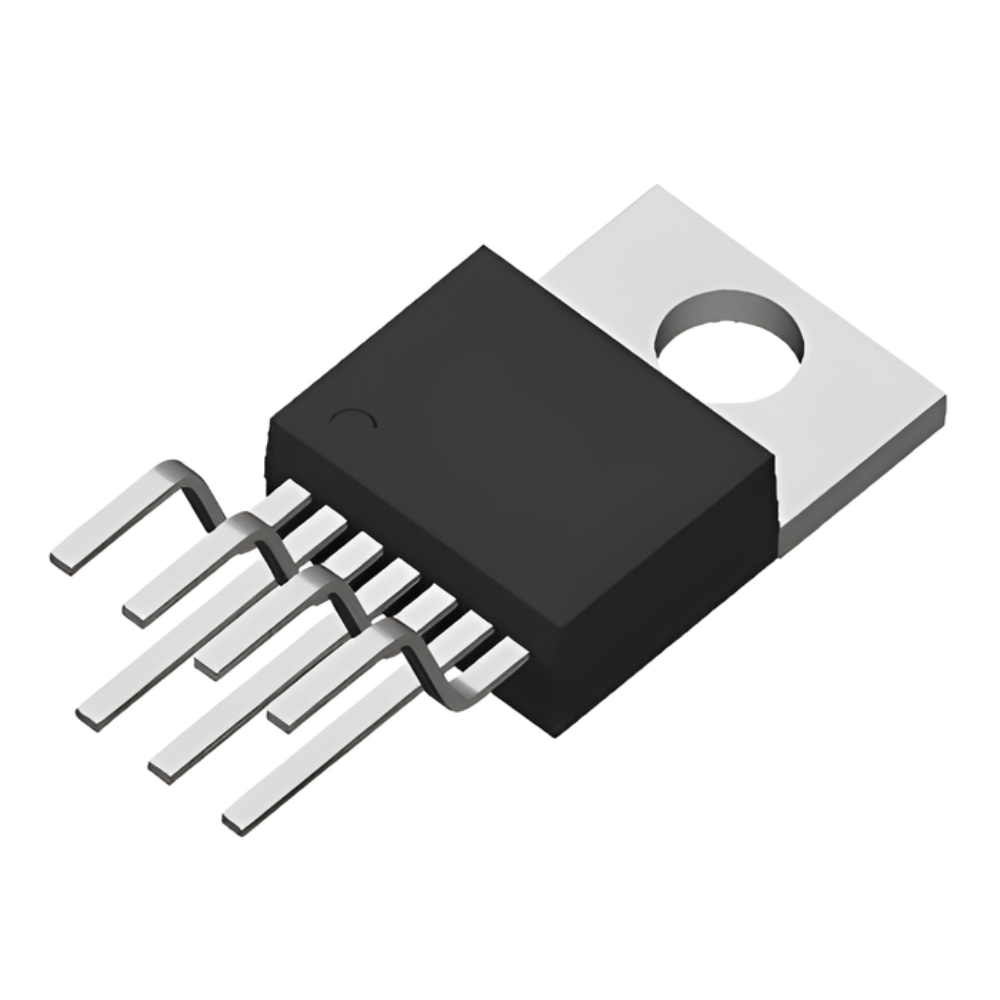

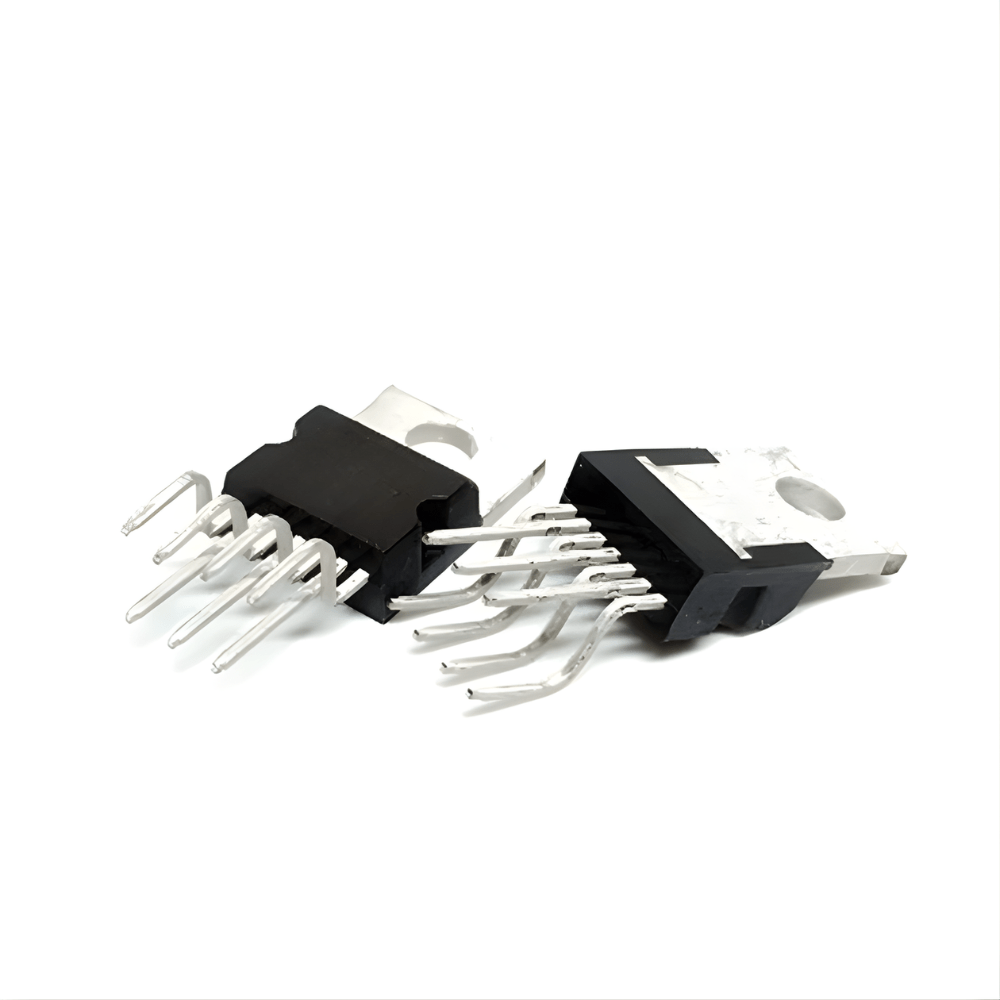

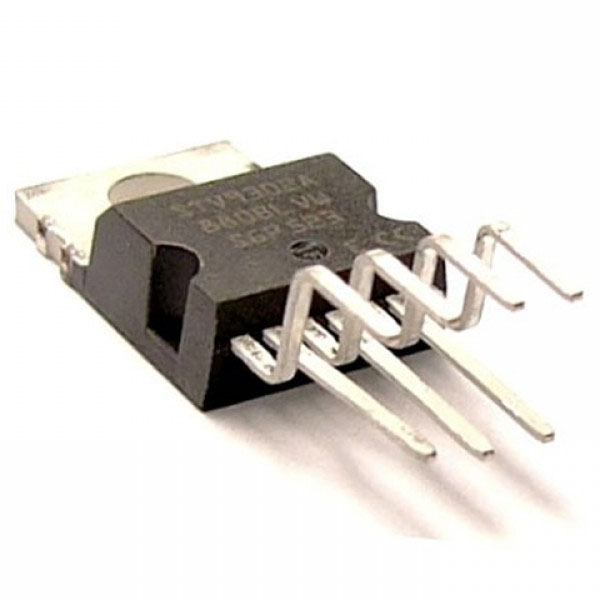

STV9302A IC

Description

The STV9302 is a vertical deflection booster designed for monitor and TV applications. This device, supplied with up to 32 V, provides up to 2 App output current to drive the vertical deflection yoke. The internal flyback generator delivers flyback voltages up to 60 V.

Datasheet available here.

Working :

The STV9302A IC is a multifunctional integrated circuit primarily used in CRT (Cathode Ray Tube) televisions or monitors. It operates as a power supply controller, managing various functions related to the power supply system.

Its key functionalities include:

1. Power Management: The STV9302A oversees the regulation of power supply voltages, ensuring stable and reliable power distribution within the television or monitor.
2. Flyback Converter Control: It controls the flyback converter, a key component in CRT devices that generates the high voltage required to power the cathode ray tube.
3. Horizontal and Vertical Deflection Control: It manages horizontal and vertical deflection, controlling the movement of the electron beam to create the images on the screen.
4. Protection Features: The IC includes protection mechanisms to prevent overvoltage or overcurrent situations, safeguarding the device from potential damage.
5. Control Interface: It interfaces with other circuitry and components within the CRT device, coordinating their functions for proper operation.

Overall, the STV9302A plays a crucial role in managing power distribution, controlling critical functions, and ensuring the proper functioning of CRT televisions or monitors.

Package Include:

1 x STV9302A IC
