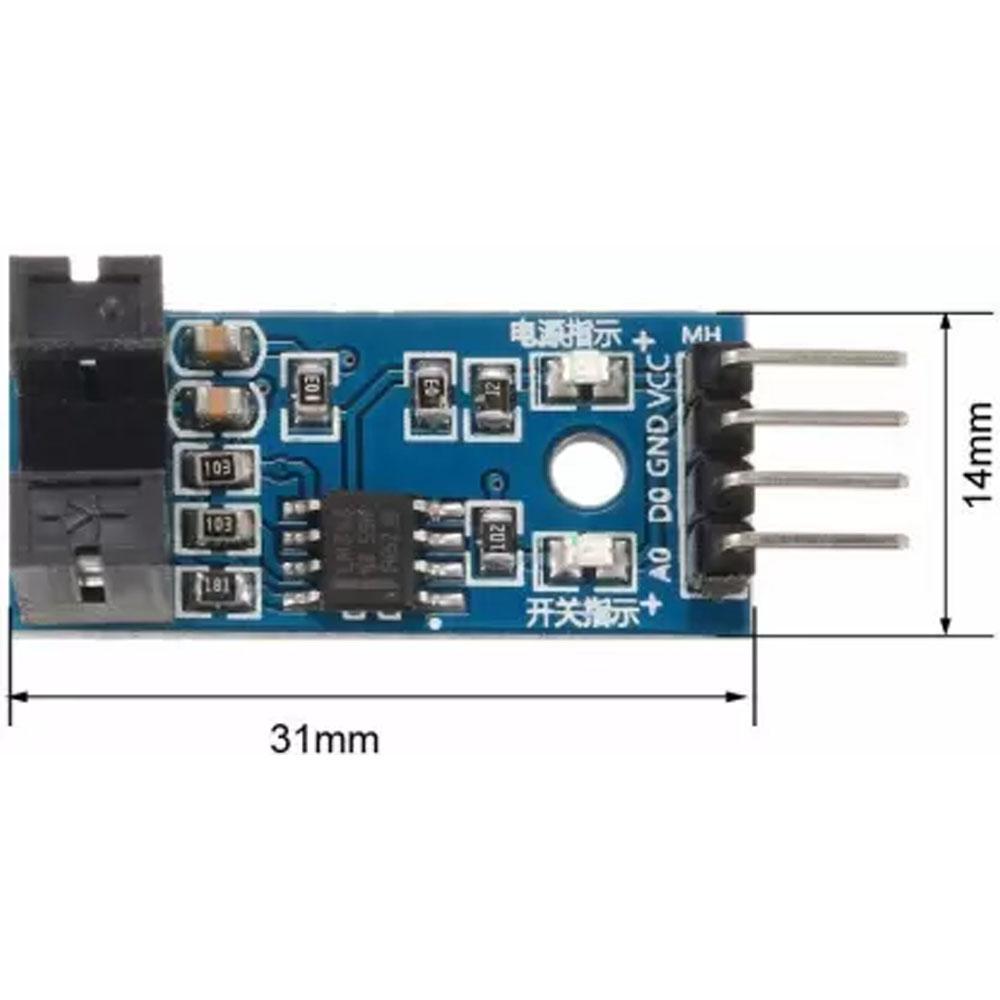

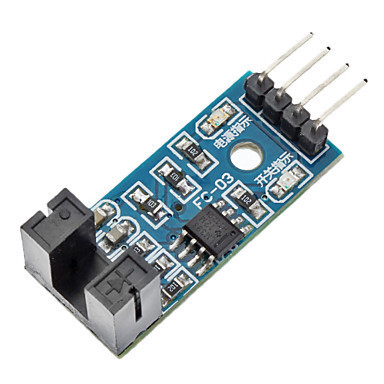

Speed Measuring Sensor Groove Coupler Module For Arduino

Description

This sensor is widely used in motor speed detection, pulse count, the position limit, etc. The DO output interface can be directly connected to a micro-controller IO port, if there is a block detection sensor, such as the speed of the motor encoder can detect. DO modules can be connected to the relay, limit switch, and other functions, it can also with the active buzzer module, compose alarm.

You may also look for:

• • Arduino board.
  • Raspberry pi .

Datasheet Speed Measuring Sensor Groove Coupler Module For Arduino

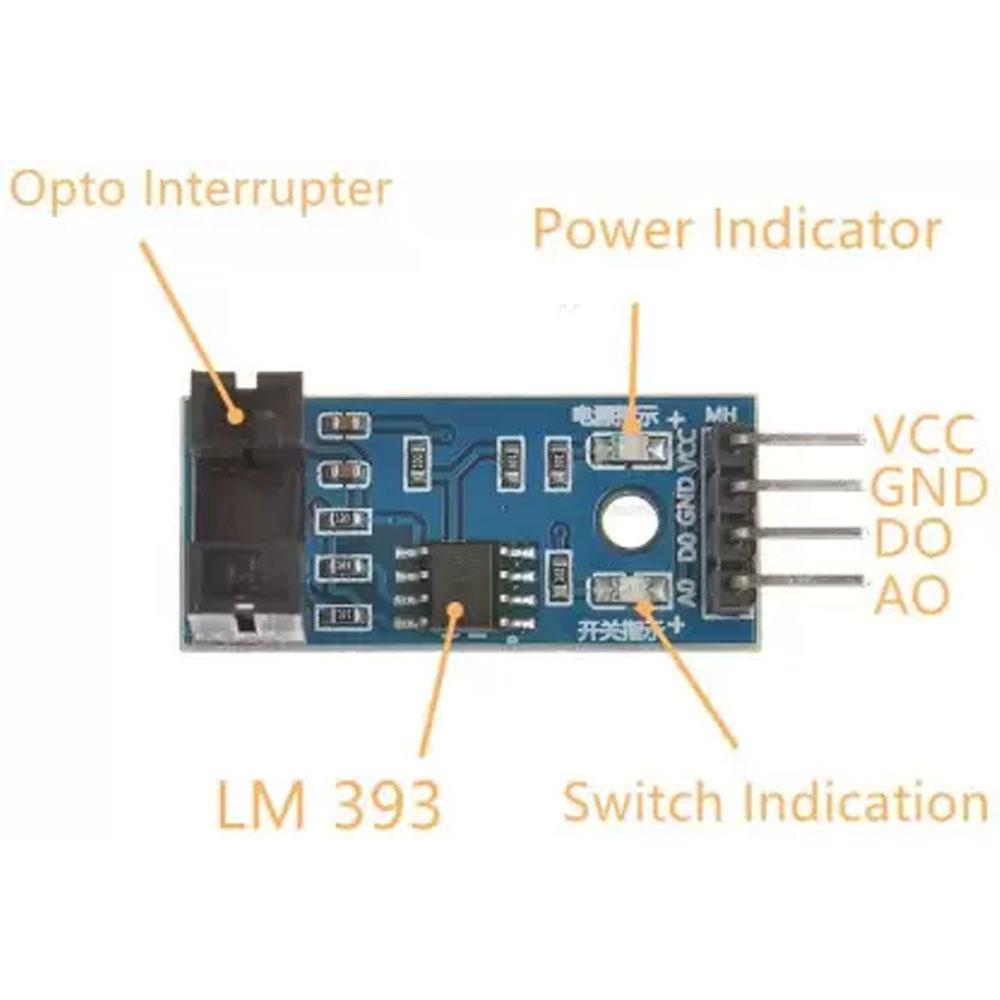

Pinouts:

• VCC Connect the positive 3.3 to 5 v power supply
• GND Connect power negative
• DO TTL switch signal output
• AO This module does not work

Packing Include:

1 x Motor Encoder Light Blocking Sensor Module
