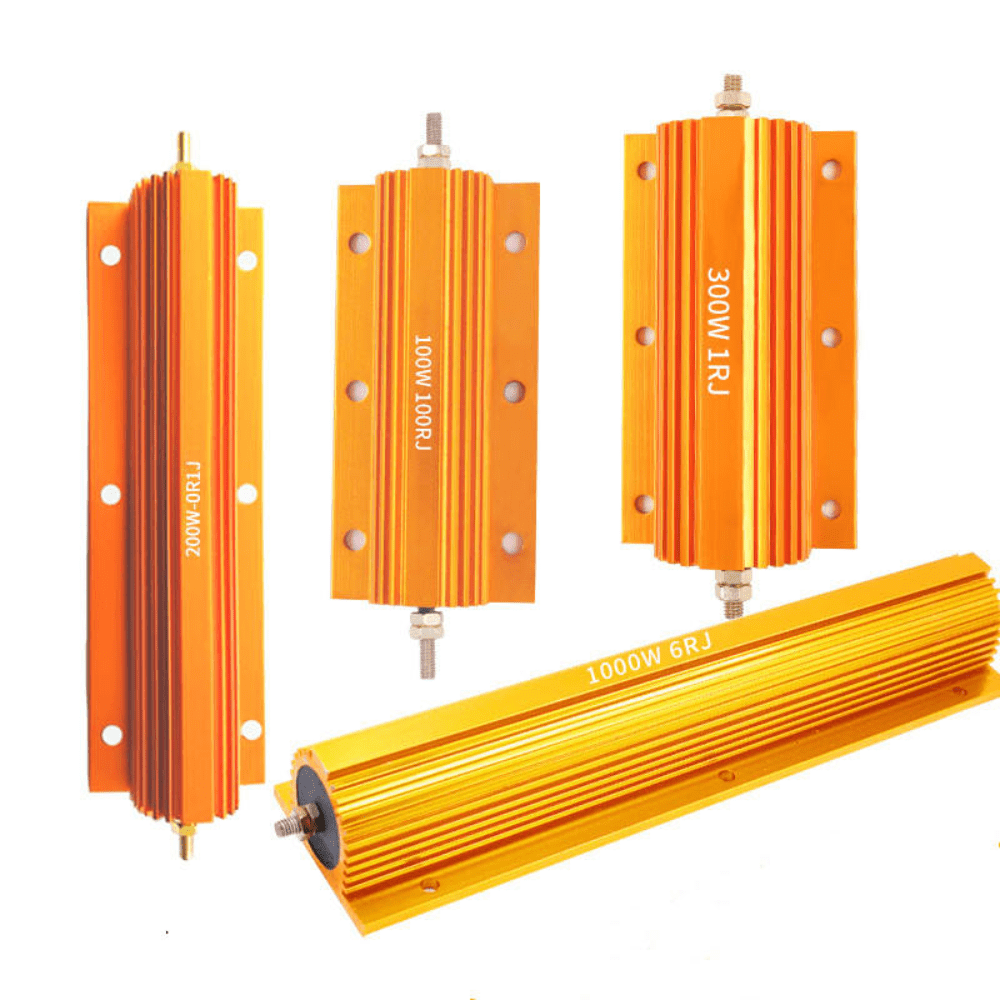

RX24 100W 2RJ 2E 2Ohms Golden Aluminum Metal Shell Case Wirewound Resistor
RX24 100W 2RJ 2E 2Ohms Golden Aluminum Metal Shell Case Wirewound Resistor
RX24 100W 2RJ 2E 2Ohms Golden Aluminum Metal Shell Case Wirewound Resistor
RX24 100W 2RJ 2E 2Ohms Golden Aluminum Metal Shell Case Wirewound Resistor
RX24 100W 2RJ 2E 2Ohms Golden Aluminum Metal Shell Case Wirewound Resistor
RX24 100W 2RJ 2E 2Ohms Golden Aluminum Metal Shell Case Wirewound Resistor
RX24 100W 2RJ 2E 2Ohms Golden Aluminum Metal Shell Case Wirewound Resistor

RX24 100W 2RJ 2E 2Ohms Golden Aluminum Metal Shell Case Wirewound Resistor

SKU: NoSKU
True
Current price is: 443.99
In Stock


Add to cart
Add to wishlist
Adros Systems
Sold By:

Adros Systems

40

This product has been added to 8 people'scarts.

Description

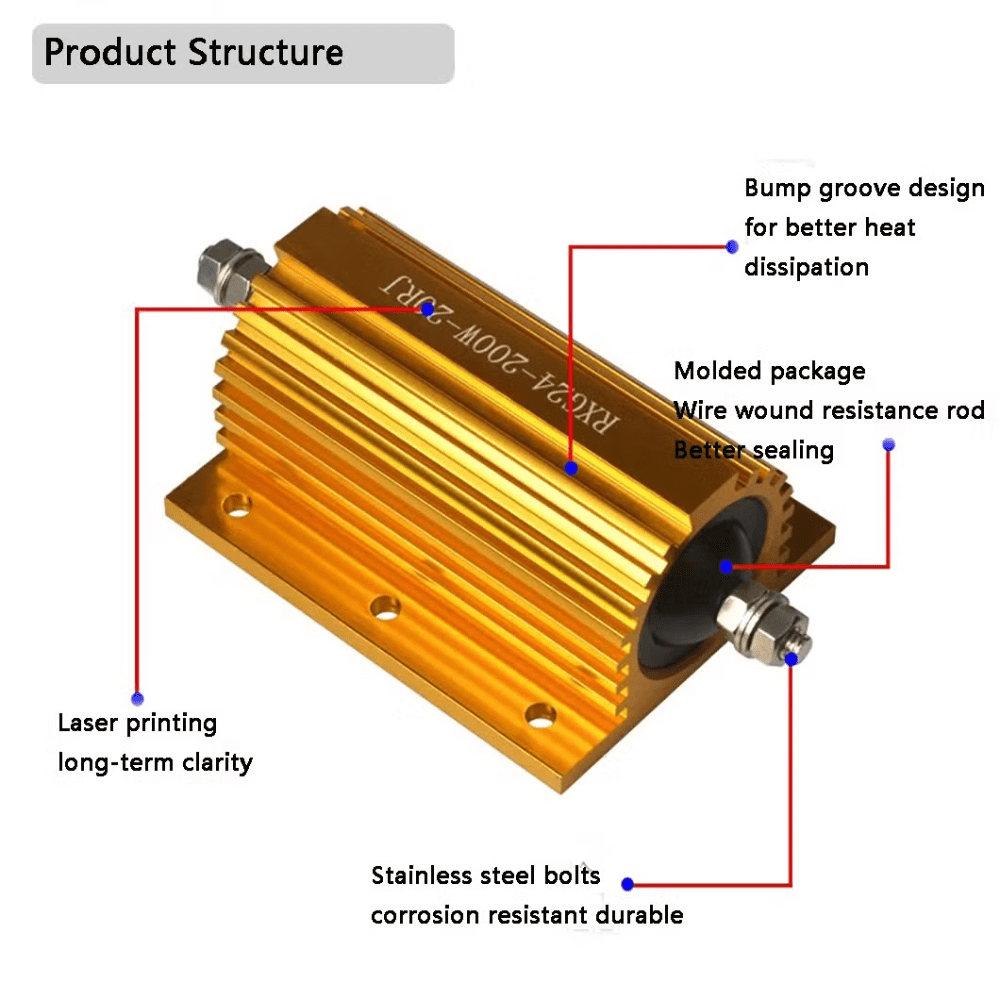

The core resistance core parts use insulated high temperature resistant ceramic rods as the resistance skeleton, and are made of high-quality high-quality alloy wire uniformly wound, plus a metal aluminum shell, and are potted with high insulation non-combustible electronic slurry or silicon-copper molding process, so that The shell and the core of the resistor are tightly combined to form a solid solid body, which is not affected by outside air, vibration and dust, and has high stability and thermal conductivity. Aluminum housing is made of high-quality industrial 6063 aluminum material, and has been anodized on the surface to achieve better appearance and better heat dissipation. The lead-out terminal adopts screw type or perforated end piece or welded high-temperature wire according to customer needs, which is convenient for customers to connect at will.

Technical Specifications:

Style Power Rating Resistance range(Ω) maximum working voltage(V) Heat dissipation plate area Weight(g)
With heat dissipation plate Without heat dissipation plate KAL NKAL KAL NKAL surface area thickness
(non-inductive) (non-inductive) (cm²) (mm)
RXG24 10w 10 8 0.02-6K 0.03-2.3K 245 180 415 1 6
RXG24 25w 25 13 0.012-15K 0.02-5.5K 500 300 535 1 11
RXG24 50w 50 10 0.01-40K 0.02-12K 1300 600 995 1 30
RXG24 80w 80 45 0.1-3.0K 0.1-3.0K 1500 1000 995 3 90
RXG24 100w 100 50 0.4-50K 0.12-25K 1900 1340 995 3 160
RXG24 250w 250 60 0.6-80K 0.15-40K 2500 1750 4765 3 480
RXG24 300w 300 70 0.6-90K 0.15-50K 2500 1750 4765 3 550
The RXG24 100W 100RJ 100E 100 Ohms Golden Aluminum Metal Shell Case Wirewound Resistor is a high-power, chassis-mount resistor designed for applications requiring efficient heat dissipation and durable, stable performance under heavy loads. The “G” in the model number RXG24 indicates a specific series or a slightly different manufacturing process compared to the common RX24, but both share similar characteristics and applications.
Specifications:
  • Rated Power: 100W
  • Tolerance: ±5% (indicated by ‘J’ or ‘E’ in the part number)
  • Type: Wirewound construction
  • Housing Material: Aluminium alloy with heat dissipation grooves
  • Installation: Chassis/Heatsink mount (through-hole termination)
  • Colour: Gold
Features:
  • Efficient Heat Dissipation: The robust aluminium shell provides excellent thermal conductivity, ideal for mounting onto a cooling plate or heatsink to manage high wattage loads effectively.
  • Durable Construction: Features a fully welded structure and professional potting with non-flammable inorganic material, which ensures high insulation capacity, moisture resistance, anti-vibration performance, and explosion protection.
  • Stable Performance: The wirewound design, often using constantan or nickel-chromium alloy resistance wire, ensures high precision, stability, and low noise compared to other resistor types.
  • Versatile Design: Designed for use in harsh industrial control environments, it is resistant to corrosion and mechanical stressors.
Applications:
The RXG24 resistor is widely used in circuits and equipment that require reliable, high-power current control and load regulation.
  • Power Supplies: Used for testing, aging benches, and power regulation.
  • Frequency Converters/Inverters: Integrated into drive systems for managing power.
  • Automotive Systems: Commonly used to solve issues like LED turn signal hyper flash or fault alarms in vehicles with on-board computers (e.g., BMW, Mercedes-Benz).
  • Audio Equipment: Applied in audio frequency dividers and arena audio systems.
  • Automation/Servo Systems: Essential for precise control in automation and elevator systems.

Packing List:

1 x RXG24 Golden Aluminium Metal Shell Case Wirewound Resistor
