RX24 100W 12RJ 12E 12Ohms Golden Aluminum Metal Shell Case Wirewound Resistor

None

RX24 100W 12RJ 12E 12Ohms Golden Aluminum Metal Shell Case Wirewound Resistor

Rated 3.50 out of 5 based on 2 customer ratings

SKU: 256.5

True

In Stock

Add to wishlist

Seller:

None

Rated 3.65 out of 5 based on 40 customer ratings

Brand: Apple

This product has been added to 8 people'scarts.

Free Shipping & Returns on this item

Delivery within 3-5 working days

Money Back Guarantee

Description

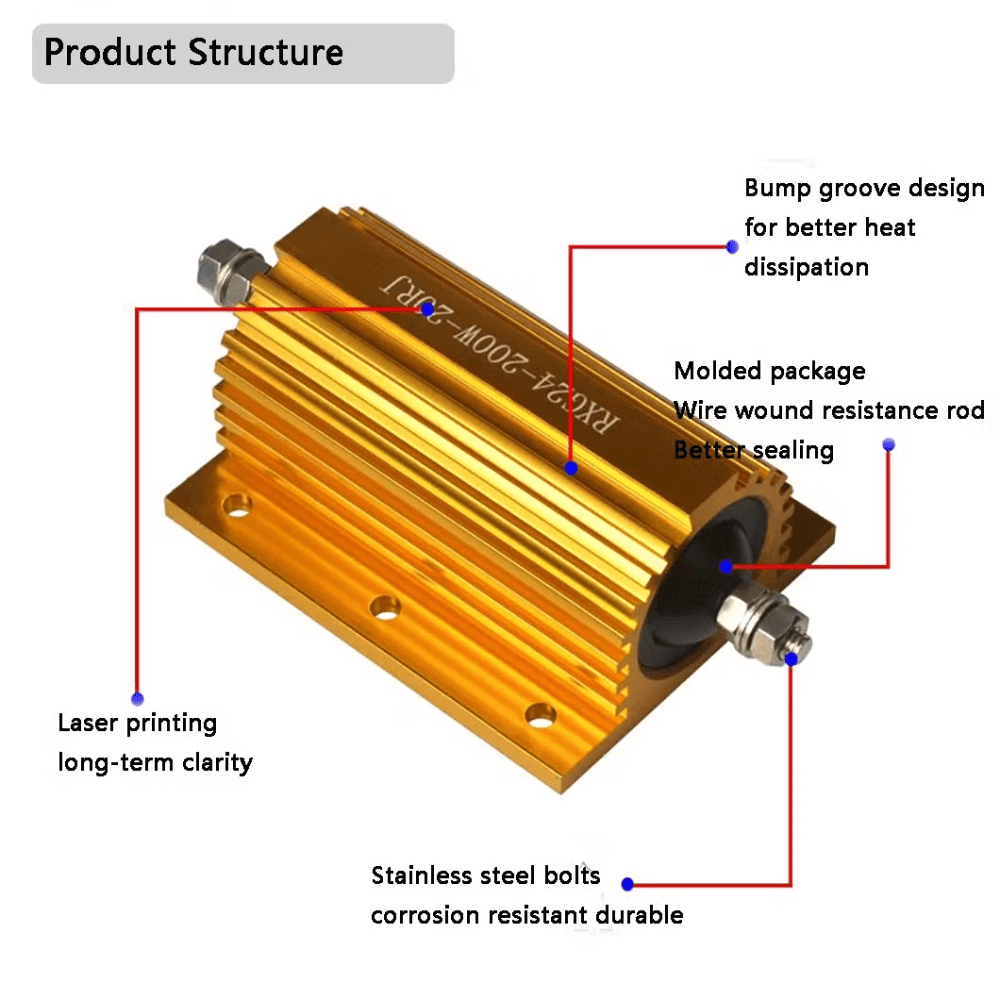

The core resistance core parts use insulated high temperature resistant ceramic rods as the resistance skeleton, and are made of high-quality high-quality alloy wire uniformly wound, plus a metal aluminum shell, and are potted with high insulation non-combustible electronic slurry or silicon-copper molding process, so that The shell and the core of the resistor are tightly combined to form a solid solid body, which is not affected by outside air, vibration and dust, and has high stability and thermal conductivity. Aluminum housing is made of high-quality industrial 6063 aluminum material, and has been anodized on the surface to achieve better appearance and better heat dissipation. The lead-out terminal adopts screw type or perforated end piece or welded high-temperature wire according to customer needs, which is convenient for customers to connect at will.

Technical Specifications:

Style	Power Rating		Resistance range(Ω)		maximum working voltage(V)		Heat dissipation plate area		Weight(g)
	With heat dissipation plate	Without heat dissipation plate	KAL	NKAL	KAL	NKAL	surface area	thickness
	With heat dissipation plate	Without heat dissipation plate	KAL	(non-inductive)	KAL	(non-inductive)	(cm²)	(mm)
RXG24 10w	10	8	0.02-6K	0.03-2.3K	245	180	415	1	6
RXG24 25w	25	13	0.012-15K	0.02-5.5K	500	300	535	1	11
RXG24 50w	50	10	0.01-40K	0.02-12K	1300	600	995	1	30
RXG24 80w	80	45	0.1-3.0K	0.1-3.0K	1500	1000	995	3	90
RXG24 100w	100	50	0.4-50K	0.12-25K	1900	1340	995	3	160
RXG24 250w	250	60	0.6-80K	0.15-40K	2500	1750	4765	3	480
RXG24 300w	300	70	0.6-90K	0.15-50K	2500	1750	4765	3	550

The RXG24 100W 100RJ 100E 100 Ohms Golden Aluminum Metal Shell Case Wirewound Resistor is a high-power, chassis-mount resistor designed for applications requiring efficient heat dissipation and durable, stable performance under heavy loads. The “G” in the model number RXG24 indicates a specific series or a slightly different manufacturing process compared to the common RX24, but both share similar characteristics and applications.

Specifications:

Rated Power: 100W
Tolerance: ±5% (indicated by ‘J’ or ‘E’ in the part number)
Type: Wirewound construction
Housing Material: Aluminium alloy with heat dissipation grooves
Installation: Chassis/Heatsink mount (through-hole termination)
Colour: Gold

Features:

Efficient Heat Dissipation: The robust aluminium shell provides excellent thermal conductivity, ideal for mounting onto a cooling plate or heatsink to manage high wattage loads effectively.
Durable Construction: Features a fully welded structure and professional potting with non-flammable inorganic material, which ensures high insulation capacity, moisture resistance, anti-vibration performance, and explosion protection.
Stable Performance: The wirewound design, often using constantan or nickel-chromium alloy resistance wire, ensures high precision, stability, and low noise compared to other resistor types.
Versatile Design: Designed for use in harsh industrial control environments, it is resistant to corrosion and mechanical stressors.

Applications:

The RXG24 resistor is widely used in circuits and equipment that require reliable, high-power current control and load regulation.

Power Supplies: Used for testing, aging benches, and power regulation.
Frequency Converters/Inverters: Integrated into drive systems for managing power.
Automotive Systems: Commonly used to solve issues like LED turn signal hyper flash or fault alarms in vehicles with on-board computers (e.g., BMW, Mercedes-Benz).
Audio Equipment: Applied in audio frequency dividers and arena audio systems.
Automation/Servo Systems: Essential for precise control in automation and elevator systems.

Packing List:

1 x RXG24 Golden Aluminium Metal Shell Case Wirewound Resistor
