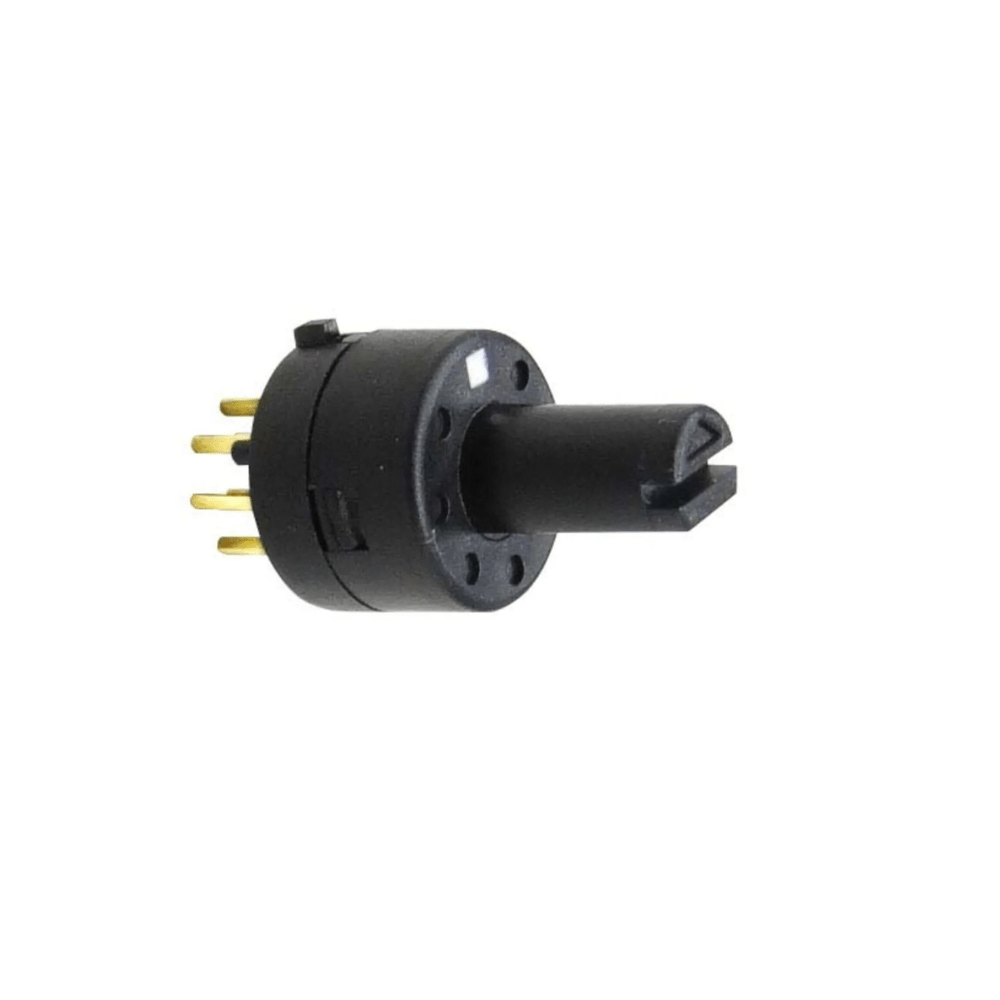

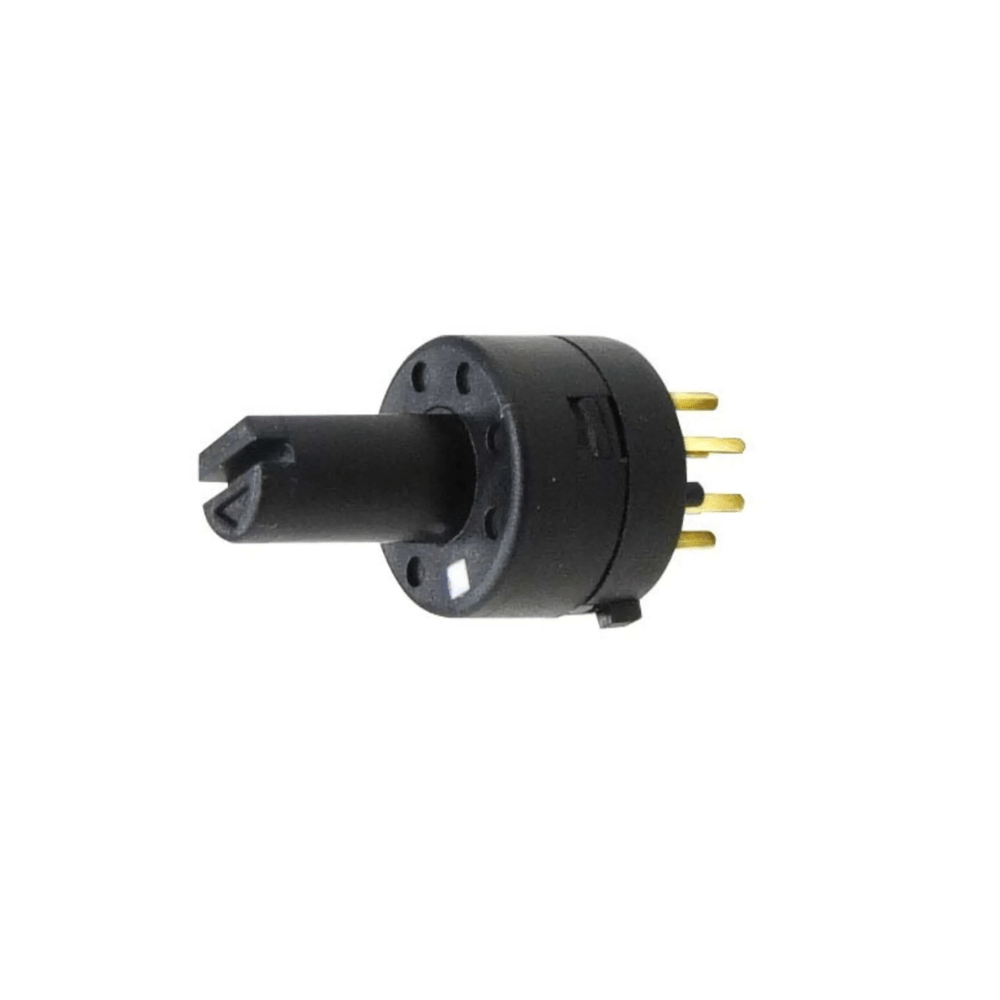

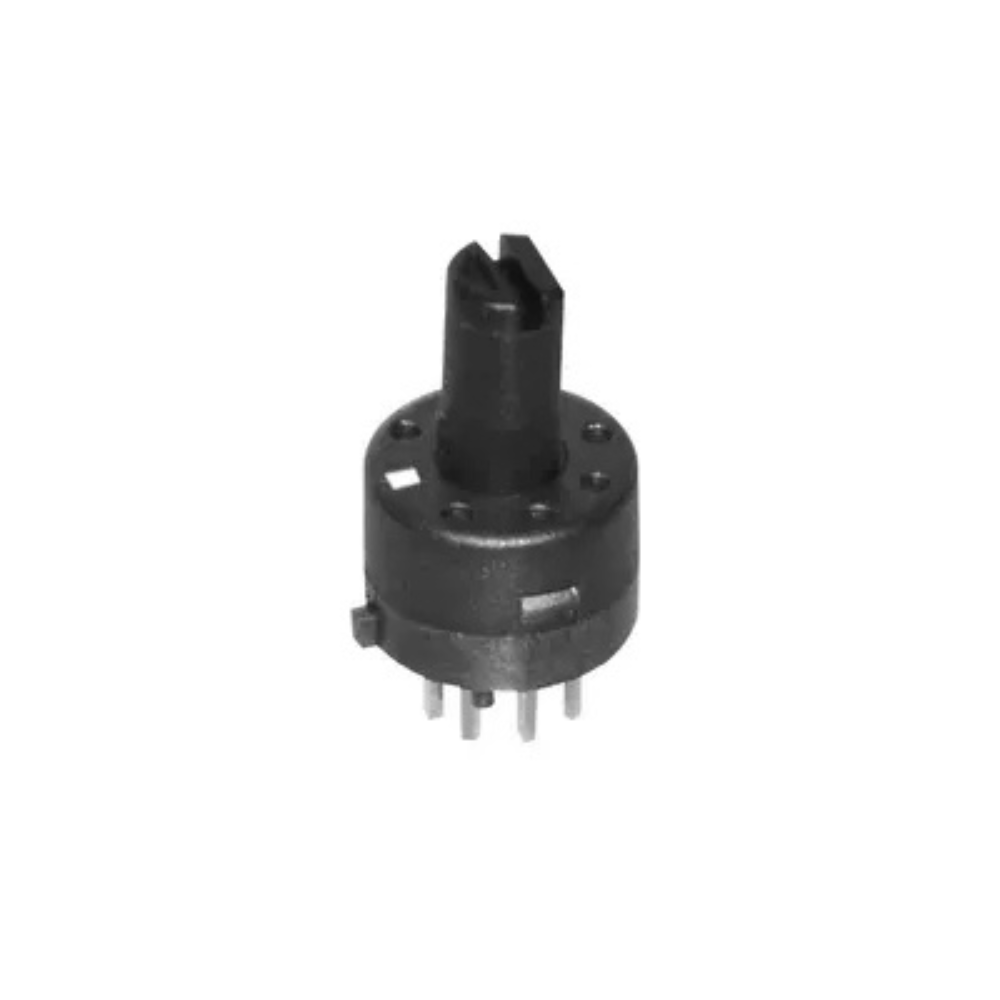

Rotary Switch MR-13

Description

Totally sealed construction with internal o-ring, gasket between base and housing, and insert-molded terminals, gives protection for automated processing techniques. Detent mechanism, with its spring-operated steel ball, gives distinct feel and crisp actuation for accurate switch setting. Subminiature size and compact body contributes to high density mounting. Bifurcated, self-wiping contact mechanism provides unequalled logic-level reliability and smoother, positive detent actuation.
Crimped bracket legs ensure secure PCB mounting and prevent dislodging during automated wave soldering. Molded-in terminals prevent entry of flux and other contaminants.
.100” x .100” (2.54mm x 2.54mm) terminal spacing conforms to standard PC board grid spacing.

Distinctive Characteristics
• Power Control Equipment
• Measuring Devices
• Telecommunication Equipment
• Medical Equipment
• Teaching Pendant

Applications

• Measuring Devices
• Telecommunication Equipment
• Medical Equipment
• Teaching Pendant

Package Includes:

1 x Rotary Switch MR-13
