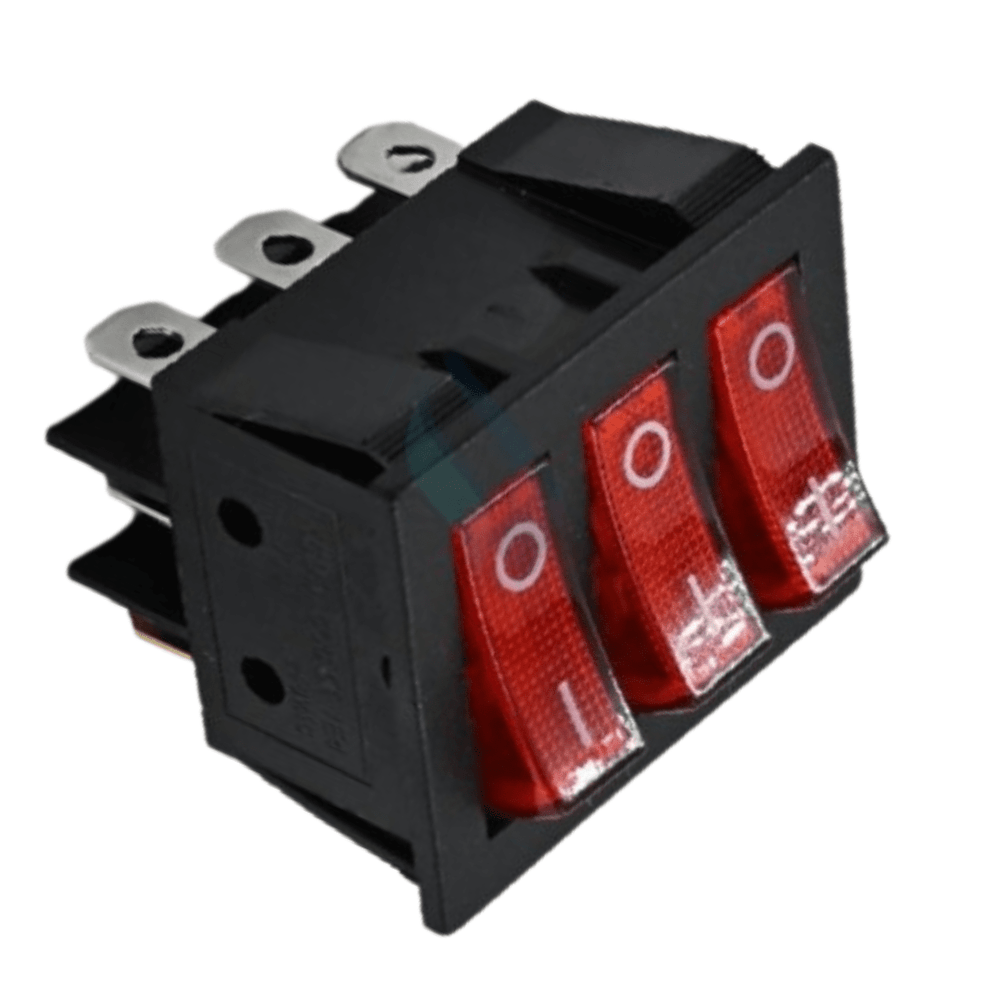

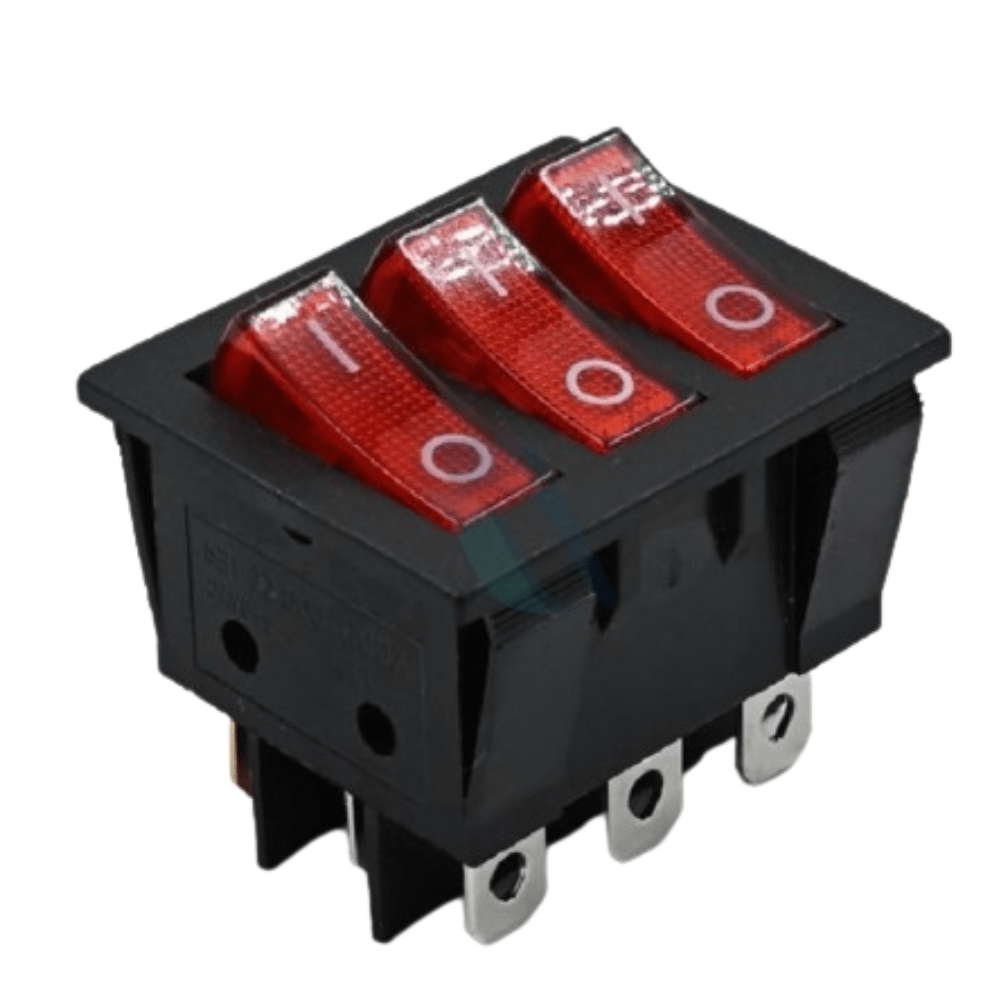

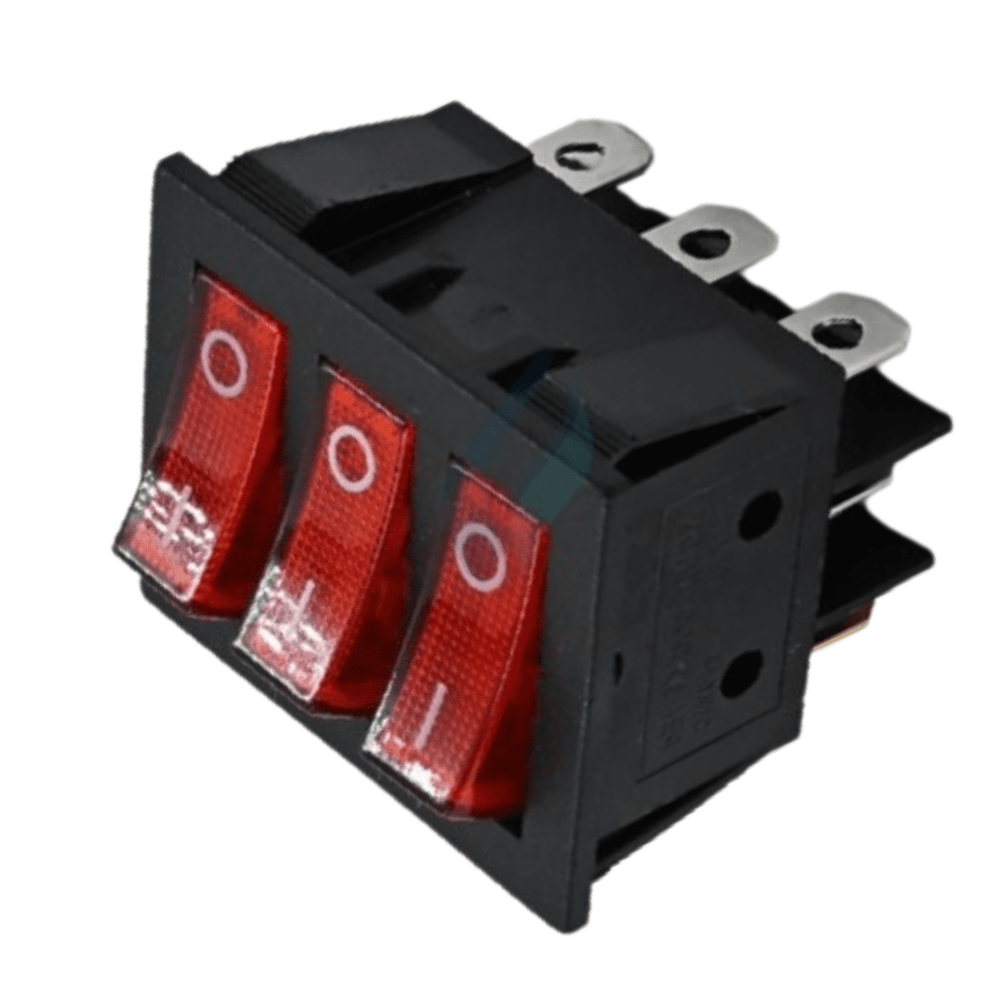

ROCKER SWITCH-KCD3-301-3N Three Pole Three Throw ON OFF Illuminated

Description

he ROCKER SWITCH KCD3-301-3N is a robust three-pole, three-throw (3P3T) illuminated switch designed for ON/OFF functions. With its ergonomic rocker design, it offers user-friendly control. The illumination feature enhances visibility, indicating the switch’s status. Ideal for various applications, this reliable switch provides seamless management of electrical circuits, ensuring efficient and illuminated operation in three different positions.

Features/Specs:

1. Model Number: KCD3-301-3N
2. Material: Copper
3. LED Indication: Yes
4. Switch Type: Rocker Switch
5. Current Rating: 16A 250V/20A 125V
6. Insulation Resistance: 100M ohm min,100V DC
7. Contact Resistance: 100m ohm max
8. Operating Temperature: -30°C ~ +85°C
9. Life Cycle: 100000/300000
10. Operating Force: A:130gf B:180gf C:250gf
11. Stroke: 0.25+-0.1mm

Application:

1. DC Motors in Robotics
2. Car and Motorcycle DC Motors
3. DC Motors in Industrial Machines
4. Water Dispensers, etc.

Package Includes:

1 x ROCKER SWITCH-KCD3-301-3N Three Pole Three Throw ON OFF Illuminated
