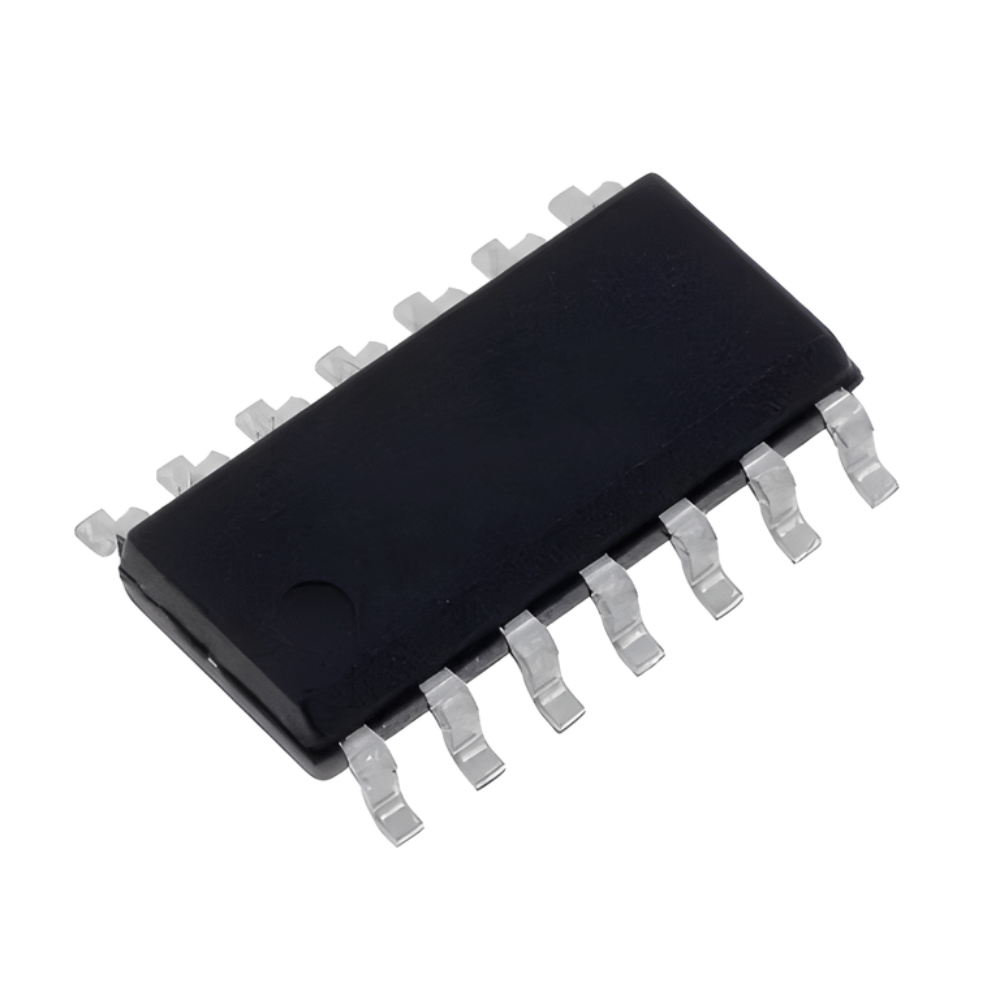

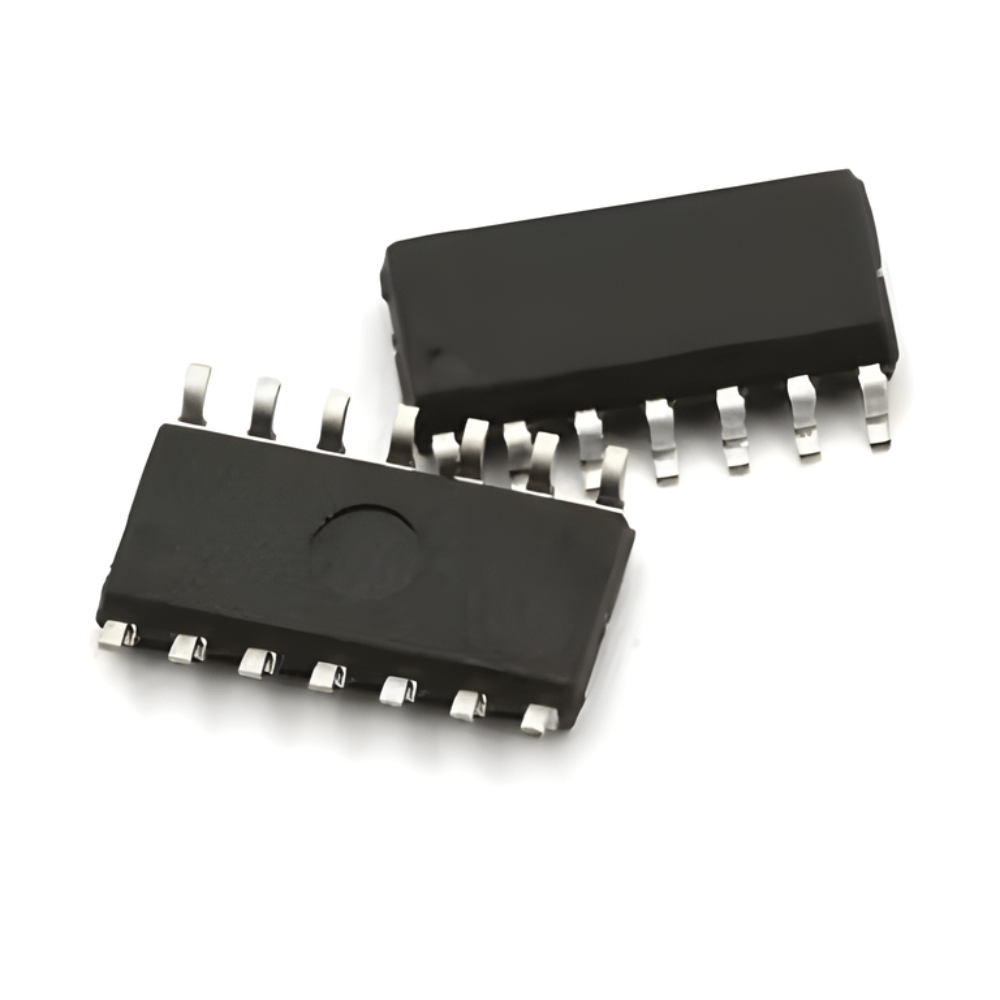

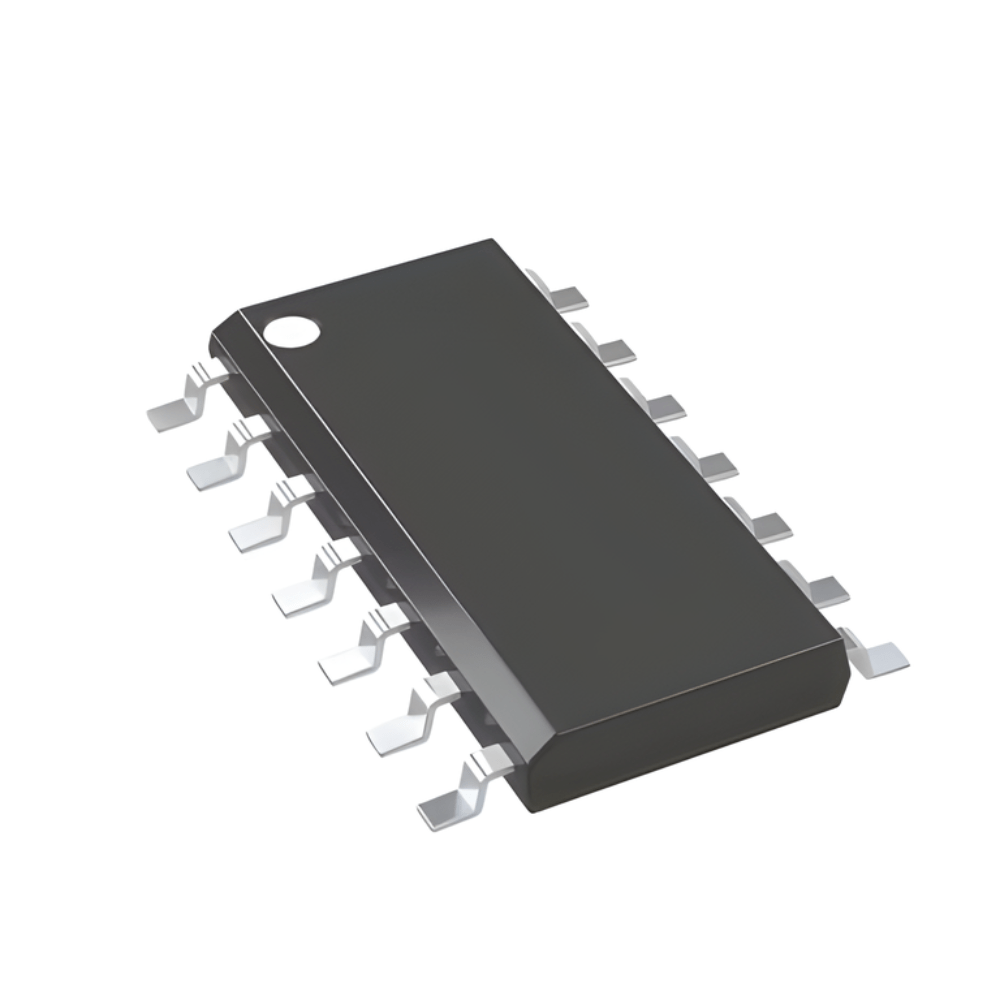

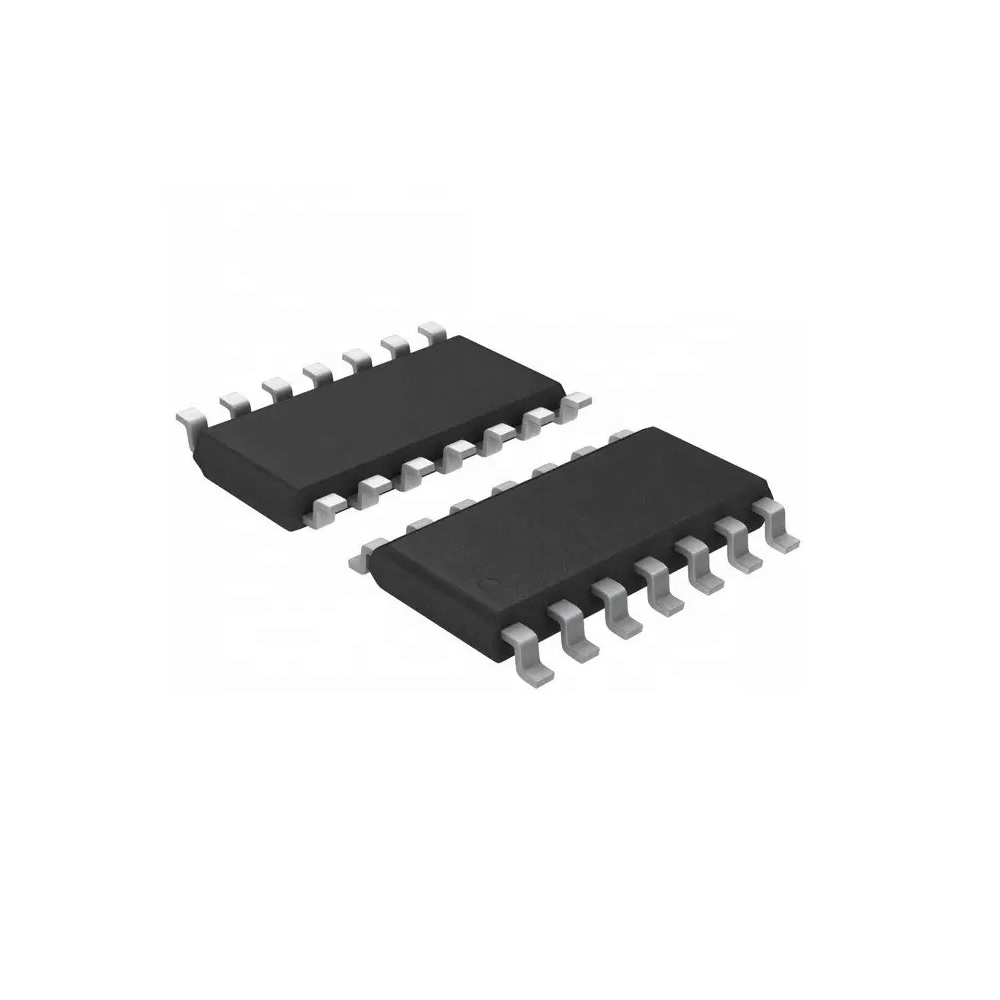

PIC16F1503-I/SL SMD IC (Original)

Description

The PIC16F1503-I/SL is a 14-pin/8-bit Flash Microcontroller. This family of devices contain an enhanced mid-range 8-bit CPU core. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has Overflow and underflow reset capability. Direct, indirect and relative addressing modes are available. Two file select registers (FSRs) provide the ability to read program and data memory. During interrupts, certain registers are automatically saved in shadow registers and restored when returning from the interrupt. The flash program memory is readable and writable during normal operation over the full VDD range. Program memory is indirectly addressed using special function registers (SFRs).

Feature:

• Enhanced mid-range core with 49 instructions and 16 stack levels
• Flash program memory with self-read/write capability
• High endurance flash memory (HEF)
• Internal 16MHz oscillator
• 4x Standalone PWM
• Complementary waveform generator (CWG)
• Numerically controlled oscillator (NCO)
• 2x Configurable logic cell (CLC)
• Integrated temperature indicator
• 25mA Source/sink current I/O
• 2x 8-bit Timers (TMR0/TMR2)
• Extended watchdog timer (WDT)
• Enhanced power-on/off-reset
• Low-power brown-out reset (LPBOR)
• Programmable brown-out reset (BOR)
• In-circuit serial programming (ICSP)
• In-circuit debug using a debug header

Applications:

Industrial, Automotive

Package Include:

1 x PIC16F1503-I/SL SMD IC
