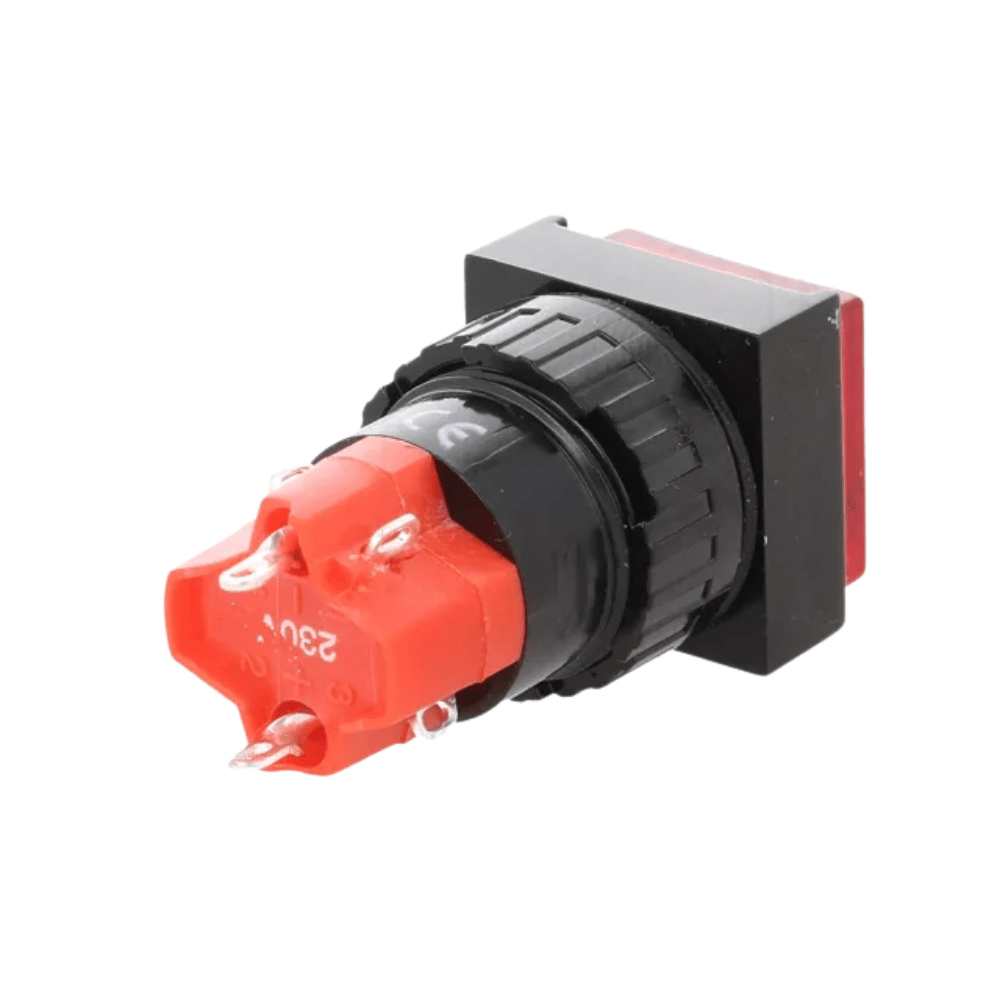

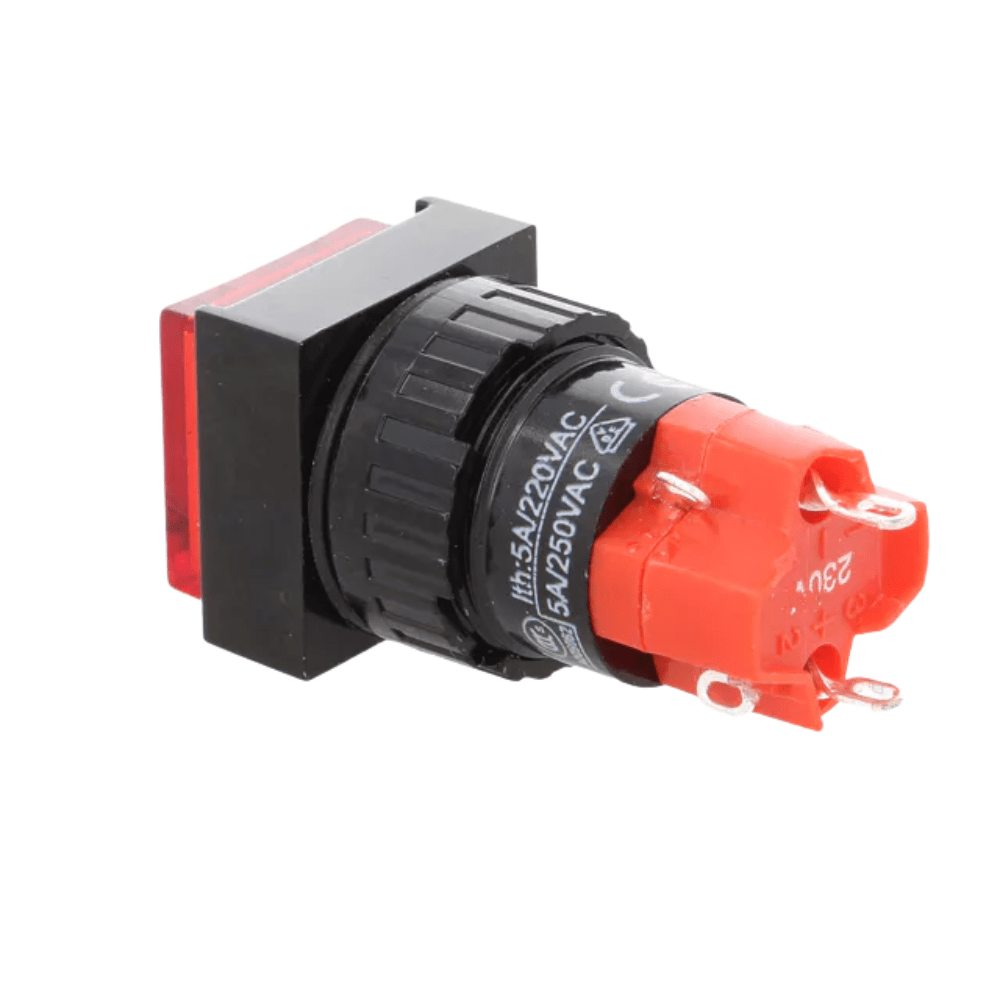

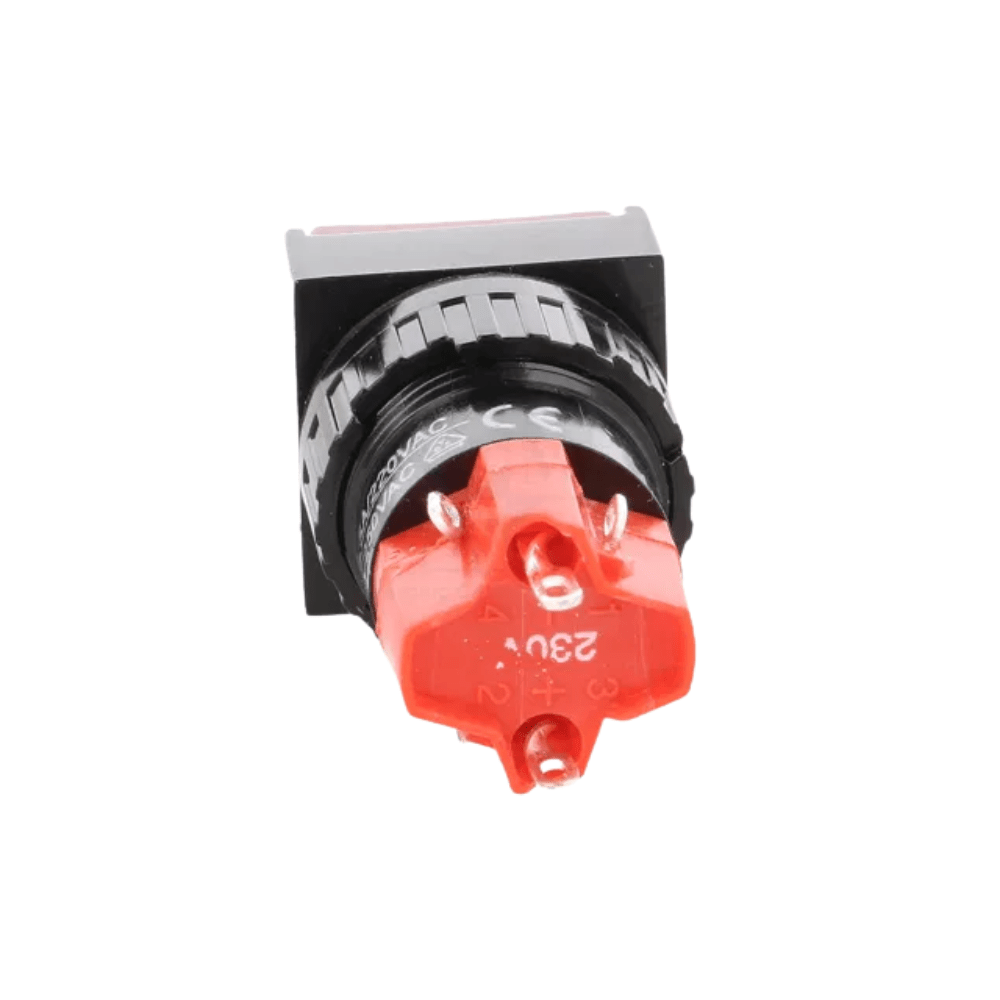

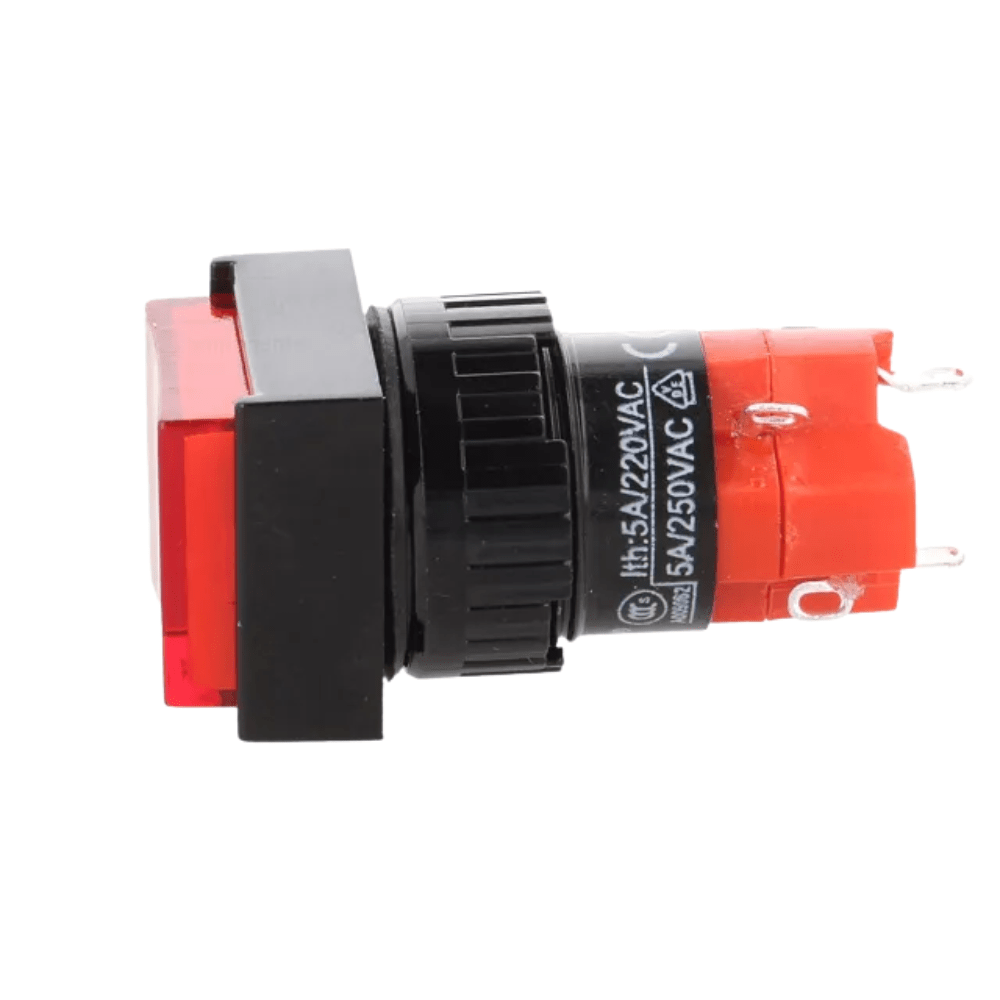

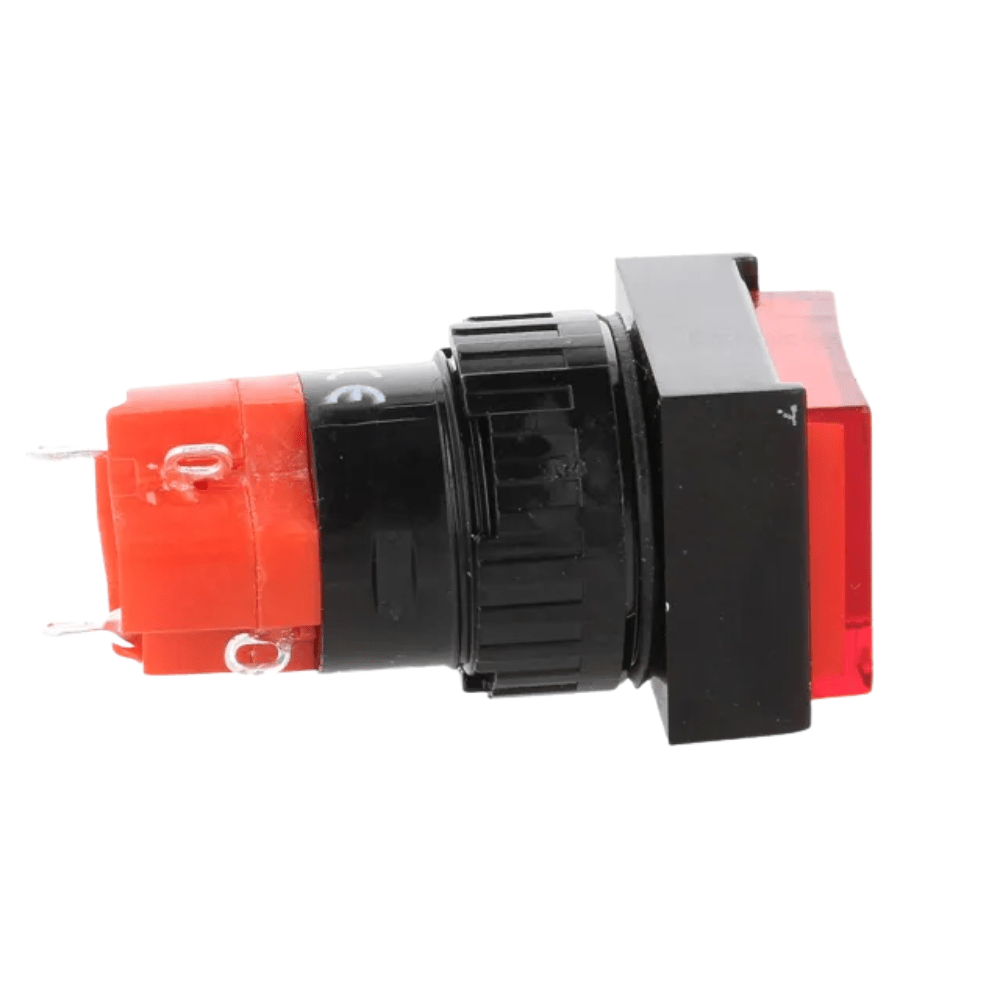

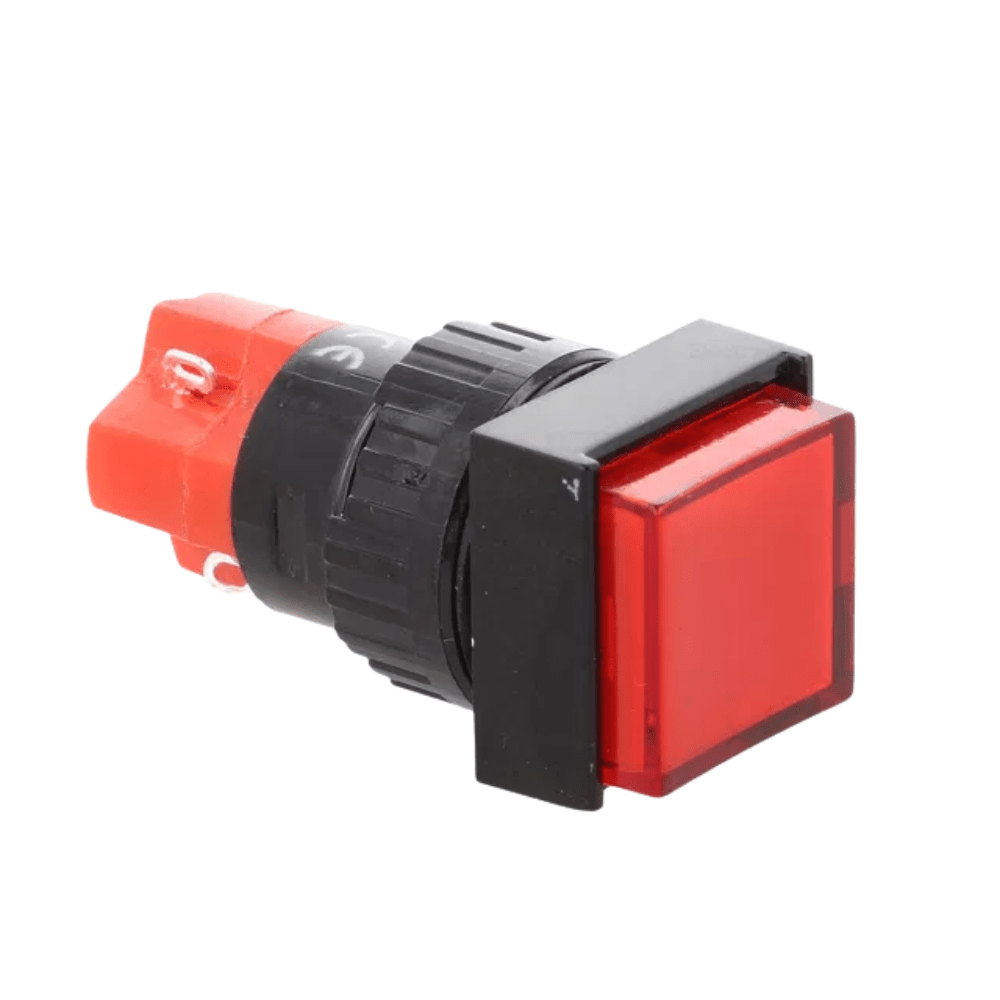

ONPOW 16mm Square RED PUSH ON PUSH OFF Button Switch
ONPOW 16mm Square RED PUSH ON PUSH OFF Button Switch
ONPOW 16mm Square RED PUSH ON PUSH OFF Button Switch
ONPOW 16mm Square RED PUSH ON PUSH OFF Button Switch
ONPOW 16mm Square RED PUSH ON PUSH OFF Button Switch
ONPOW 16mm Square RED PUSH ON PUSH OFF Button Switch
ONPOW 16mm Square RED PUSH ON PUSH OFF Button Switch

ONPOW 16mm Square RED PUSH ON PUSH OFF Button Switch

SKU: 6.1
True
Current price is: 392
In Stock


Add to cart
Add to wishlist
Adros Systems
Sold By:

Adros Systems

40

This product has been added to 8 people'scarts.

Description



Part number: LAS1F-11/LED color/LED voltage
Diameter: 16mm
Contact configuration: 1NO 1NC(11) / 2NO2NC(22)
Operation type: Momentary / Latching (Z)
illuminate
LED color: Red (other options: Blue, Green, Yellow, Orange, white)
LED voltage: 12V (other options: 6V, 24V, 110V, 220V)
Front shape:  Square(F)
IP degree: IP40 / IP67(FP)
Approval:CE, CCC, UL, VDE, ROHS, REECH

Switch Ratings

Thermal Current lth 5A
Rated Voltage 24V 125V(110V) 250V(220V)
Direct Current 2A 0.2A 0.1A
Alternating current P.F=1 5A 3A
P.F=0.7 3A 2A

Lamp ratings

Lamp type AC LED Lamp(Standard) Neon Lamp
Rated voltage AC/DC 6V AC/DC 12V AC/DC 24V AC/DC 110V AC/DC 220V
AC/DC 110V AC/DC 220V
Covers color Red,Green,Yellow,Orange,Blue,White Red,Green
Life About  40,000 hours About  20,000 hours

Note:the lamp contains a current-limiting resistor inside and doesn’t need external connection.
DC LED lamp,dual-color LED lamp and other voltages can be customized.

Specifications

Operating Temperature -25ºC~+55ºC(no freezing)
Operating Humidity 48~85%RH(no condensation)
Contact Material -sliver
-sliver alloy
-gold-clad sliver,
Clad ding thickness is 3μm
Contact Pressure About 0.3N(about 30g)
Contact Resistance ≤50mΩ
Insulation Resistance ≥100mΩ
Rated Insulation Voltage 250V,AC/DC
Dielectric strength Between contact and lamp terminals: 2000V,AC 50Hz,1min
Between terminal of the same pole: 1000V,AC 50Hz,1min
Between terminal of the different pole: 2000V,AC 50Hz,1min
Vibration Rasistance 50Hz,amplitude 1.2mmP-P
Shock Rasistance ≥10g
Life Mechnical Momentary Type 1,000,000times
Alternate,Selector and Key-lock Type 500,000times
Electrical 50, 000times
Terminal Diameter of welded wire:2*0.8mm max
Area of copper wire:0.75mm²
Solder Heat Resistance 230ºC(no more than 3 second)
Operating Force 200gf~500gf(According to the quantity of switch units)
Operating Travel ≈3mm(pushbutton)
