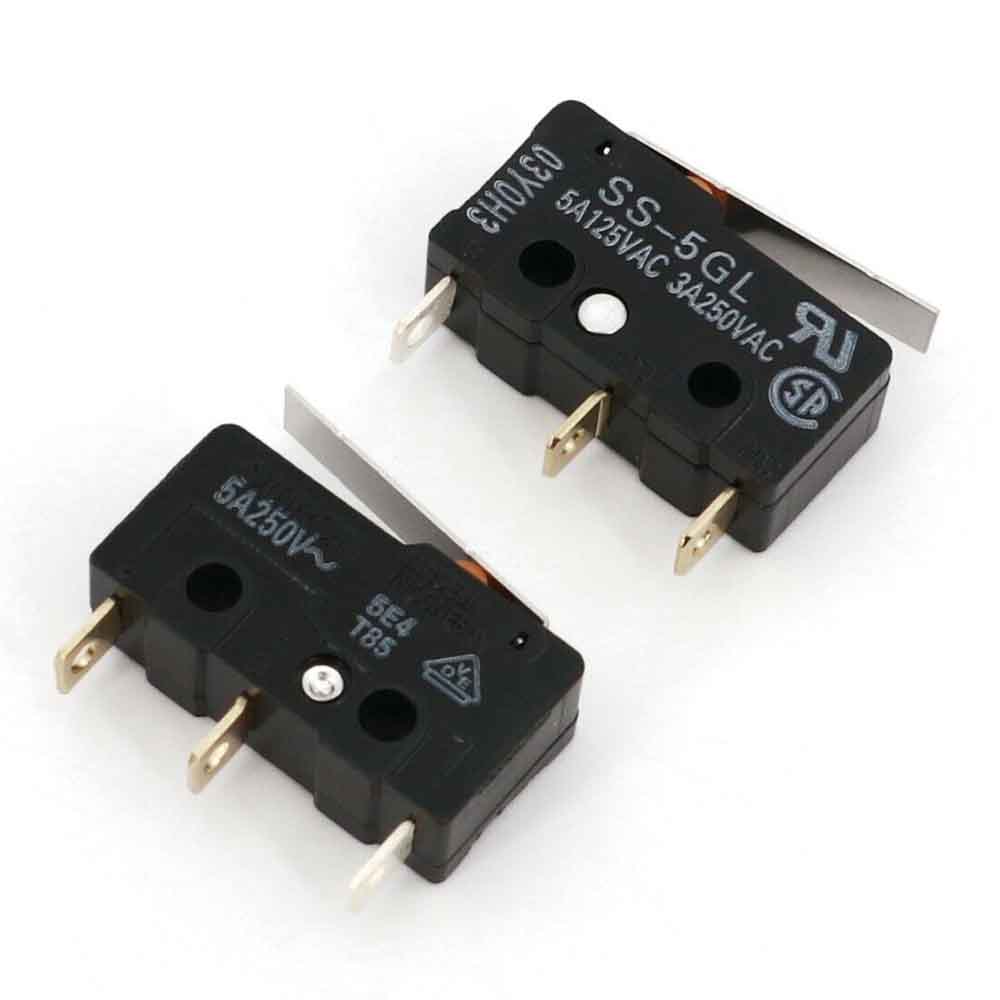

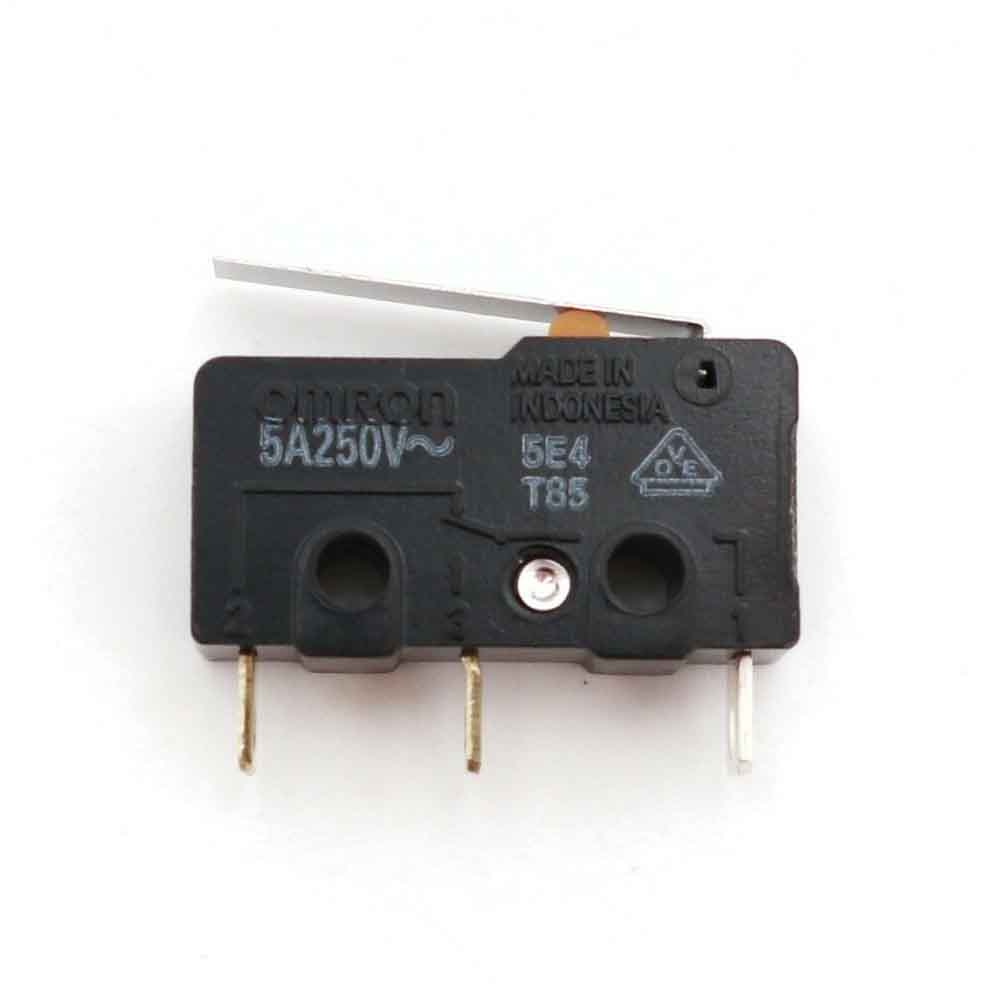

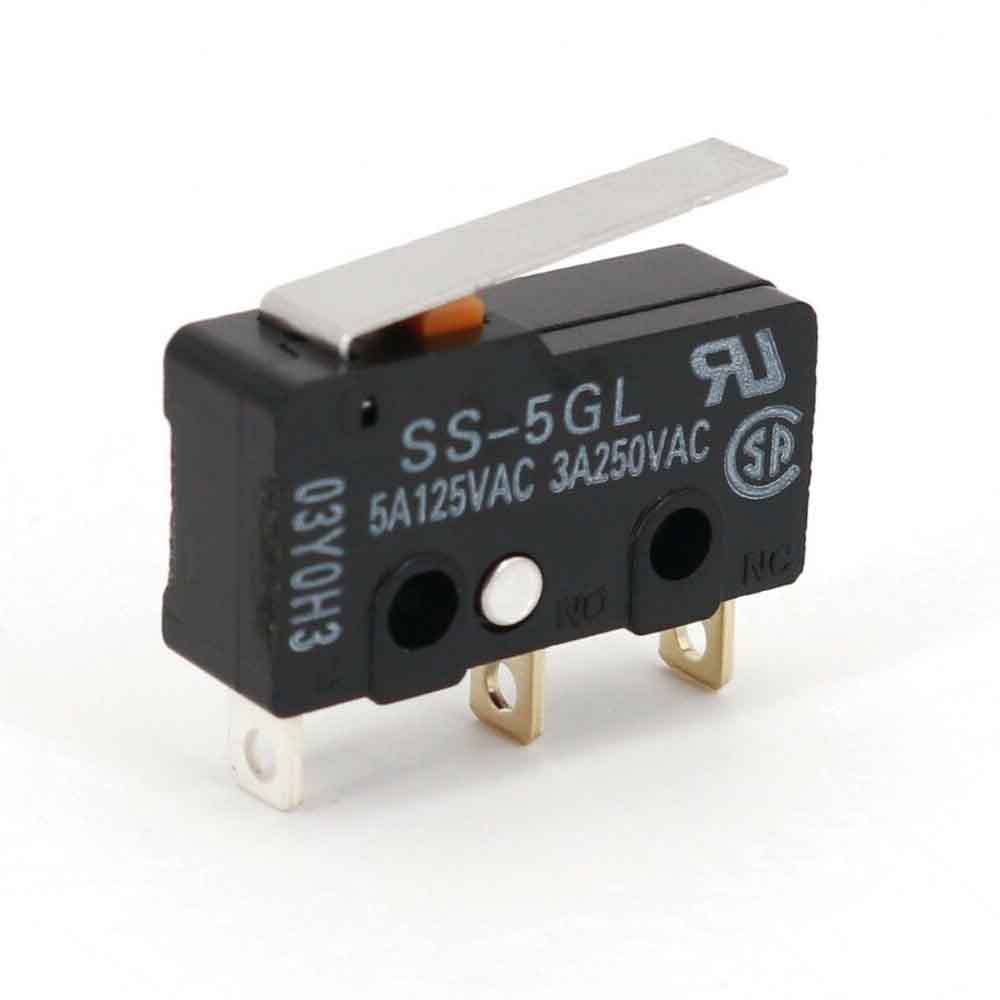

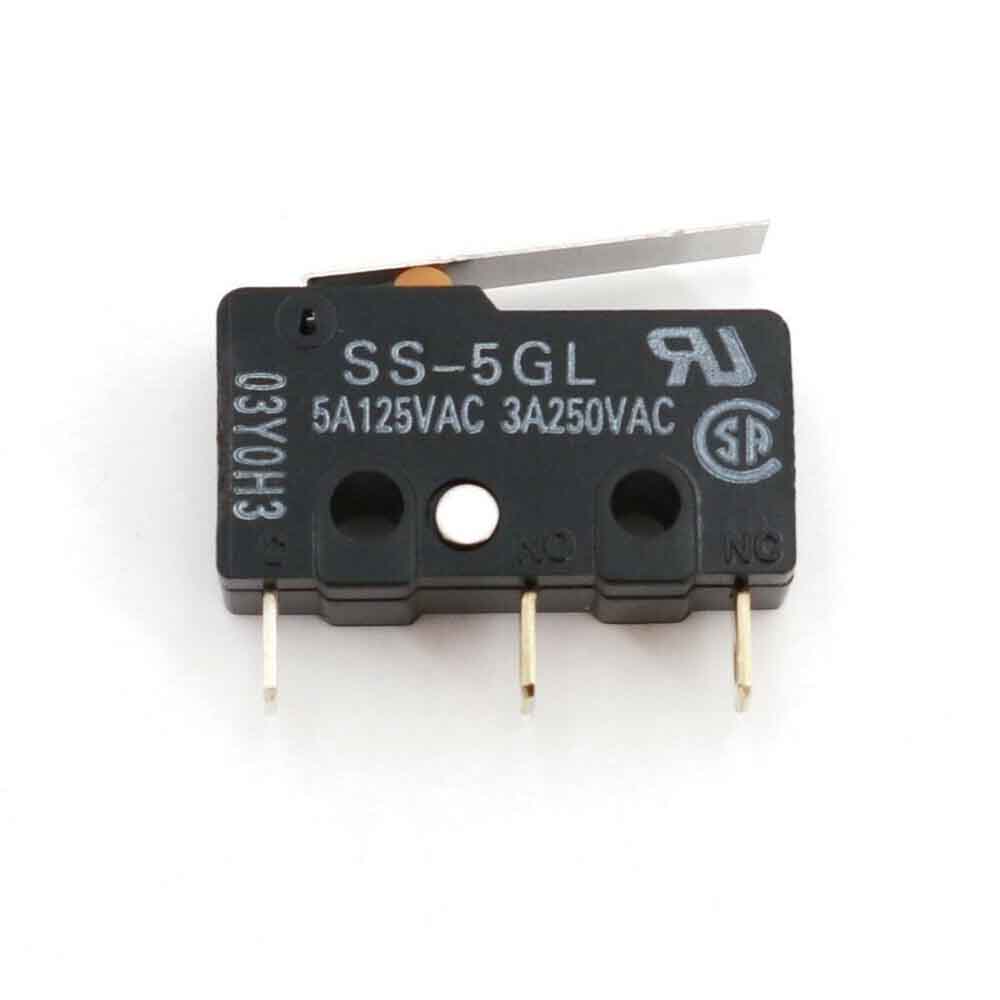

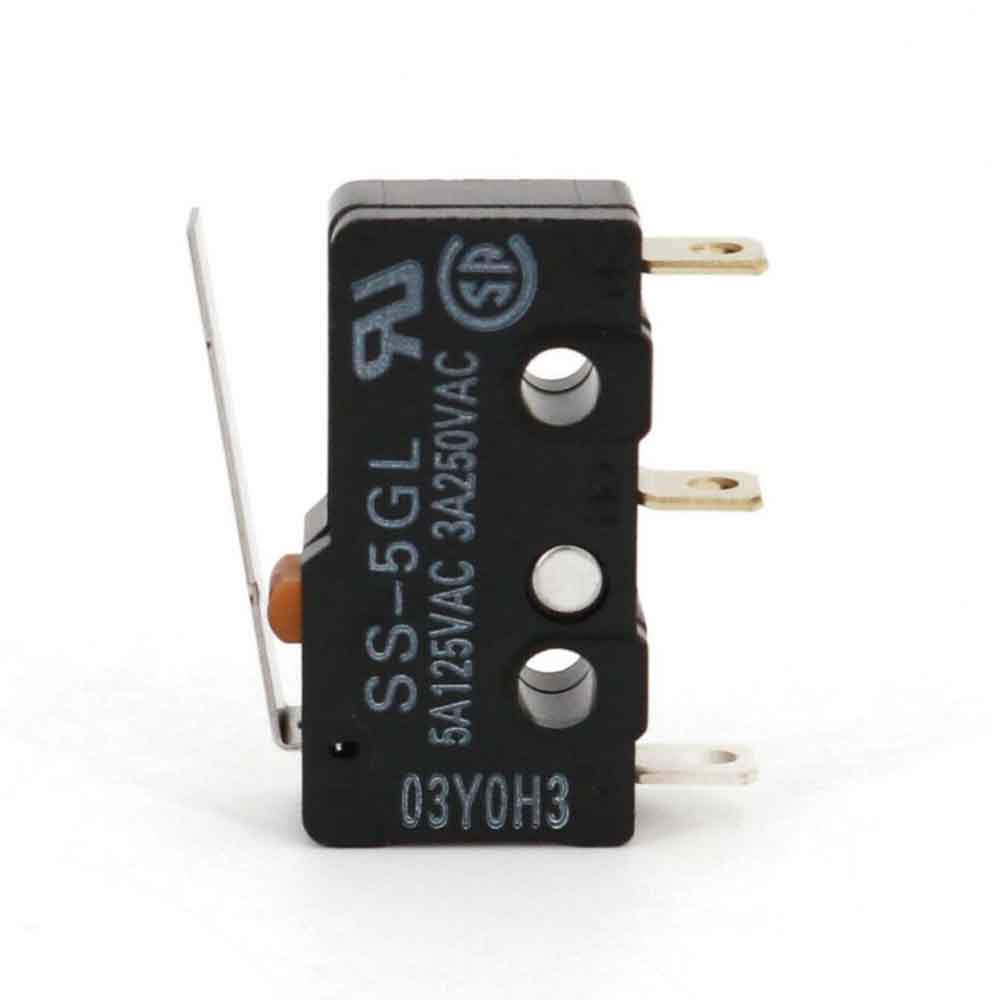

OMRON 3D Printer Limit Switch ENDSTOP SS-5GL

Description

This is OMRON 3D Printer Limit Switch ENDSTOP SS-5GL.

The Omron SS series are subminiature basic switches. These switches offer high reliability and security. A variety of models are available with an operating force ranging from low to high.

Applications :

• Industrial, Power Management, Automation & Process Control, Security.

Features :

• Switching capacity of 3A at 250VAC, 5A at 125VAC, 0.1A at 30VDC.
• Pin plunger, hinge, long hinge, simulated roller, hinge roller lever actuators available.
• Solder, quick connect, PCB terminals available.
• SPDT, SPST-NC, SPST-NO contact configuration.
• Two split springs ensure high stability and durability.
• Economical, subminiature snap action switch offers long service life (30 million operations minimum)
• All models are free from overtravel restrictions, permit easy setting
• Wide switching capacity range from micro voltage/current loads (1 mA at 5 VDC to high-capacity loads 10.1 A at 250VAC)
• Standard operating force, low force or super-low force models available
• RoHS Compliant.

Note : Product Images are shown for illustrative purposes only and may differ from actual product.

Package Includes :

1 x 3D Printer Limit Switch ENDSTOP OMRON SS-5GL.
