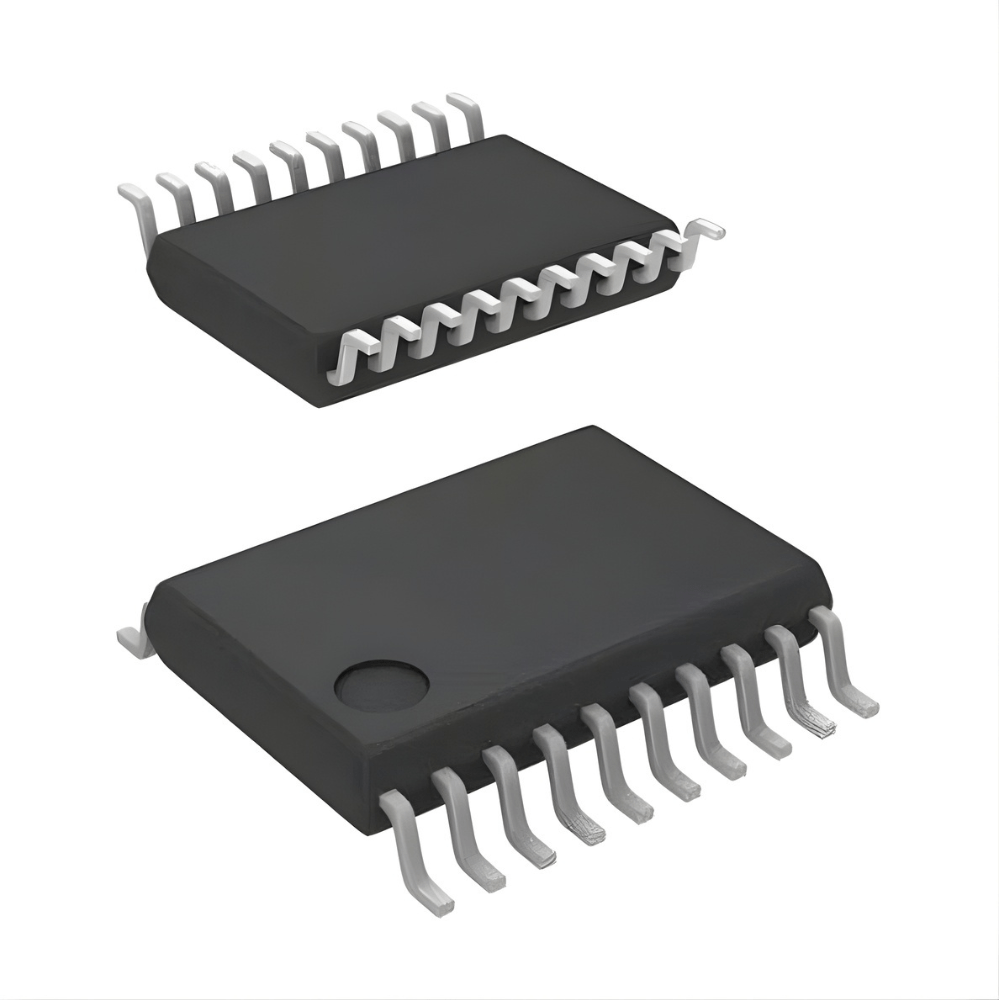

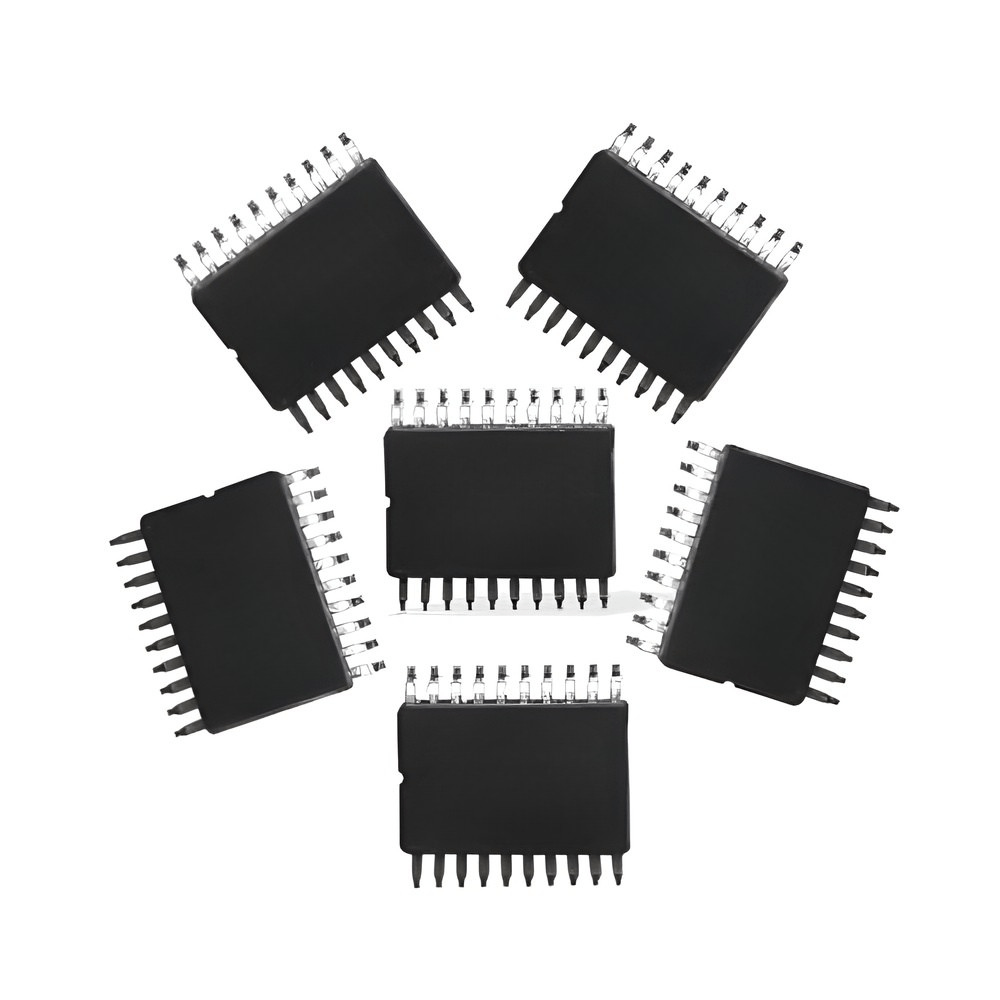

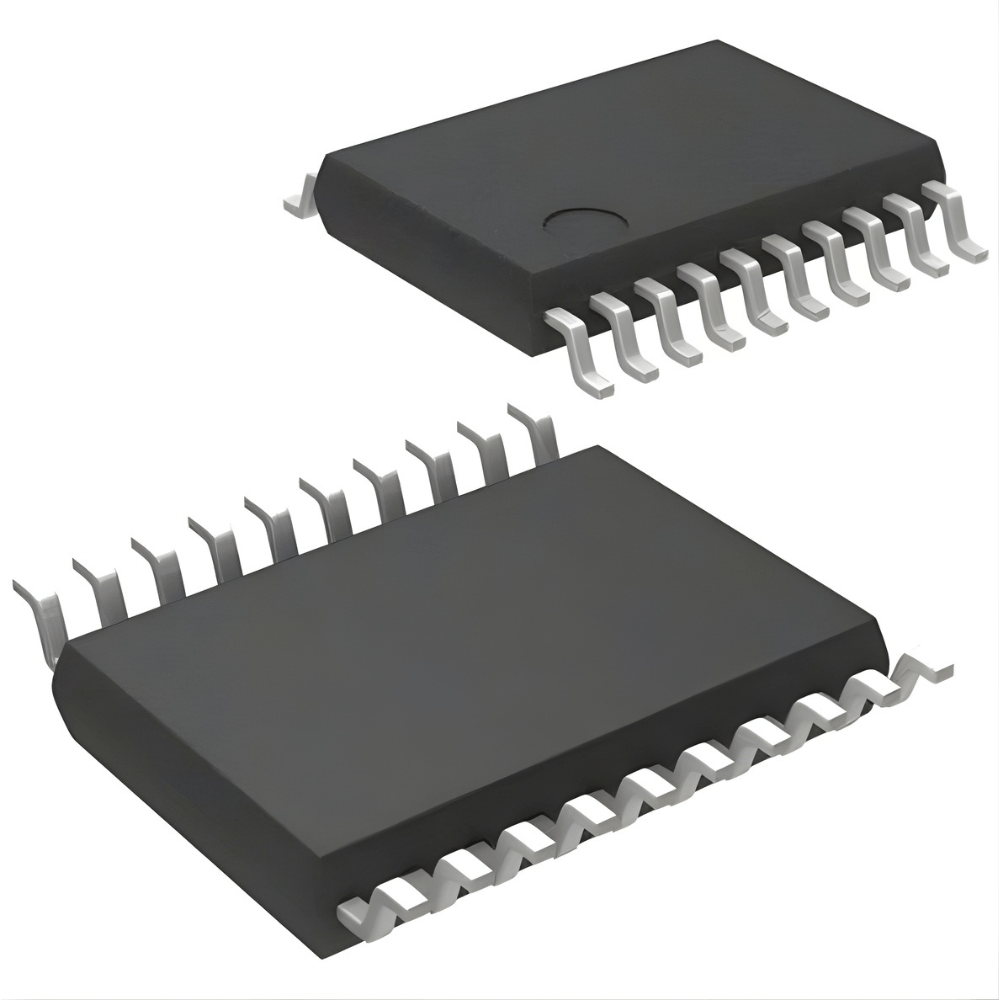

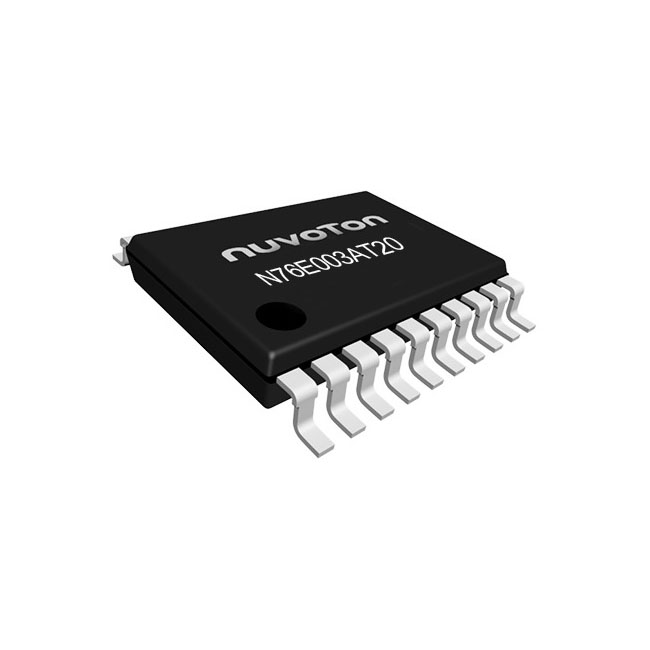

N76E003AT20 IC-2Pcs
N76E003AT20 IC-2Pcs
N76E003AT20 IC-2Pcs
N76E003AT20 IC-2Pcs
N76E003AT20 IC-2Pcs
N76E003AT20 IC-2Pcs
N76E003AT20 IC-2Pcs

N76E003AT20 IC-2Pcs

SKU: 36.2
True
Current price is: 403.99
In Stock


Add to cart
Add to wishlist
Adros Systems
Sold By:

Adros Systems

40

This product has been added to 8 people'scarts.

Description

N76E003_Block_Diagram

N76E003 – a 1T-8051 based series MCU, offers 18 KB Flash ROM, configurable Data Flash and 1 KB SRAM . It supports wide operating voltage of 2.4V to 5.5V , temperature range of – 40 ℃ to 105 ℃ , and high noise immunity of 7 kV ESD and 4 kV EFT.

The N76E003 provides up to 18 I/O pins under 20 pin package and rich peripherals including two UART s, SPI , I²C , 6-ch PWM output, wake-up function, and Brown-out detector. The competitive features includes a high precision <2 % deviation 16 MHz Internal RC oscillator, and a high resolution 12-bit 8 channel ADC . N76E003 supports small form factor packages TSSOP20 ( 4mm x 6.5mm ) and QFN20 ( 3mm x 3mm ) for easy board design.

Target Application:
Access Control System, Thermostat, Bluetooth Speaker, Electric Meter, Data Collector, Battery charger, Beauty Equipment, Small Home Appliance, etc.

Key Features:

• Core
– 1T 8051 processor
– Max frequency up to16 MHz
– Wide operating voltage: 2.4V to 5.5V
– Temperature range: – 40 ℃ to 105 ℃
• Memory
– 18 KB  of Flash memory
– 1 KB of SRAM
– Supports configurable Data Flash
– Supports program update by:

  • ISP ( In-System Programming )
  • ICP ( In-Circuit Programming )
  • IAP ( In-Application Programming )
• PWM
– Up to 6-ch PWM
– Programmable dead-zone generator
• ADC
– 12-bit 8-ch ADC
– Runs up to 500 kSPS
• Connectivity
– Two UART s up to 115200 bps
– One SPI up to 8 MHz
– One I²C up to 400 kHz
• Clock Control
– 2 % deviation16 MHz Internal RC oscillator
– 10 kHz Internal RC oscillator

Datasheet available here.
