MCU-758 Hall Current Sensor ACS758LCB-050B- PFF-T Linear Current Sensor Module

Rated 3.50 out of 5 based on 2 customer ratings

SKU: E136.3

True

In Stock

Add to cart

Add to wishlist

Sold By:

Adros Systems

Rated 3.65 out of 5 based on 40 customer ratings

This product has been added to 8 people'scarts.

Description

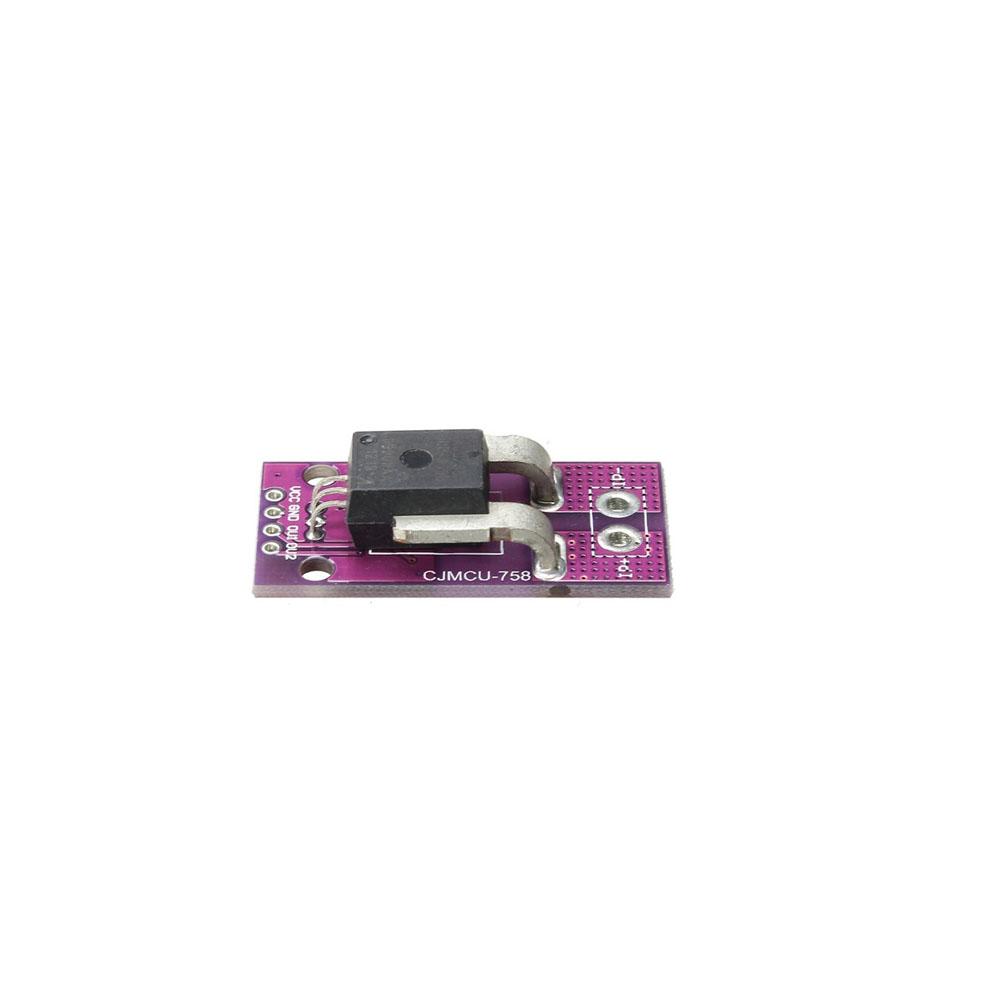

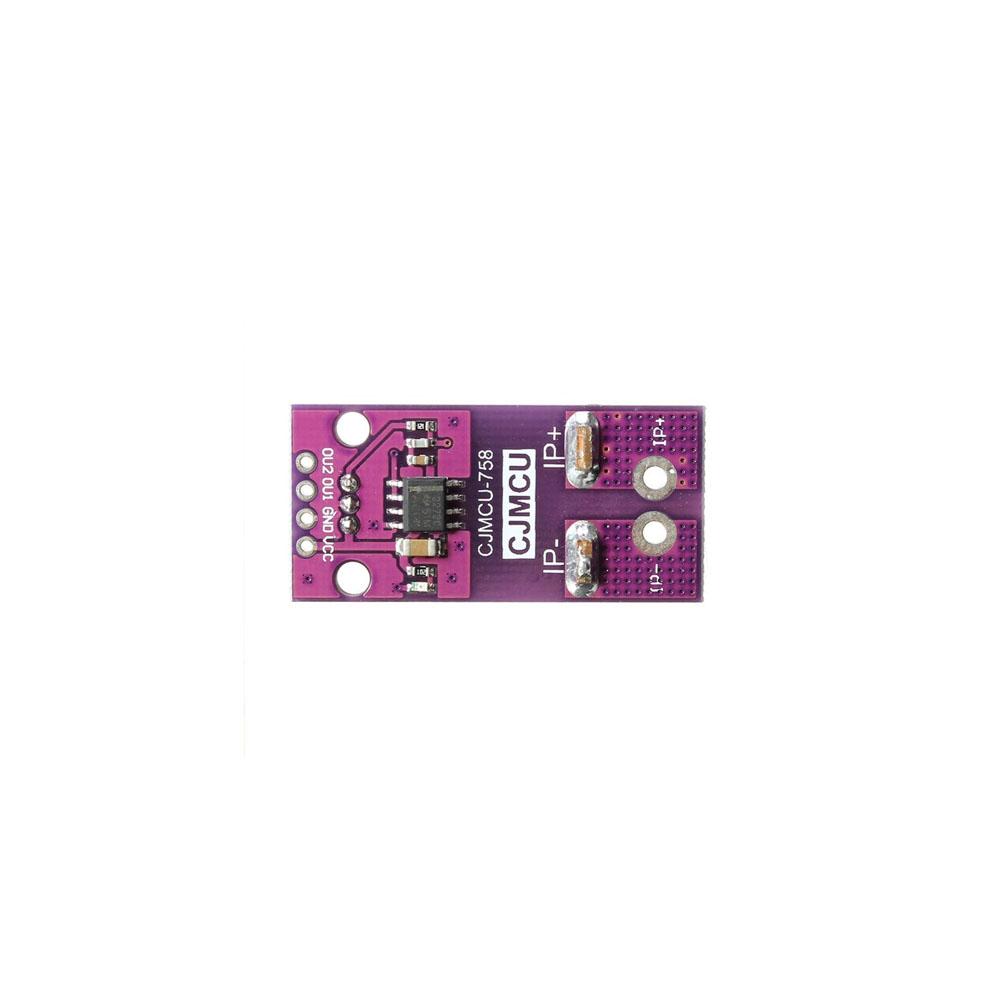

This Module is based on the Allegro Hall-effect Based Linear Current Sensor IC ACS758LCB-050B. This is 50 Ampere Bi-directional current sensor Module.

The relationship between voltage output and current input:

VOUT = VOUT(Q) + Vsens x I VOUT(Q) is the quiescent output voltage, which is VCC/2, which is the output voltage when there is no input. Vsens is a sensor-sensitive scale, also known as a coefficient. I is the current flowing from IP+ to IP-.

For example, suppose the sensor model is 050B, VCC is 5V, and I current is 10A, then the output is 5V / 2+40mV/A x10A=2.9V.
