LXW5-11Q1 NO NC 15A Limit Switch with Panel Mount – Silver Contact

Description

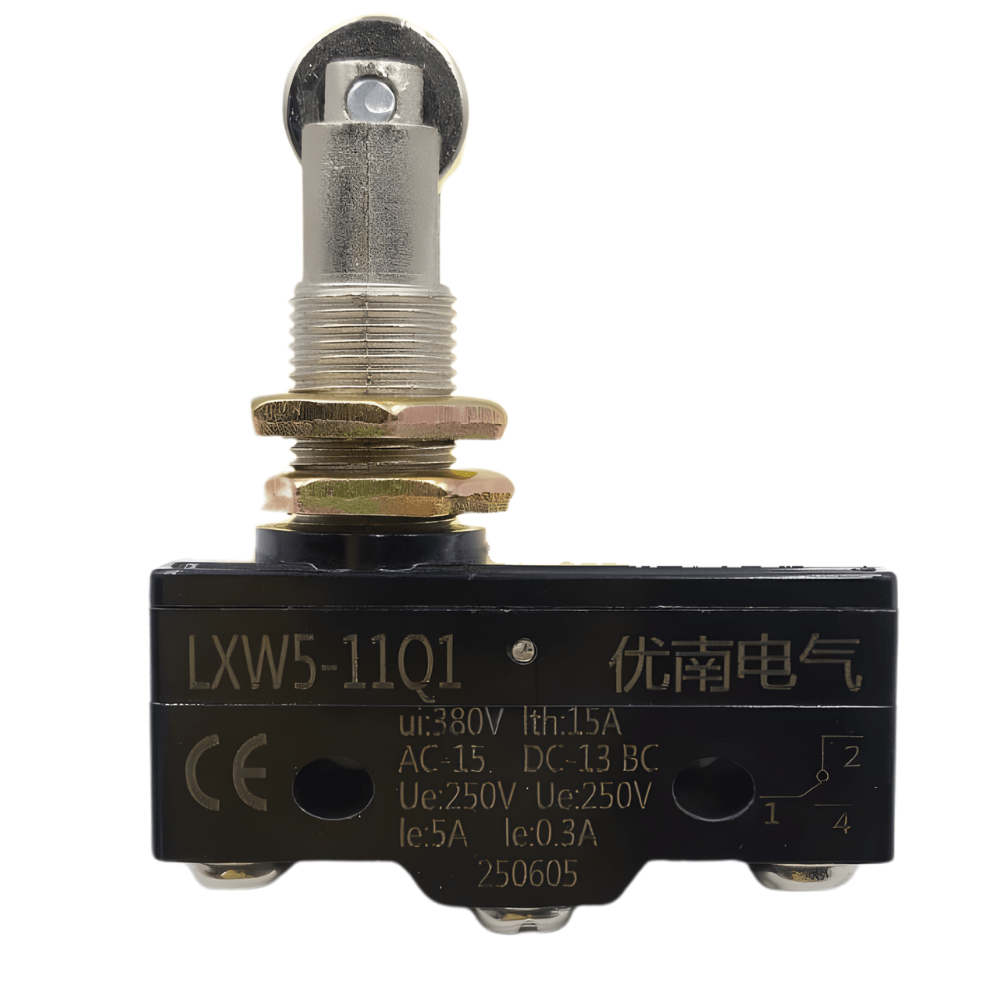

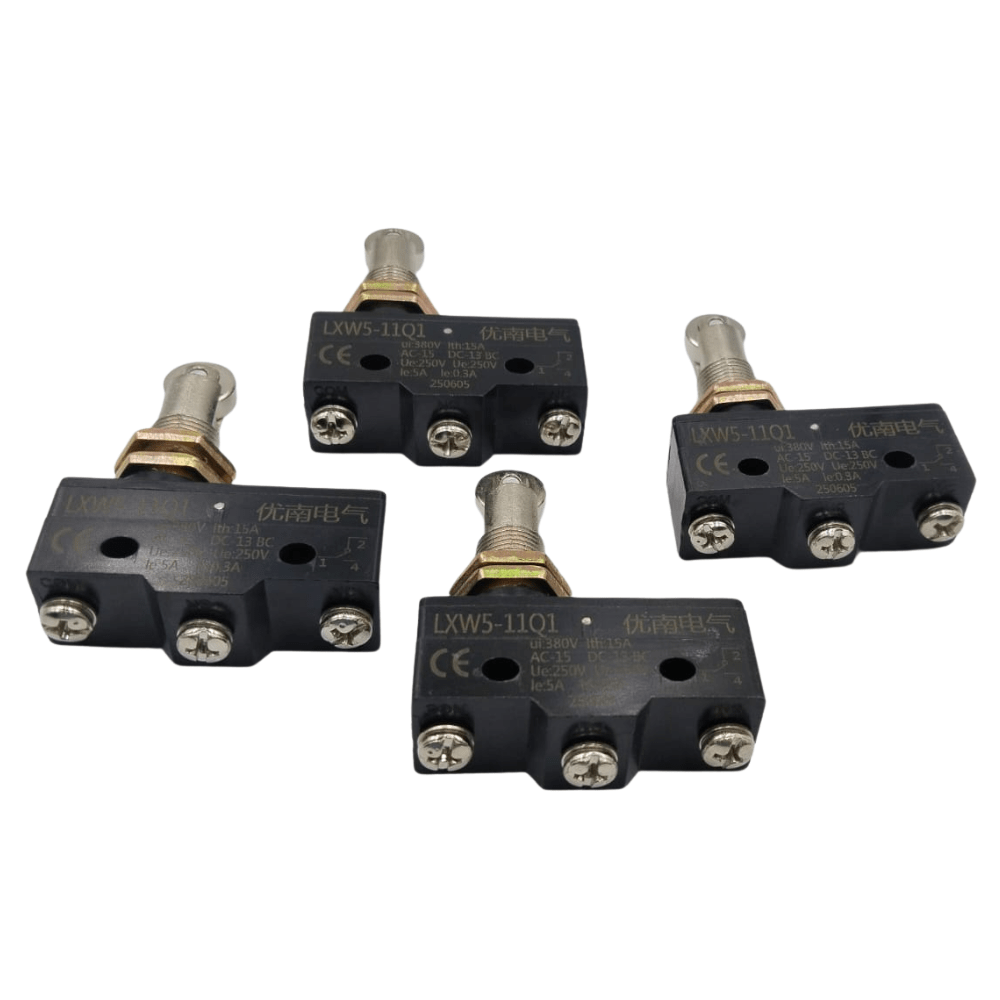

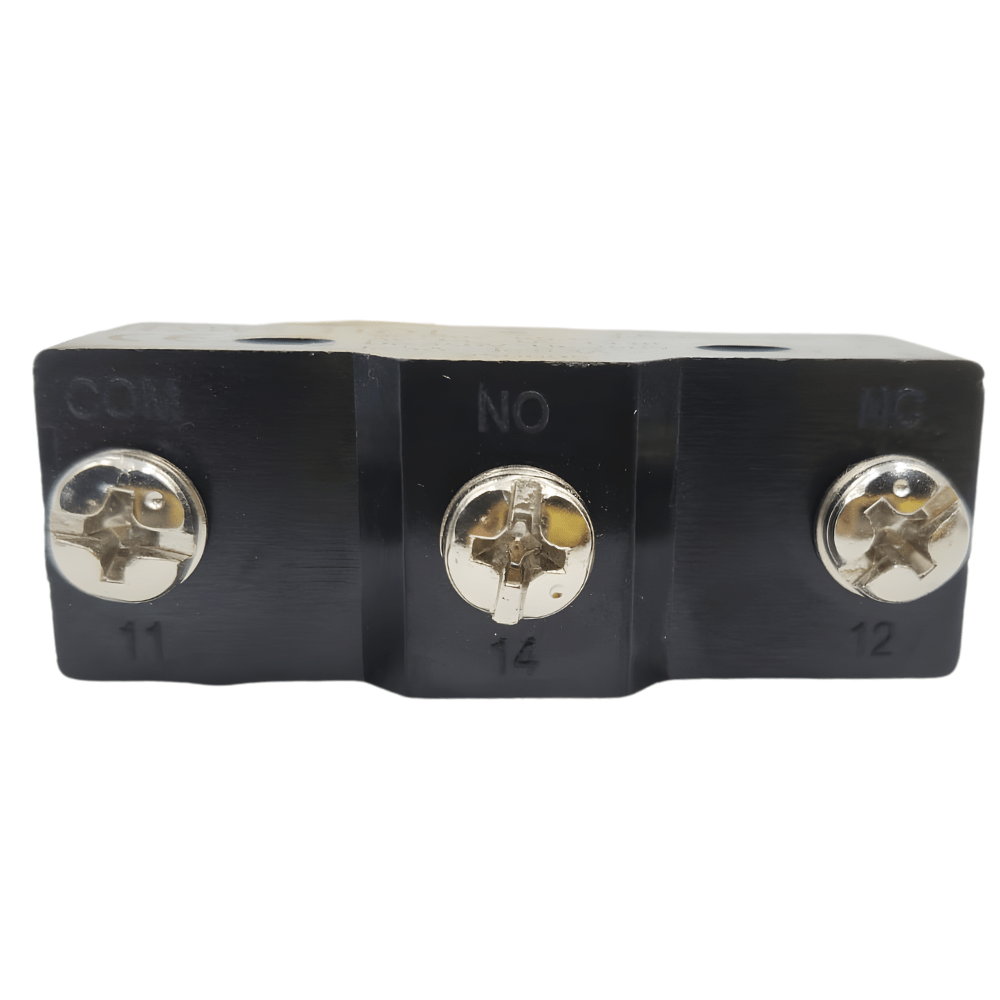

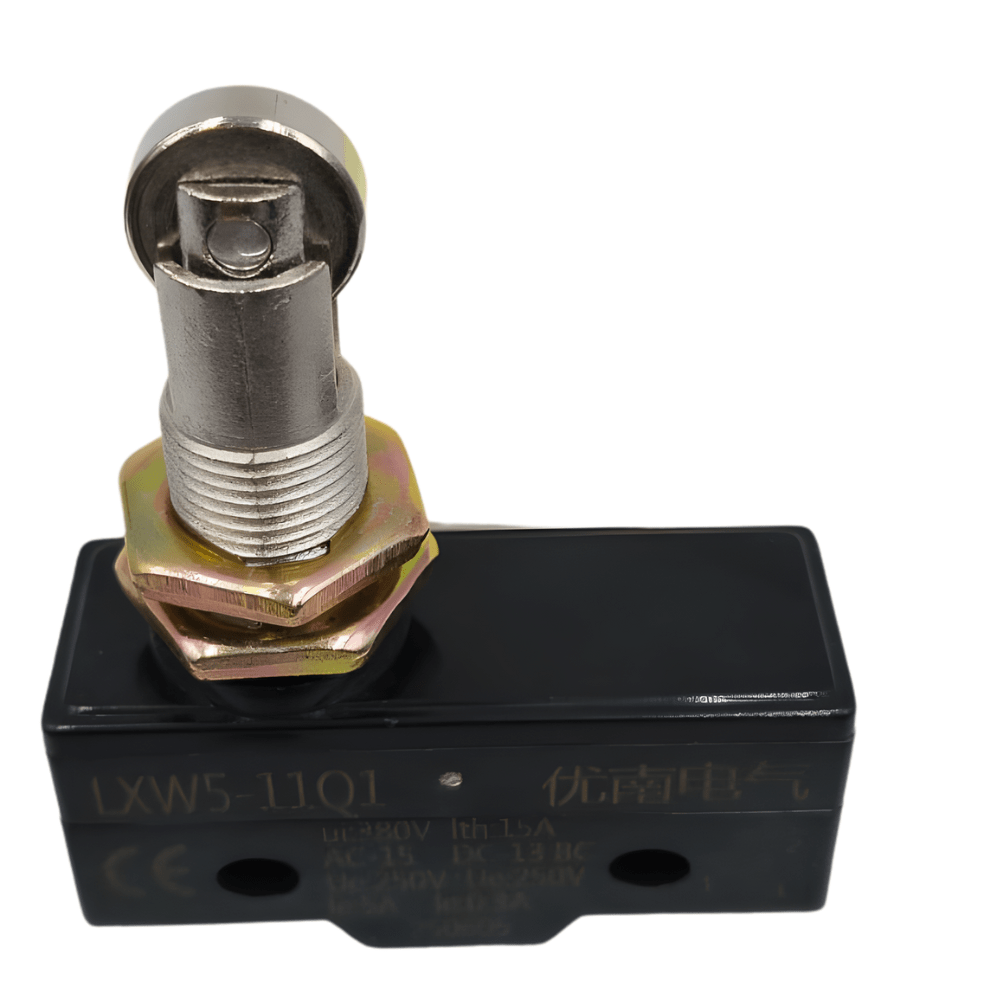

The LXW5-11Q1 (Silver Contact) is a professional-grade miniature micro limit switch designed for high-precision position detection and electrical circuit control in industrial machinery. It features a top plunger actuator (push-button type) specifically engineered for vertical or linear actuation. This model is distinguished by its high-quality silver contacts, which provide superior electrical conductivity, low contact resistance, and enhanced arc resistance compared to standard copper contacts, ensuring a longer service life under heavy loads. The switch is built with a Single-Pole Double-Throw (SPDT) configuration, allowing for both normally open and normally closed operations through three secure screw terminals. With a robust current rating of 15A and a voltage capacity up to 380VAC, it is an ideal choice for heavy-duty applications such as terminal limit protection in CNC machines, industrial lifts, and automated production lines. The housing is made of heat-resistant, high-strength phenolic plastic, typically offering an IP62 rating to protect the internal silver mechanisms from dust and debris.

Package includes:
1 x LXW5-11Q1 15A Micro Limit Switch (Silver Contact)
