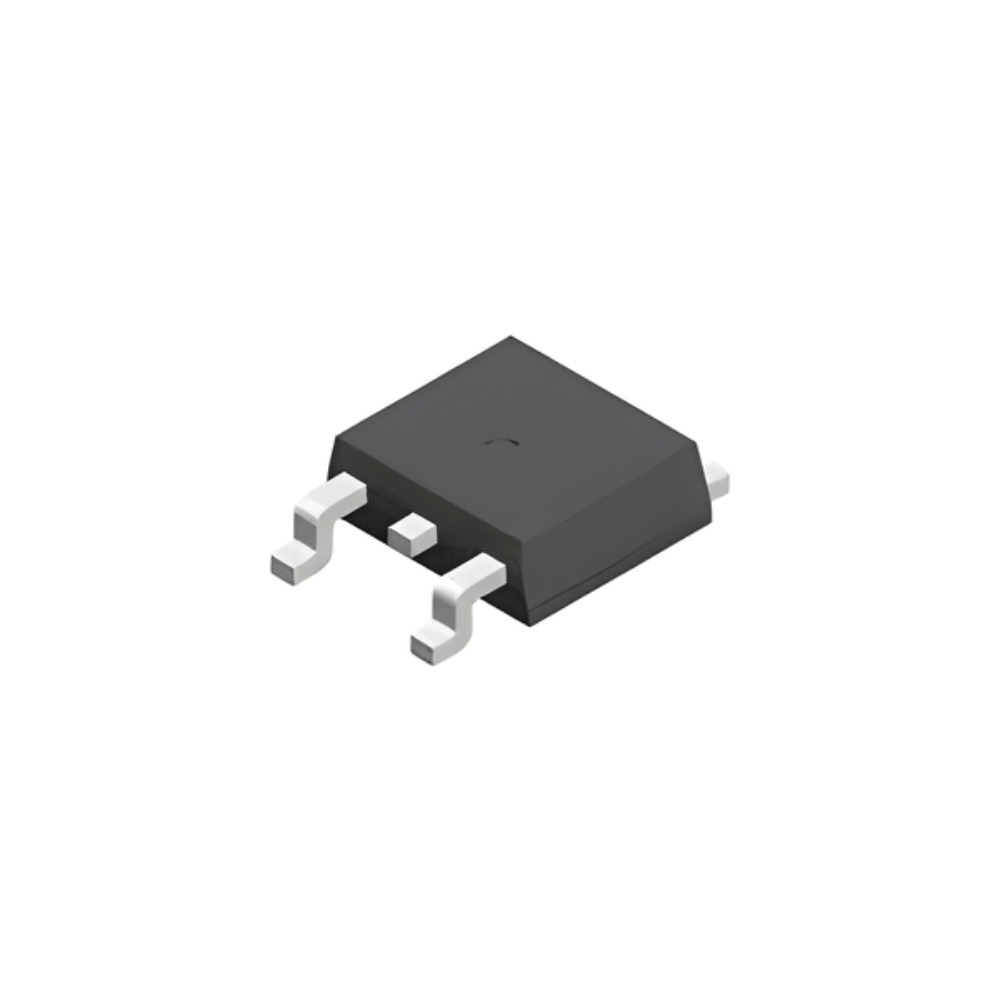

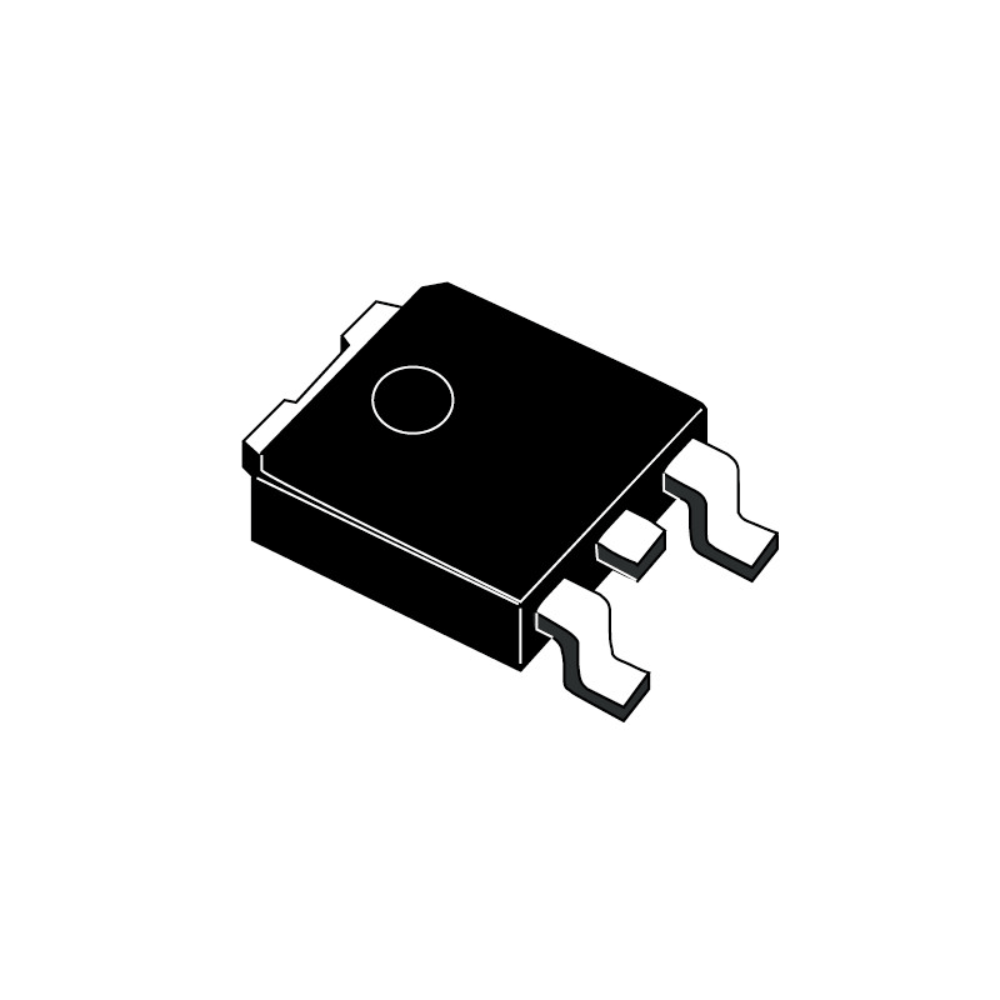

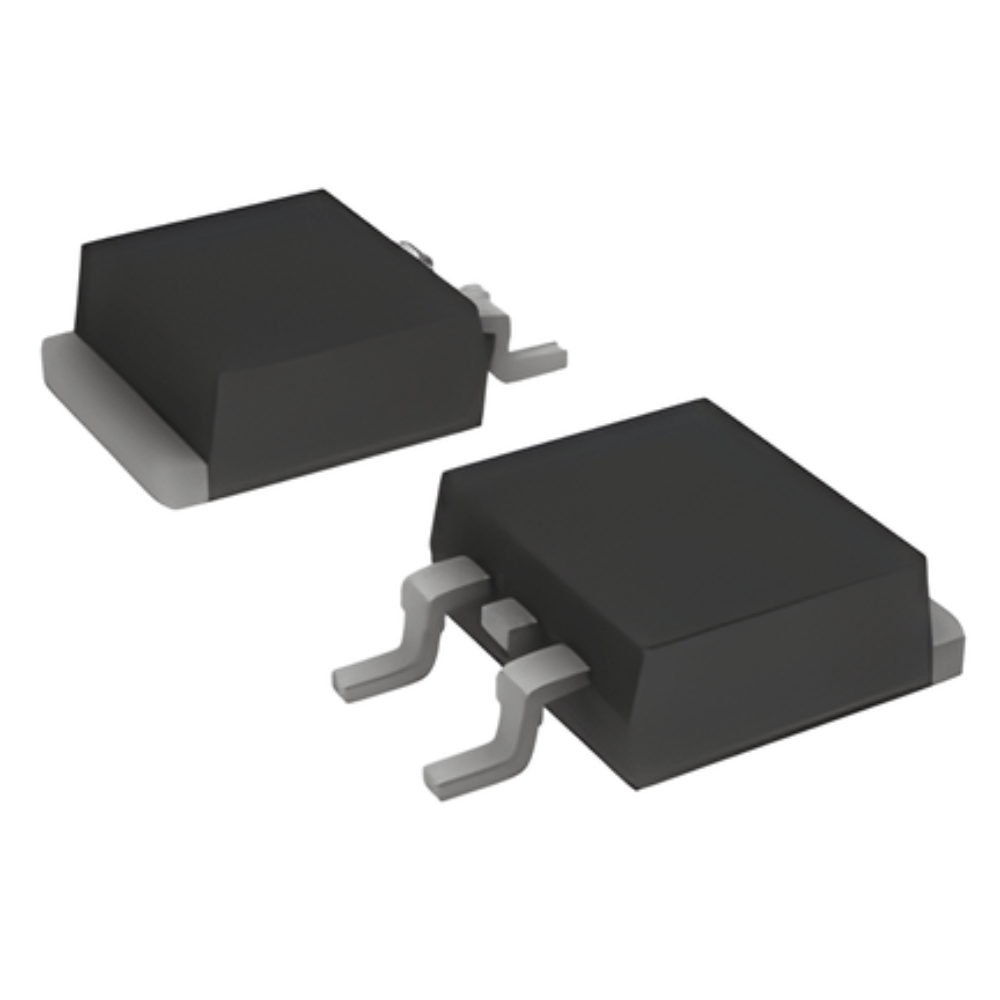

L78M05CDT-TR TO-252 Linear Voltage Regulator (Pack of 3 ICs)

Description

The L78M05CDT-TR is a three-terminal positive Voltage Regulator with several fixed output voltages, making it useful in a wide range of applications. This regulator can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation.

Each type employs internal current limiting, thermal shutdown, and safe area protection, resulting it essentially indestructible. If adequate heat sinking is provided, they can deliver over 0.5A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Features:
• Output current to 0.5 A
• Output voltages of 5; 6; 8; 9; 10; 12; 15; 24 V
• Thermal overload protection
• Short circuit protection
• Output transition SOA protection
• Output voltage tolerance: 2 % (AB and AC versions) or 4 % (C version)
• Guaranteed in extended temperature range

Package Includes:

1 x L78M05CDT-TR TO-252 Linear Voltage Regulator (Pack of 3 ICs)

Datasheet available here.
