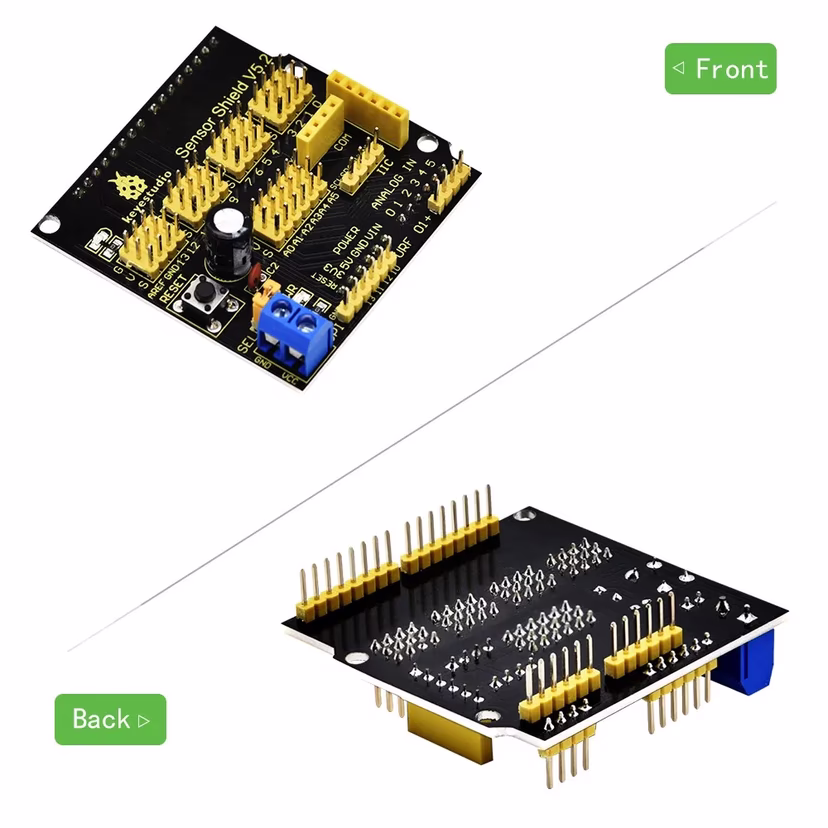

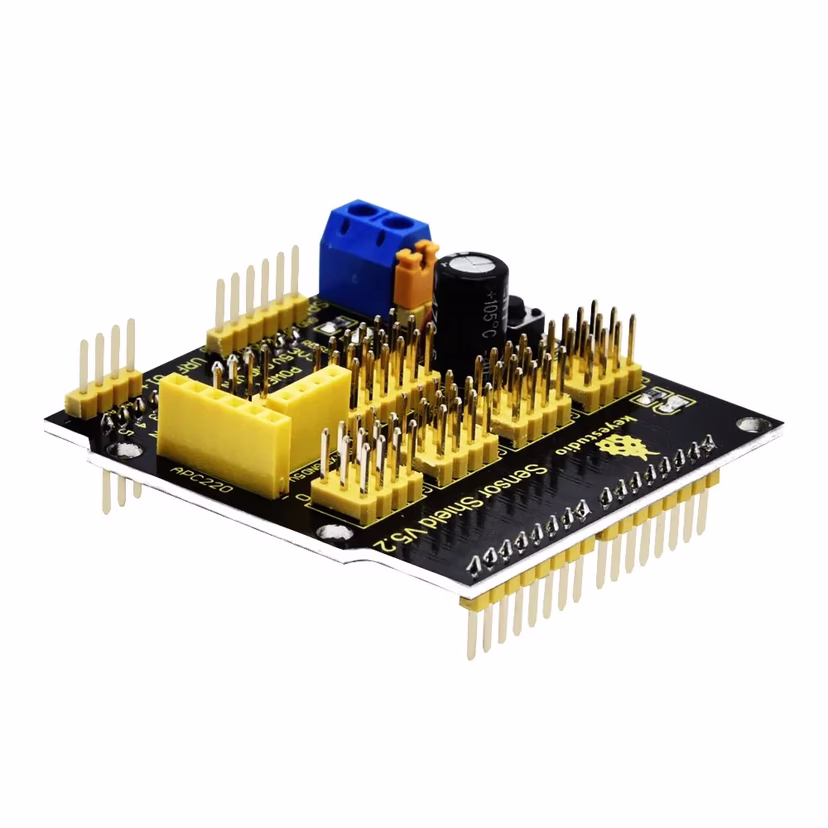

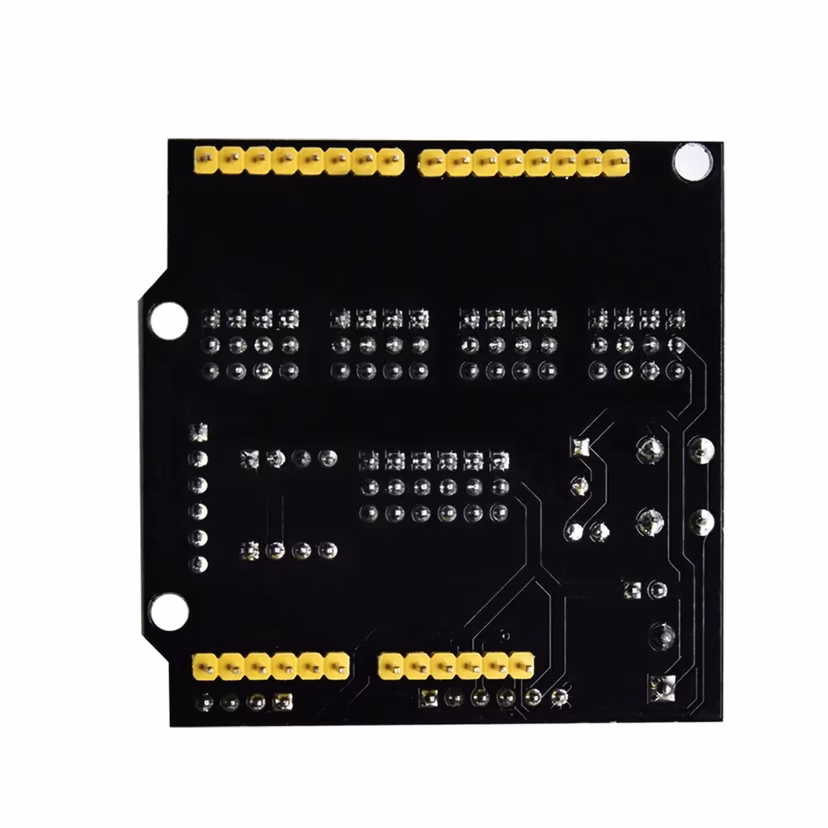

Keyestudio Sensor Shield/Expansion Board V5 for Arduino

Description

Simplify your Arduino projects with the Keyestudio SensorShield for Arduino the perfect expansion board designed to streamline your connections. Whether you're building complex systems or prototyping with multiple sensors, this shield breaks out all UNO R3 digital and analog pins into easy-to-use 3PIN headers (GND, VCC, Signal). It includes built-in power and D13 indicators, plus convenient serial, I2C, and SPI communication interfaces. A reset button, URF, and APC220 ports round out its rich features. Power different sensor modules using terminal blocks that support special voltages. Stack it on your UNO R3 and build smarter, faster, and cleaner — with no messy wires.

Features:

1. Fully compatible with Arduino UNO R3
2. Breaks out all analog & digital pins as 3PIN (G,V,S) headers
3. Built-in power indicator and D13 LED indicator
4. Integrated Serial, I2C, and SPI communication interfaces
5. Dedicated URF and APC220 communication ports
6. Reset button included for quick system reboots
7. Terminal blocks for versatile sensor voltage supply
8. Clean, stackable design — no breadboard needed

Package Includes:

1 x Keyestudio Sensor Shield/Expansion Board V5 for Arduino

Item Type:

Expansion Board

Compatibility:

Arduino Uno R3

Input Voltage (V):

3.3/ 5

Material:

PCB

No. of PWM Pin

6

Length (mm):

57

Width (mm):

57

Weight (g):

29

Shipping Weight

0.034 kg

Shipping Dimensions

7 × 6 × 2 cm
