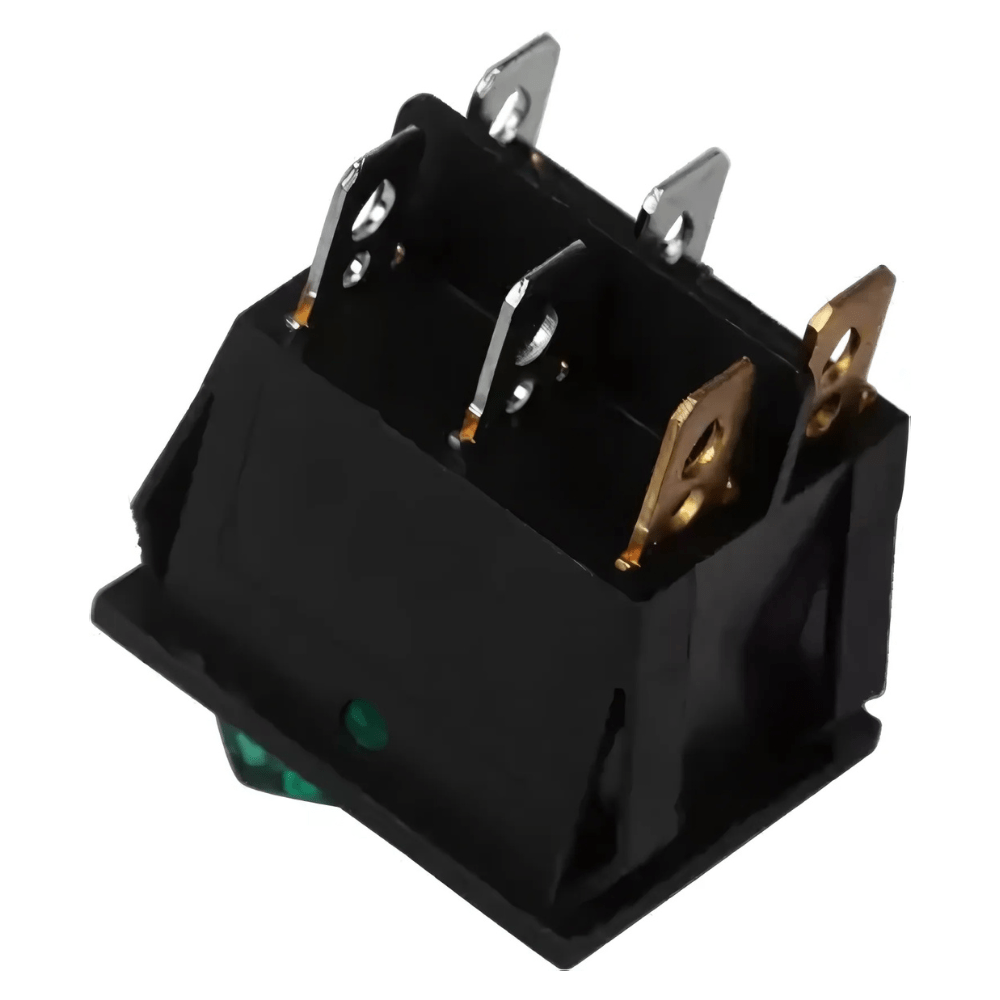

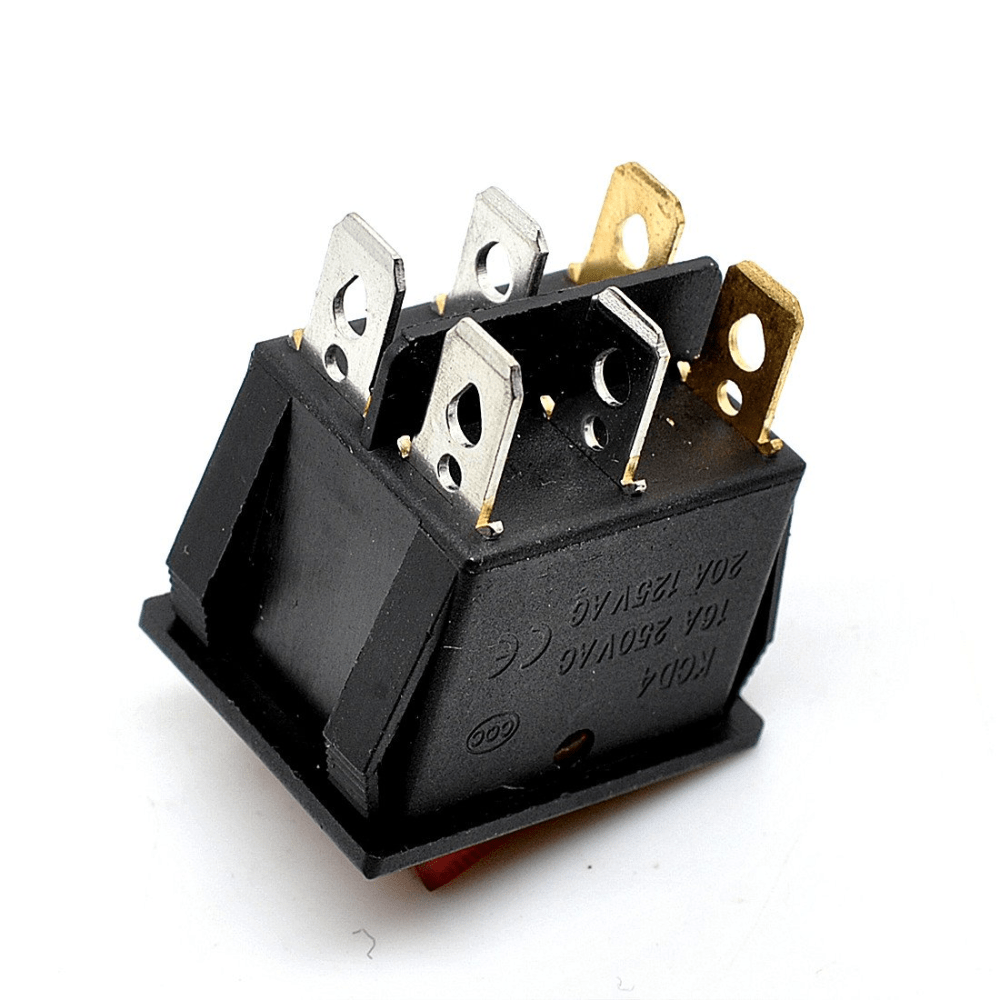

KCD8-212N 220V 16A Rocker Light Green and Green Switch Two channel DPDT 6 Pin

Description

This KCD8-212N Green Button Rocker Switch is a high-quality power switch. With its 6-pin double rocker design, this switch is perfect for use in a variety of electrical applications. The green button adds a touch of style to the switch, making it a great addition to any DIY project. This switch is easy to install and is suitable for use in power points, switches, and savers. Tags: Rocker Power Switch, SMPS Rocker Power Switch, SPDT Rocker Power Switch

Features/Specs:

1. Model Number: KCD8-212N

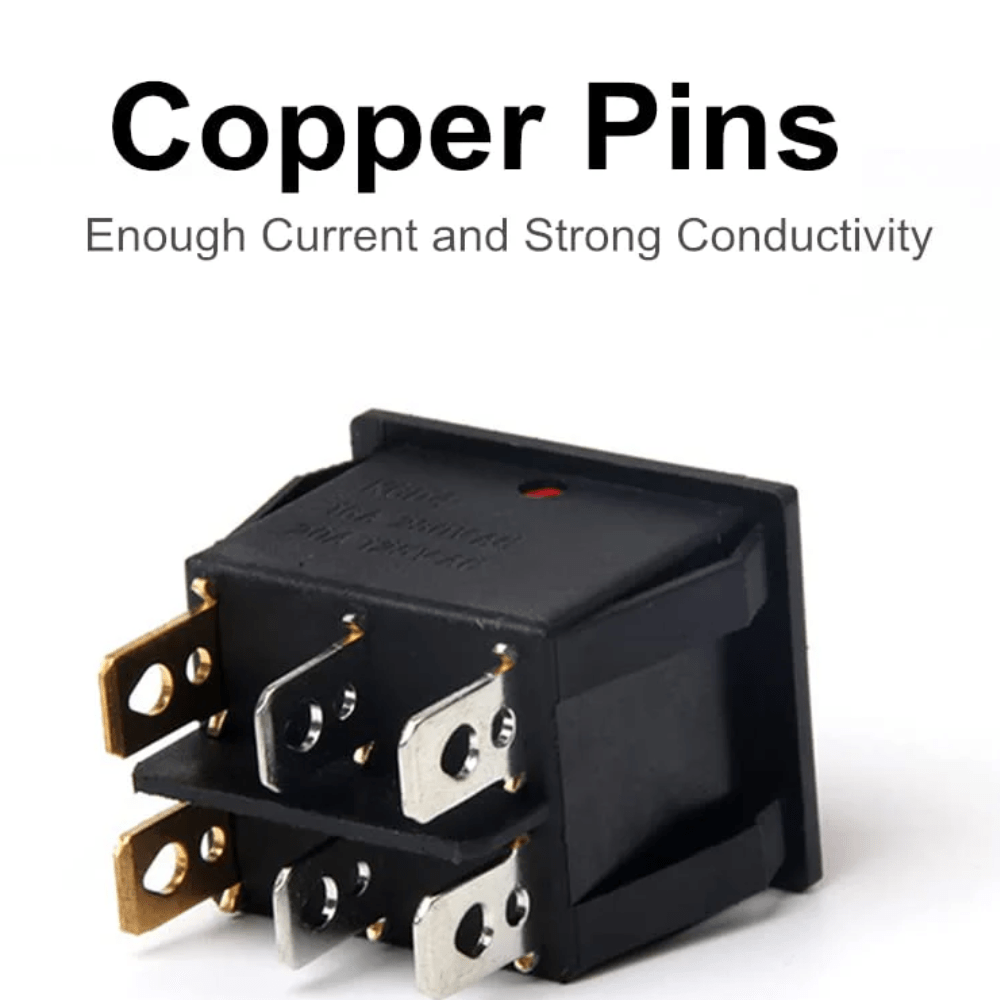

2. Material: Copper
3. LED Indication: Yes
4. Switch Type: Rocker Switch
5. Current Rating: 16A 250V/20A 125V
6. Insulation Resistance: 100M ohm min,100V DC
7. Contact Resistance: 100m ohm max
8. Operating Temperature: -30°C ~ +85°C
9. Life Cycle: 100000/300000
10. Operating Force: A:130gf B:180gf C:250gf
11. Stroke: 0.25+-0.1mm
12. Color: Green And Green

Application:

1. DC Motors in Robotics
2. Car and Motorcycle DC Motors
3. DC Motors in Industrial Machines
4. Water Dispensers, etc.

Package Includes:

1 x KCD8 Rocker Light Green and Green Switch Two-channel DPDT 6 Pin
