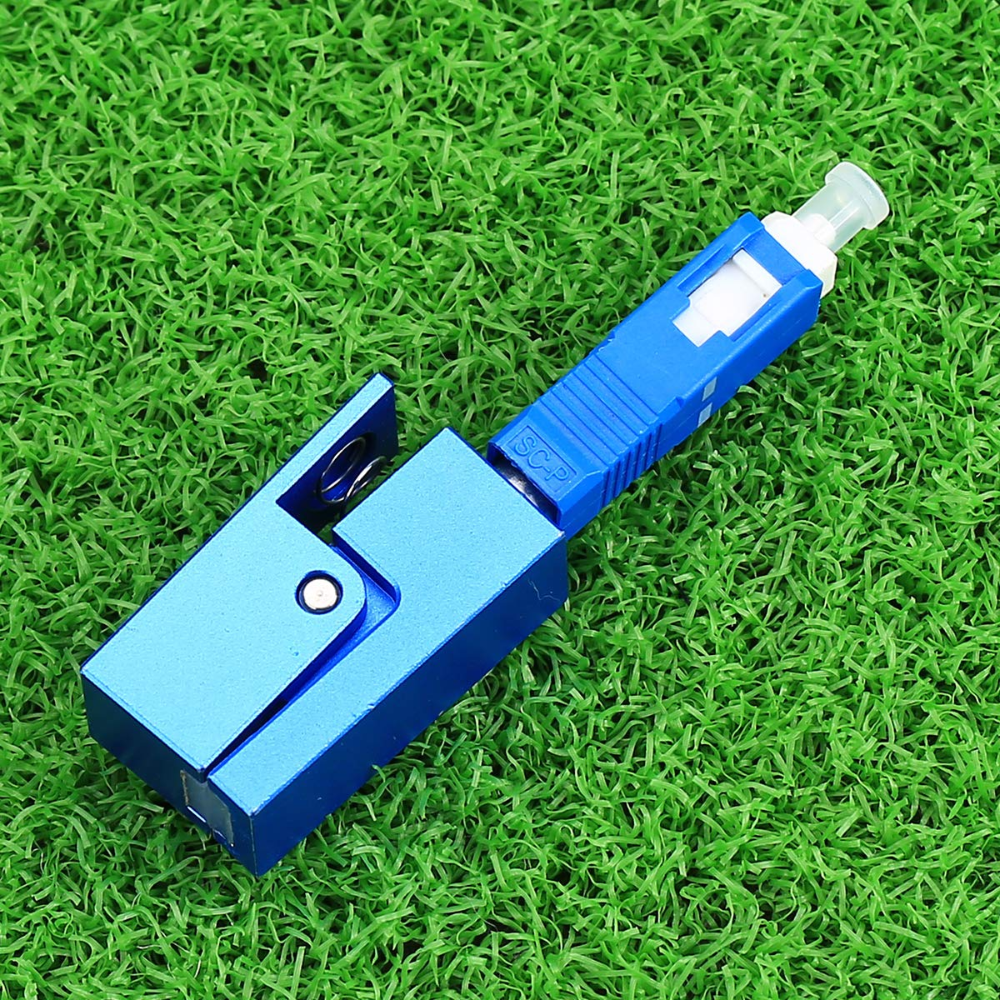

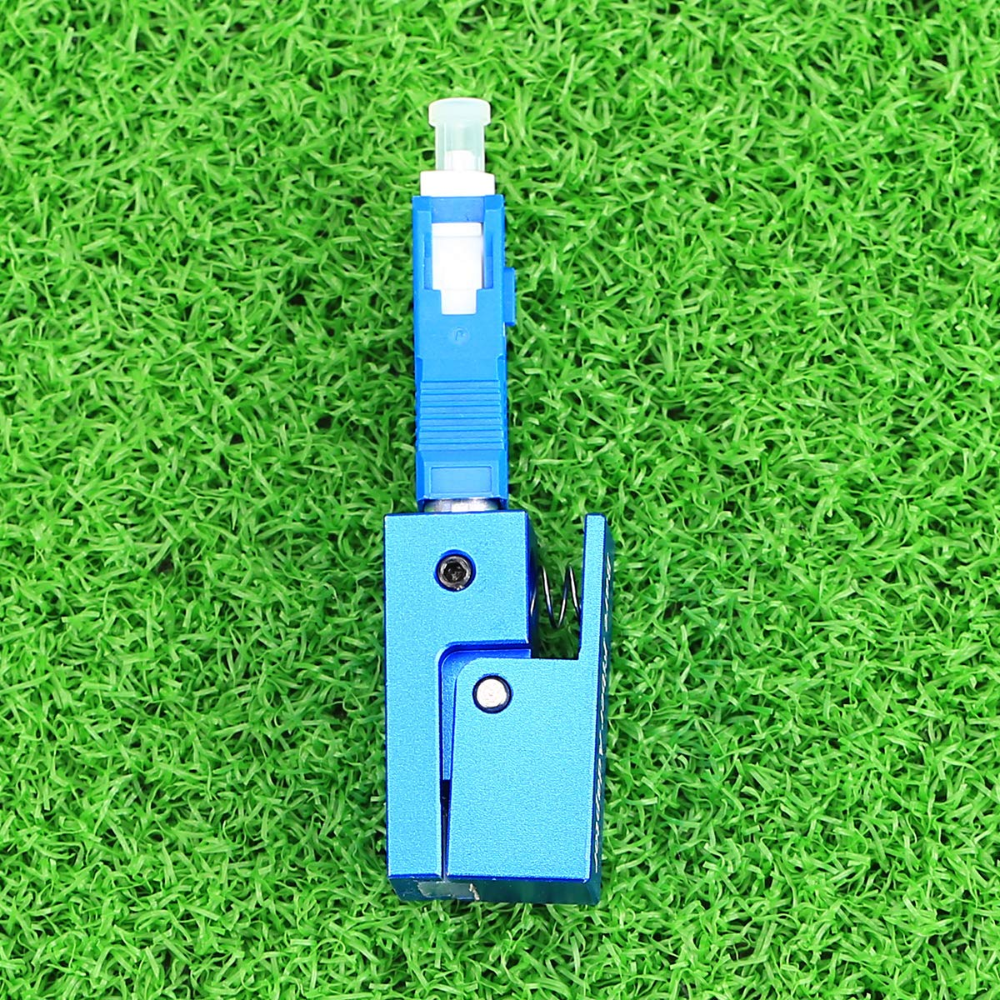

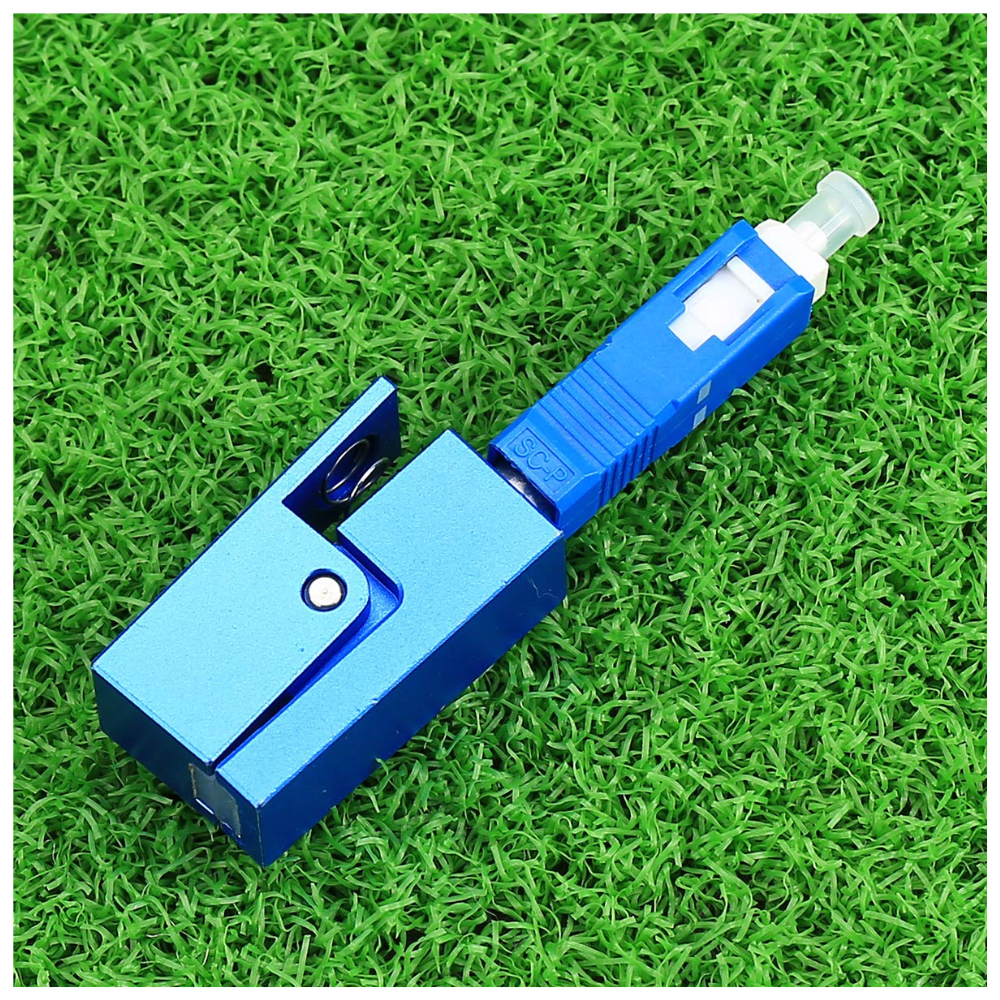

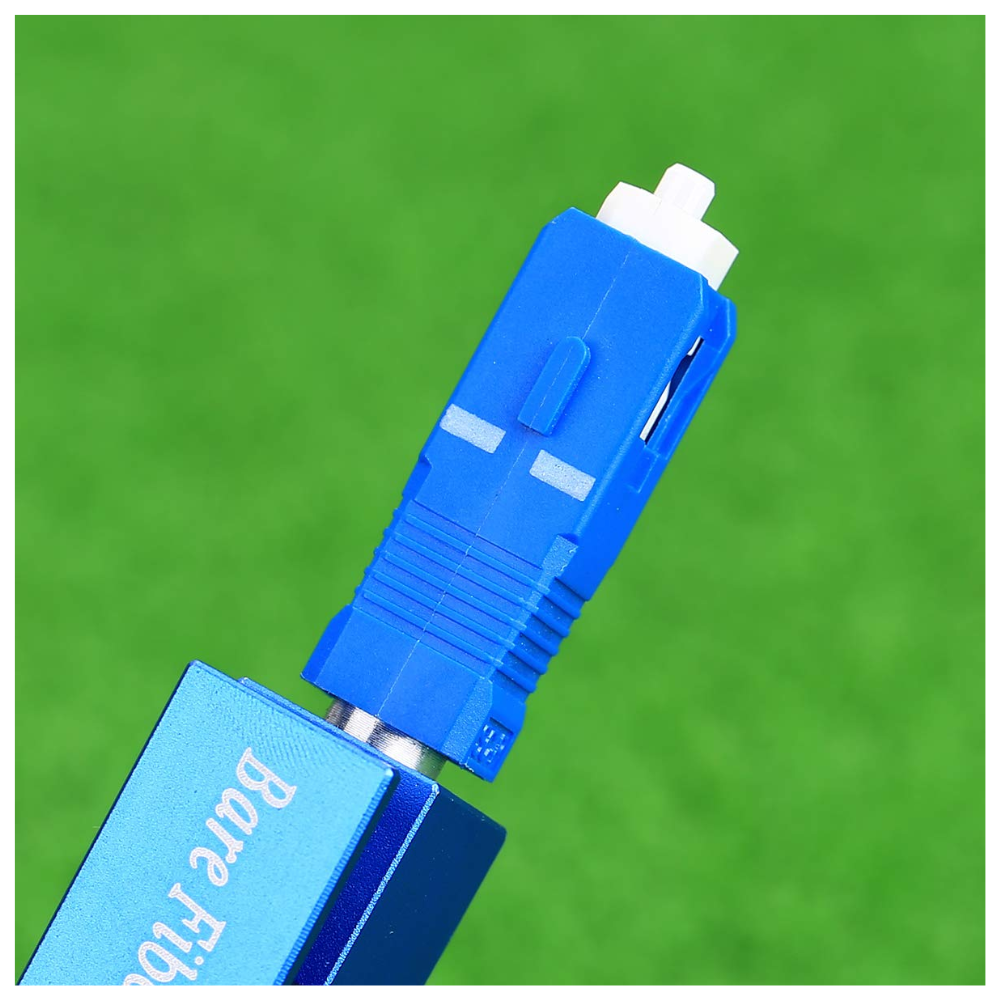

Fiber Optic Adapter SC/UPC Square Type Bare Fiber Adapter Coupler for Fiber Connection

Description

Description：

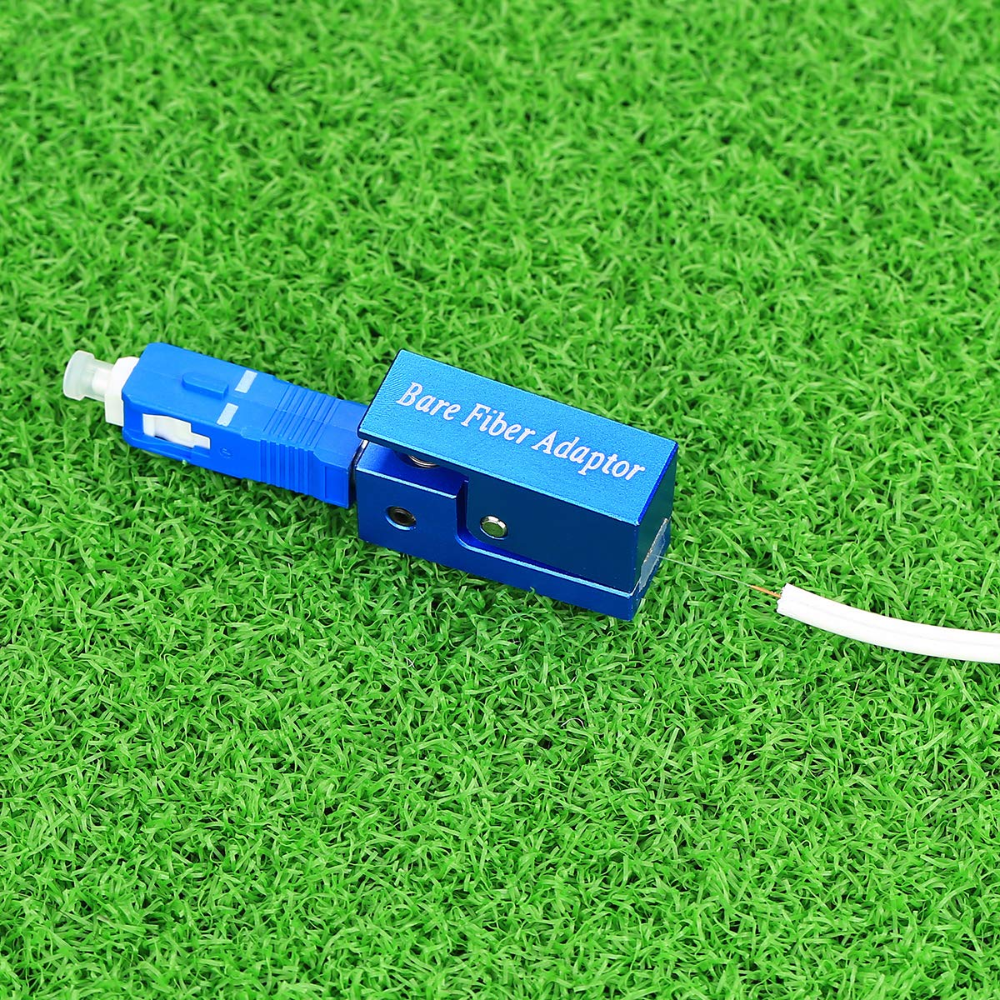

Bare fiber adapter i a very efficient media to connect bare fiber to fiber optic devidce, it usually used in installation to test links. One side of the bare fiber adapter is the bare fiber, the other side is the fiber optic connector to plug into equipment.

Parameter:
Insertion Loss Typical: ≤0.2dB;
Return Loss: ≥50dB;
Exchangeability: ≤0.2dB;
Repeatability: ≤0.2dB;
Durability: >1000 times;
Operating Temperature: -40~+80C
Storage Temperature: -45~85C
Material：Metal
weight：18g
size：6.2cm

Applications:
WANs,LANs,CATV
Testing equipment
Communication system
Telecommunication networks
Temporarily connect bare fiber
