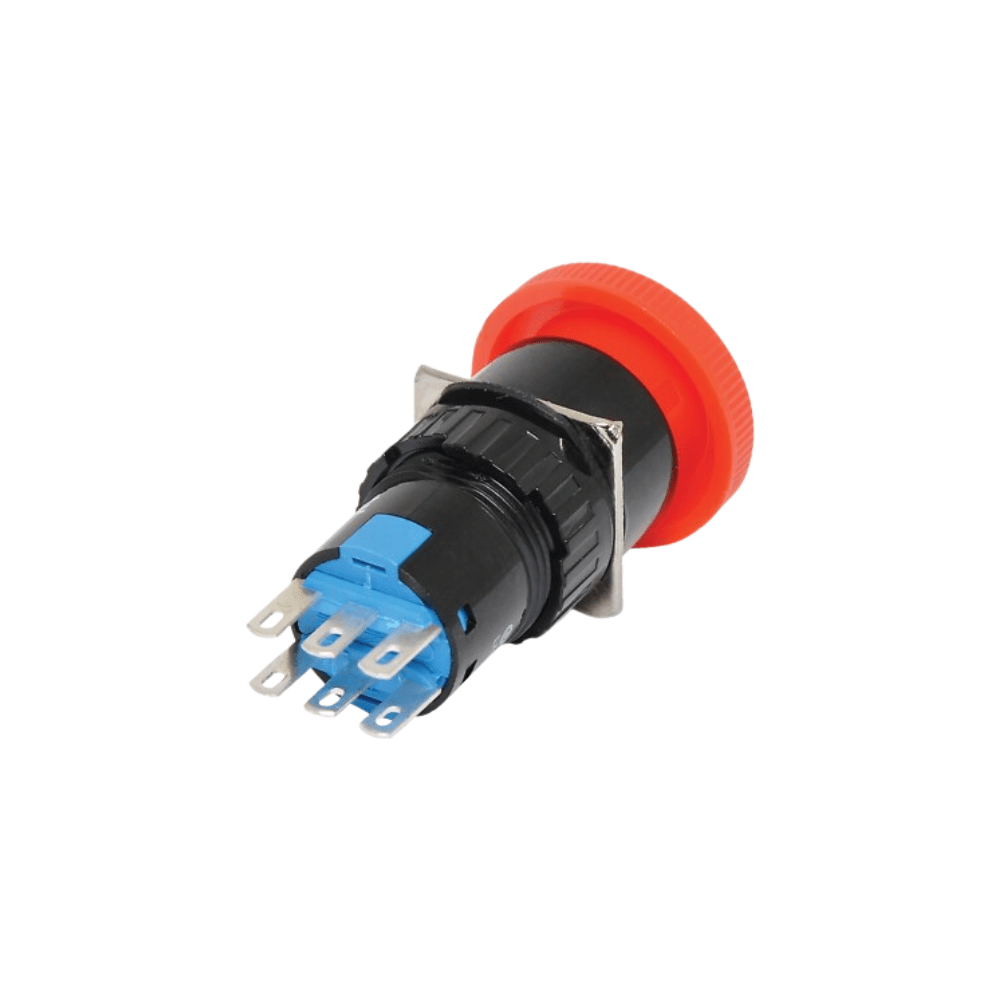

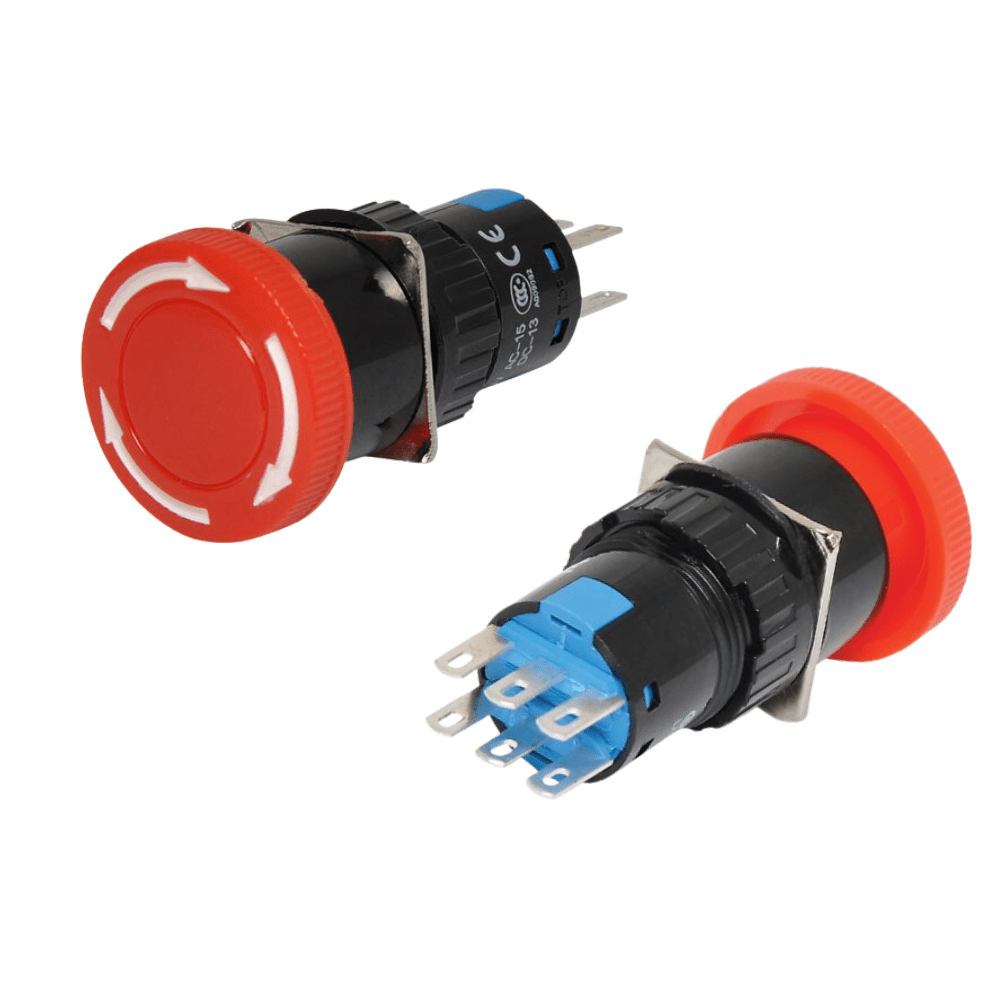

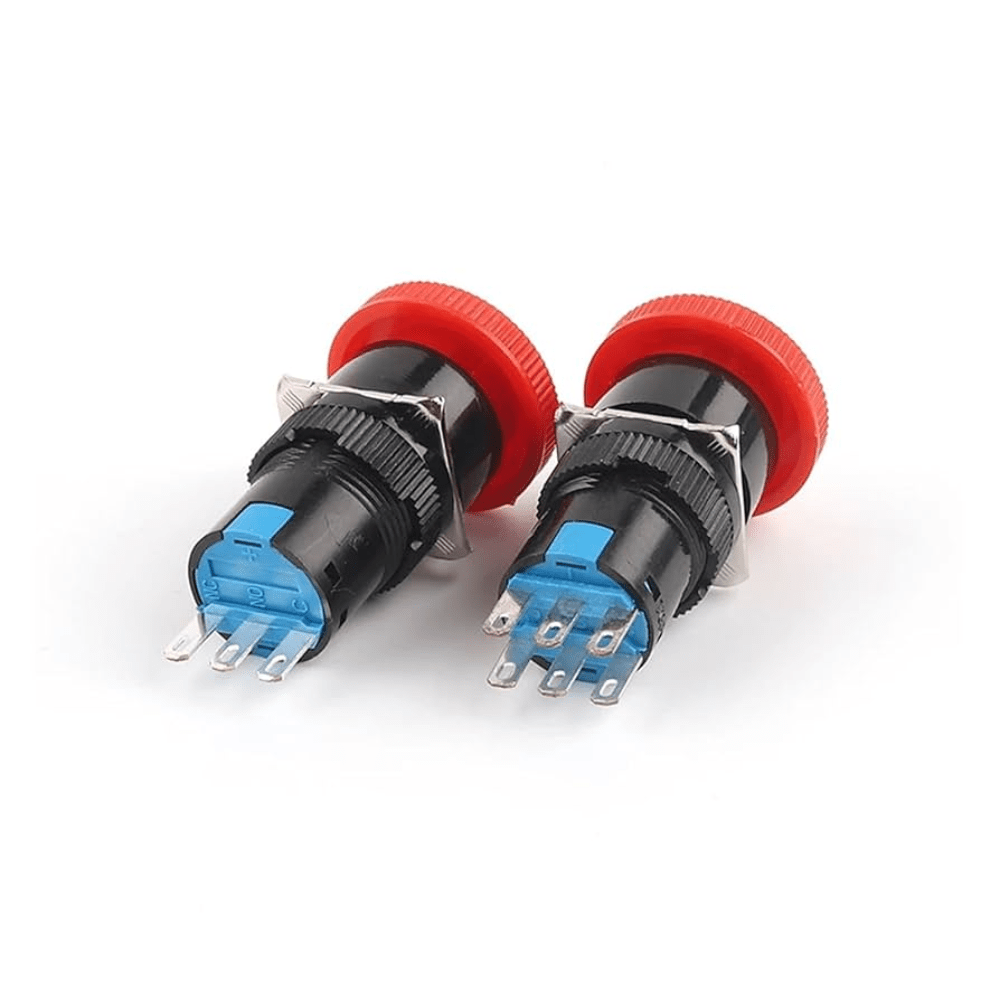

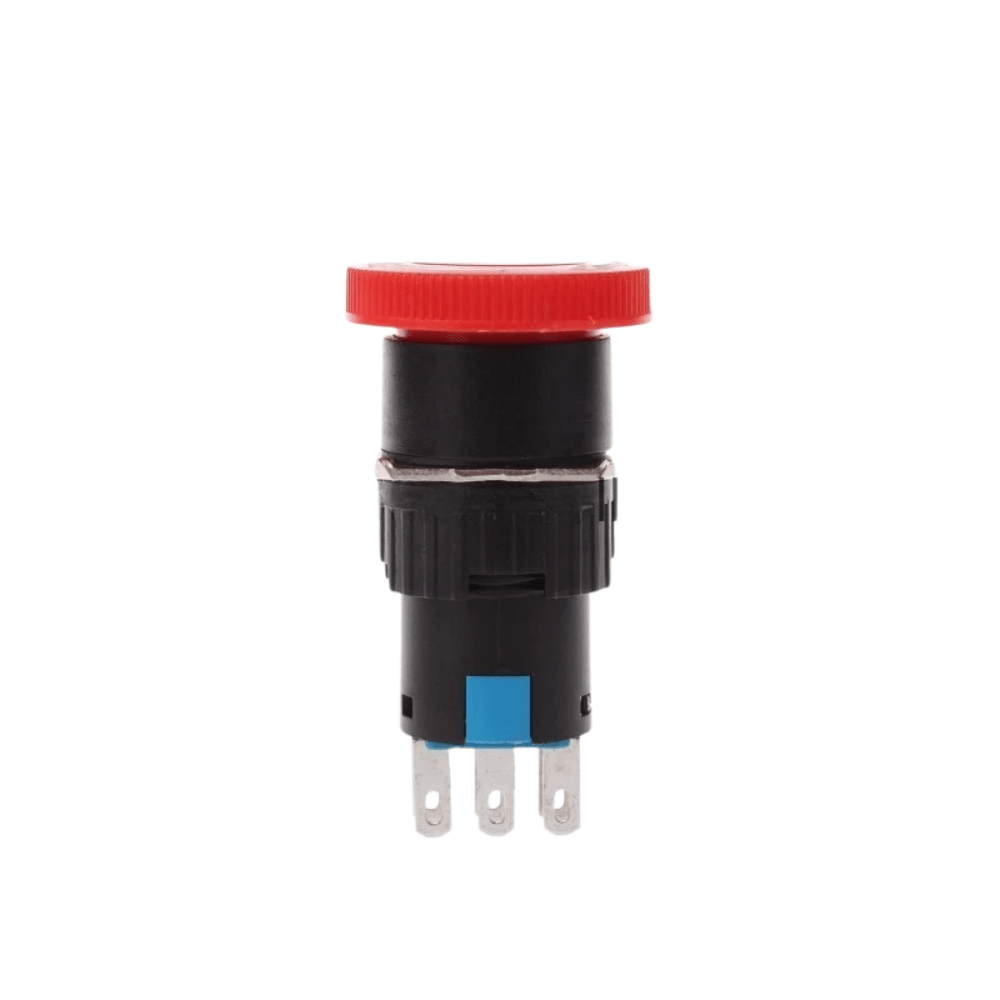

Emergency Switch 6Pin RED Plastic

Description

Push button switch is one of the most easy and quick to operate. The Switches, and buttons are more attractive in appearance and the material that are used illuminative its surface, labelled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.

Specifications:

• Switch type: DPDT
• Contact rating: 500mA @ 250V AC 1A @ 24V DC
• Thermal Current: 5A
• Contact resistance: <50mΩ
• Insulation resistance: >100MΩ
• Dialectric strength: 1000V between poles
• Electrical life: >50,000 cycles
• Ingress protection rating: IP65

It is widely used in industrial automation

Packing List:

1 x Emergency Switch 6PIN RED Plastic
