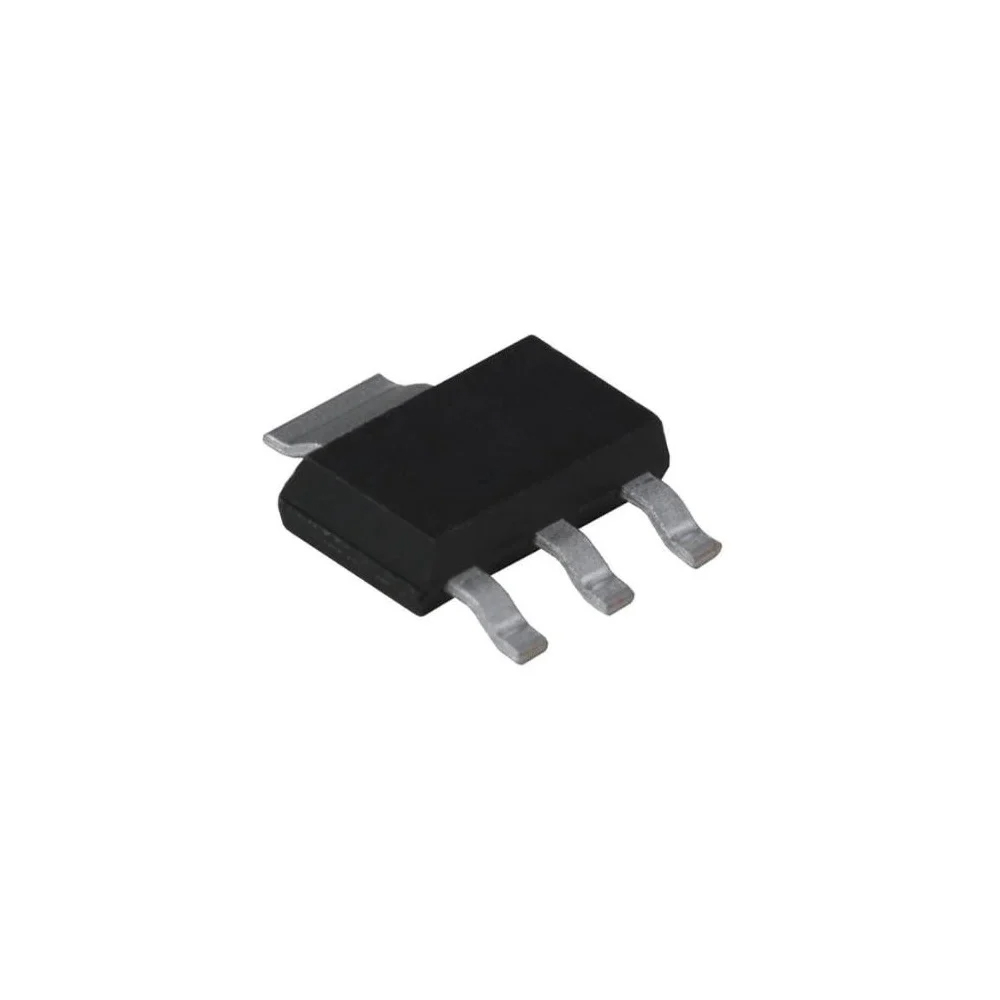

AMS1117 5V, 1A, SOT-223 Voltage Regulator IC (Pack of 5 ICs)

Description

AMS1117-5.0V, 1A, SOT-223 Voltage Regulator IC is a series of low dropout three -terminal regulators with a dropout of 5.0V at 1A load current. AMS 1117 features a very low standby current 2mA compared to 5mA of a competitor. Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, and 12V, AMS1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors.

AMS 1117 offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses a trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%.

Features:

• Fixed/Adjustable 3-terminal Linear voltage regulator
• Low Drop-Out (LDO) Voltage regulator
• Fixed Voltage type: 1.5V, 1.8V, 2.5V, 2.85V, 3.3V and 5V
• Variable Voltage range: 1.25V to 13.8V
• Output current is 1000mA
• Maximum Drop-out Voltage: 1.3V
• In-built Current Limiting and thermal protection.
• Operating junction temperature is 125°C
• Available in SOT-223, TO-252 and SO-8 Package

Datasheet available here.

Packing List:

5 x AMS1117-5V, 1A, SOT-223 Voltage Regulator IC
