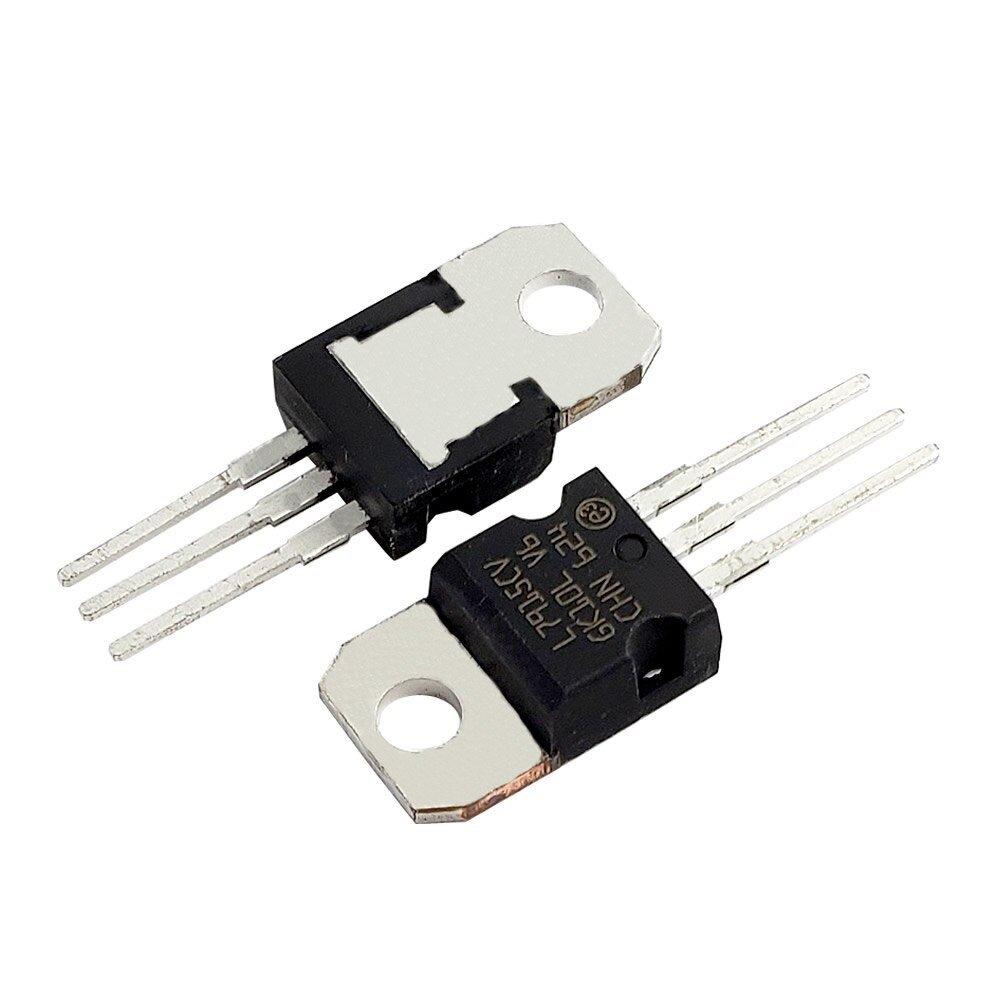

7915 -15V Negative Voltage Regulator IC (Pack of 2)

Description

The LM79XX series of 3-terminal regulators is  available with fixed output voltages of −5V, −12V, and  −15V. These devices need only one external component—a compensation capacitor at the output. The LM79XX series is packaged in the TO-220 power  package and is capable of supplying 1.5A of output current. These regulators employ internal current limiting safe area protection and thermal shutdown for protection against virtually all overload conditions.

Features:

• Output current up to 1.5A
• Thermal overload protection
• Short circuit protection
• Output transition SOA protection

Package Includes:

2 x 7915 -15V Negative Voltage Regulator IC
