7432 Gate IC (Chinese)

Description

7432 IC is member of 74xxx series gate ICs and has the functionality of OR gate or function. It will give high if either all or any of the input is high. 7432 has 4 OR gates of 2 inputs in 1 package.  The internal gates in the ICs are made of Schottky Transistor of low power. OR gate finds Maximum of 2 binary digits.

Pin Description

1. First input of gate 1
2. Second input of gate 1
3. Output of gate 1
4. First input of gate 2
5. Second input of gate 2
6. Output of gate 2
7. GND
8. Output of gate 3
9. First input of gate 3
10. Second input of gate 3
11. Output of gate 4
12. First input of gate 4
13. Second output of gate 4
14. VCC

Package Includes:

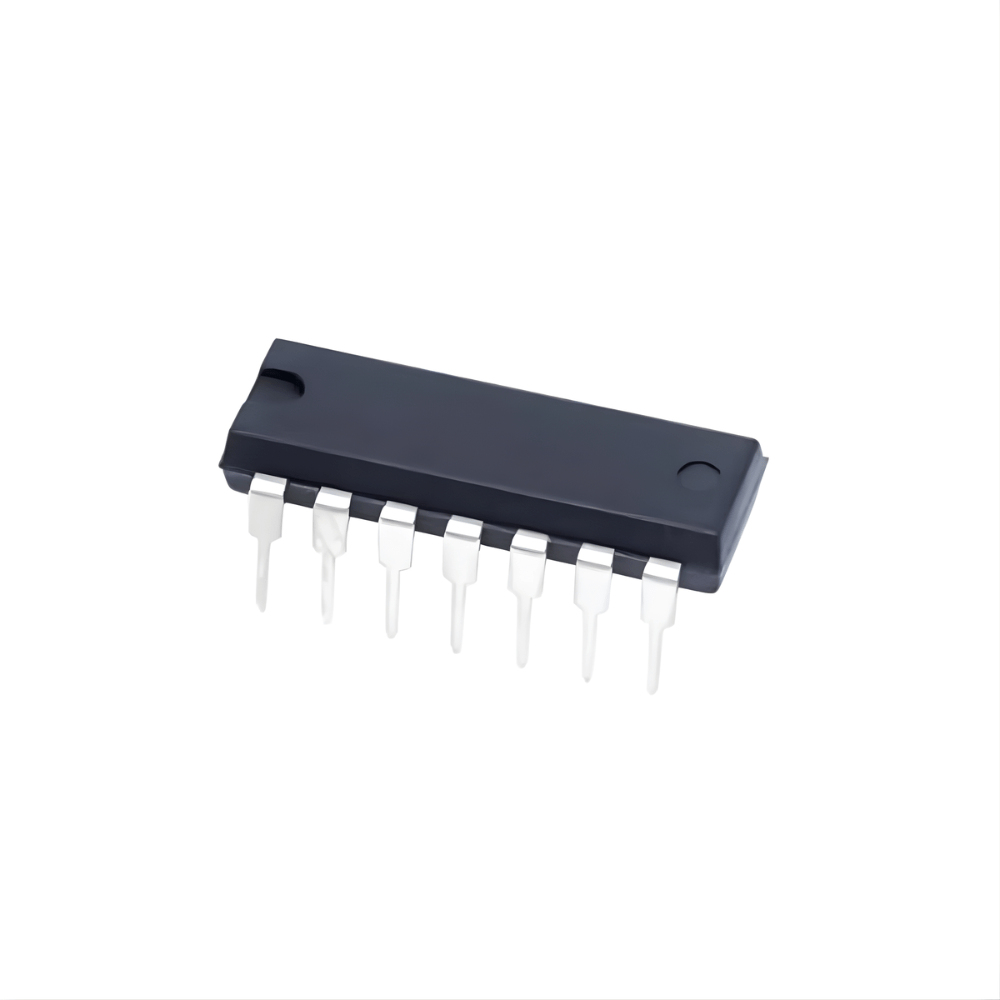

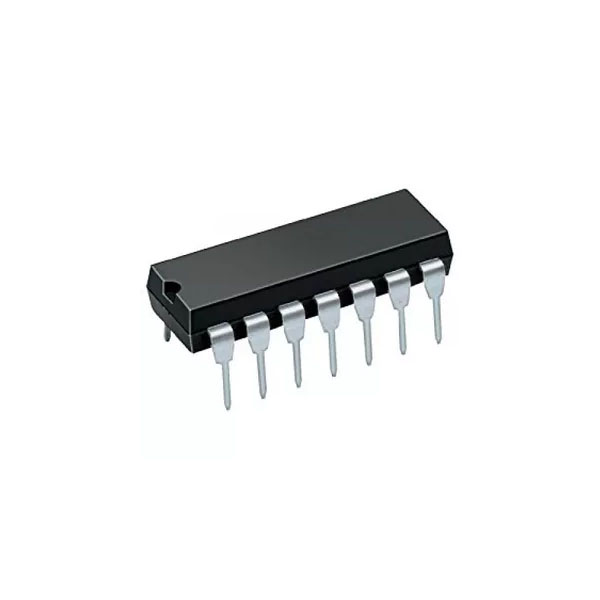

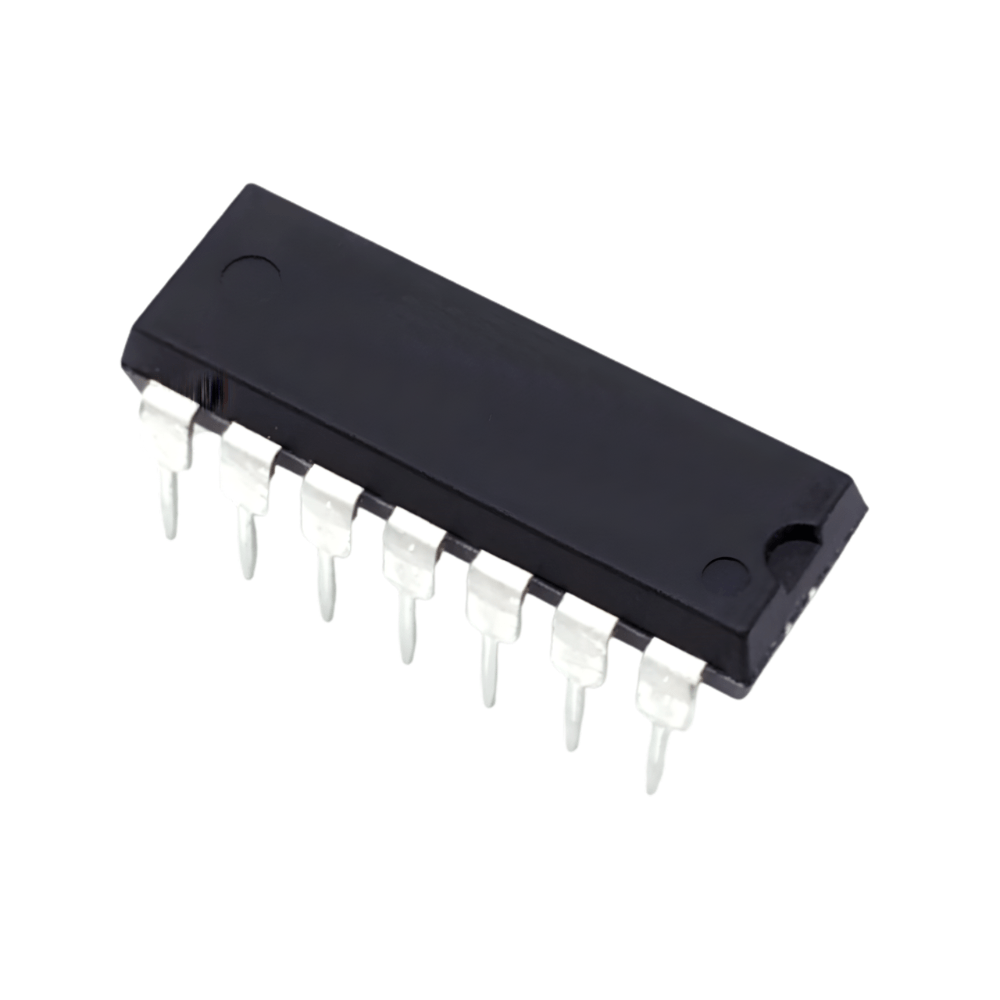

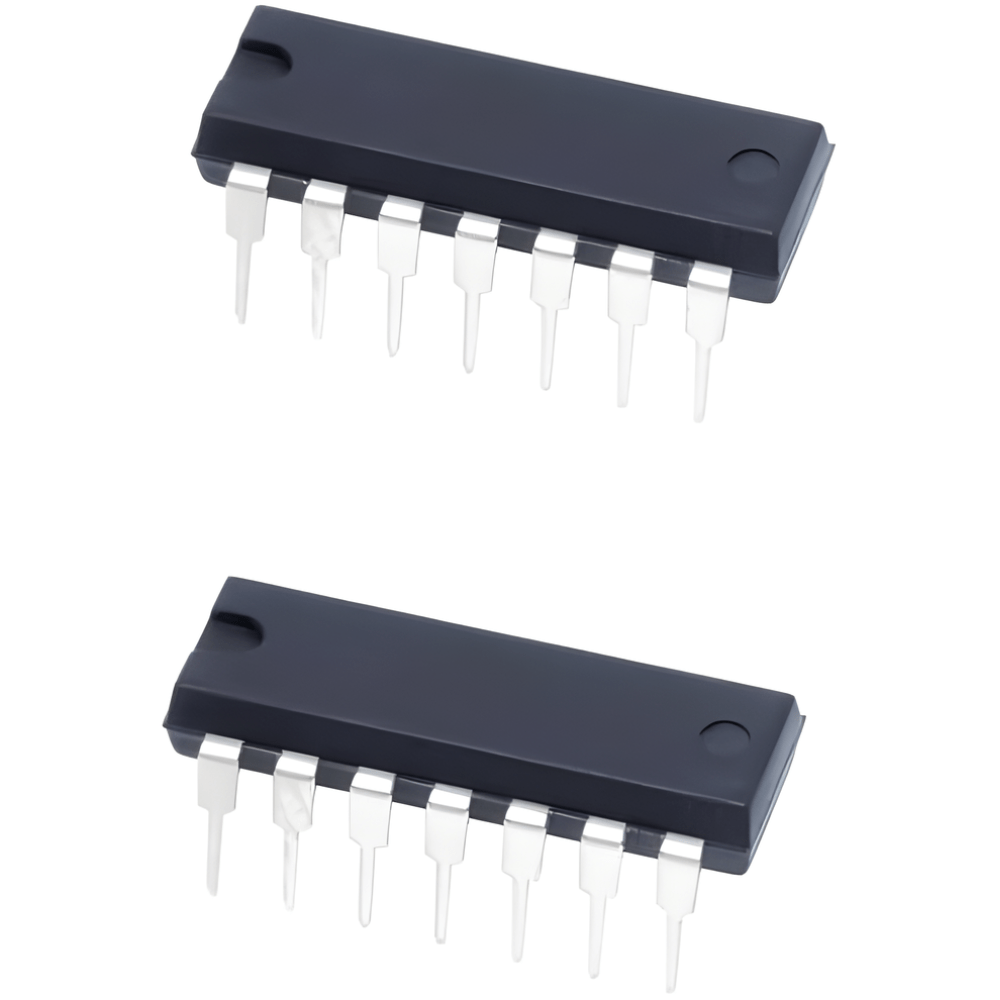

1 x 7432 Gate IC
