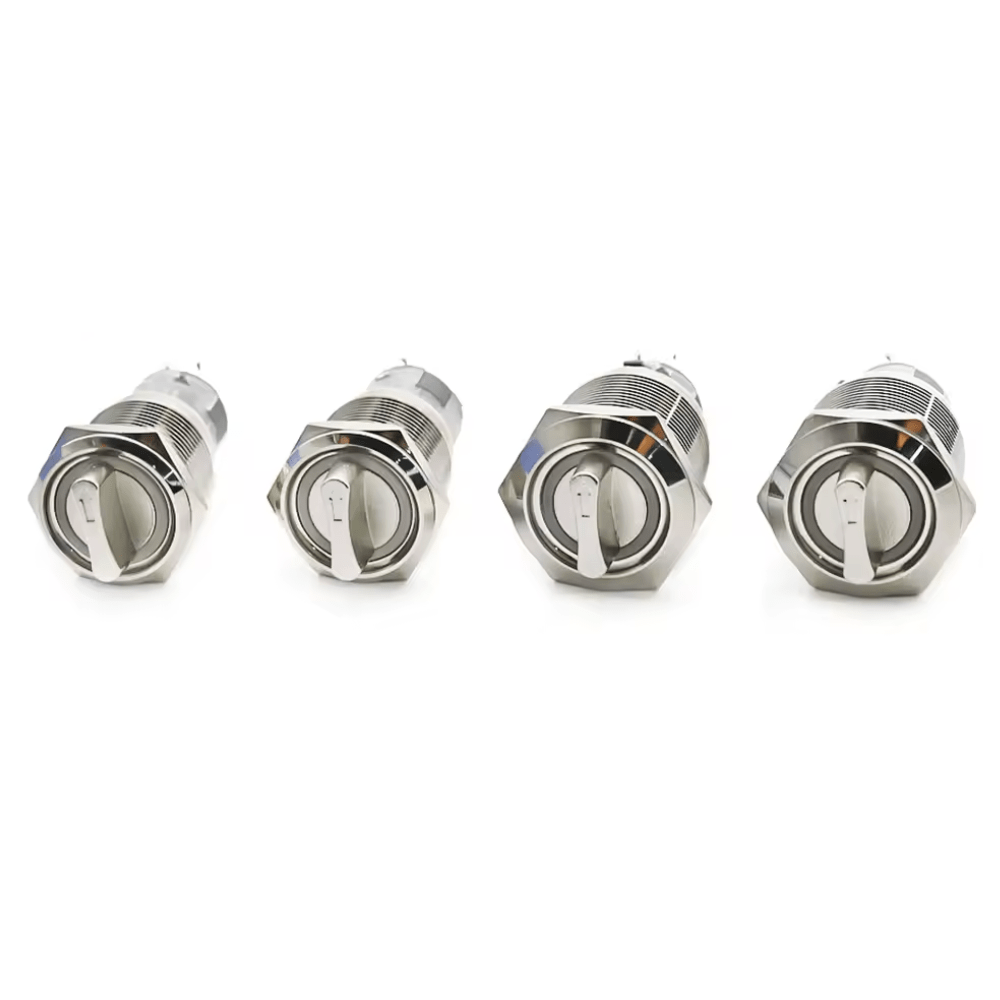

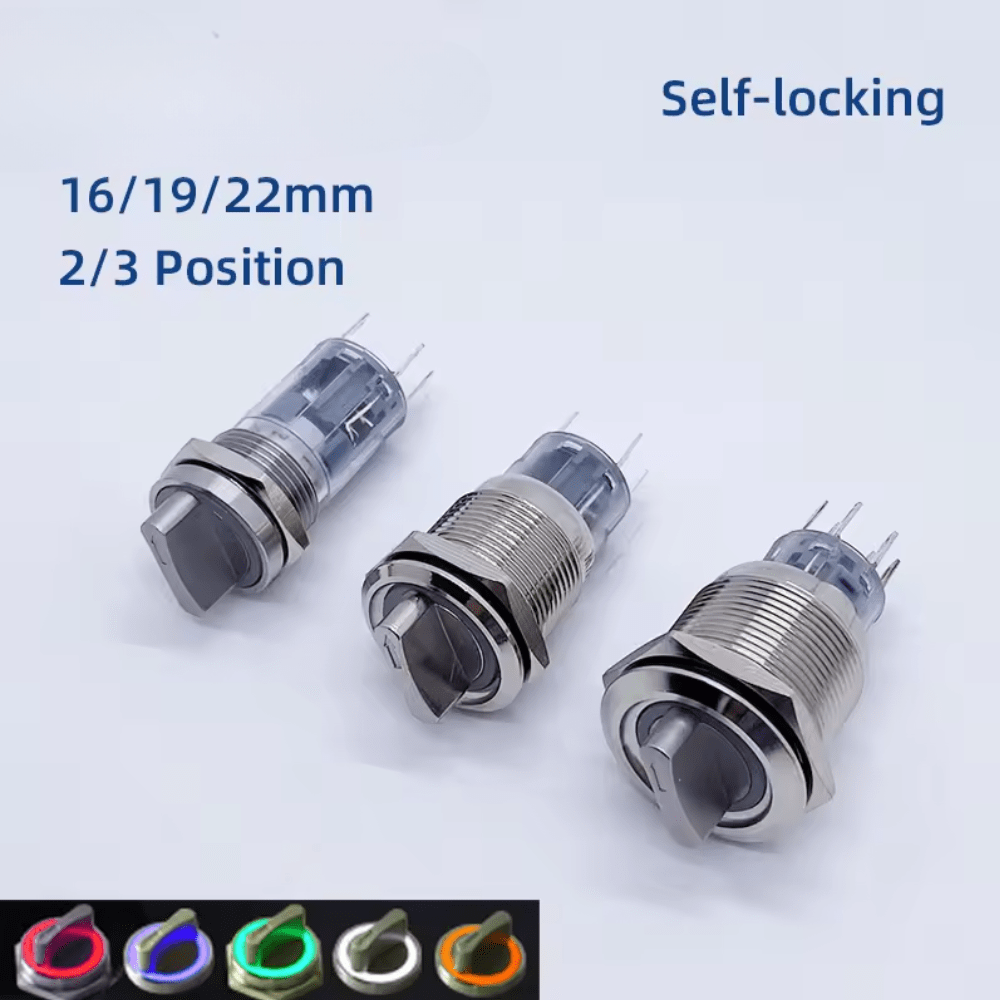

19mm 220V 5Pin 1NO 1NC 2Position Latching Blue Metal Rotary Selector Switch

Description

A rotary switch is a switch operated by rotation. These are often chosen when 2 or more positions are needed. A rotary switch consists of a spindle or “rotor” that has a contact arm or “spoke” which projects from its surface like a cam. It has an array of terminals, arranged in a circle around the rotor, each of which serves as a contact for the “spoke” through which any one of a number of different electrical circuits can be connected to the rotor. The switch is layered to allow the use of multiple poles; each layer is equivalent to one pole. Alternatively, the rotation can be limited to a fraction (half; third etc.) of a circle, and then each layer can have multiple (two; three, etc.) poles.

Working Conditions:

1. The ambient air temperature ≤ +40 ° C, and the average temperature within 24 h ≤ +35 ° C.
2. The lower limit of ambient air temperature ≤ -25 °C.
3. The altitude of the installation location is ≤2000m.
4. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%, and a higher relative humidity can be allowed at lower temperatures, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs due to temperature changes.
5. The surrounding environment should be clean, free of flammable and flammable hazardous materials, no gas sufficient to damage insulation and metal, and no conductive dust.

Packing List:

1 x 19mm 220V 5Pin 1NO 1NC 2Position Latching Blue Metal Rotary Selector Switch
