Description

{ "EnhancedProductTitle": "RJ45 Cat 3 Panel Mount Type-D Connector - High-Quality Networking Solution with Flame Resistant and Anti-Aging Properties", "EnhancedSummary": "

Dia: 22mm
Flame Resistant
Anti-ageing
Widely Used
Durable

Key Features: High-quality connector, Flame resistant, Anti-aging, Widely used, Durable", "EnhancedDescription": "

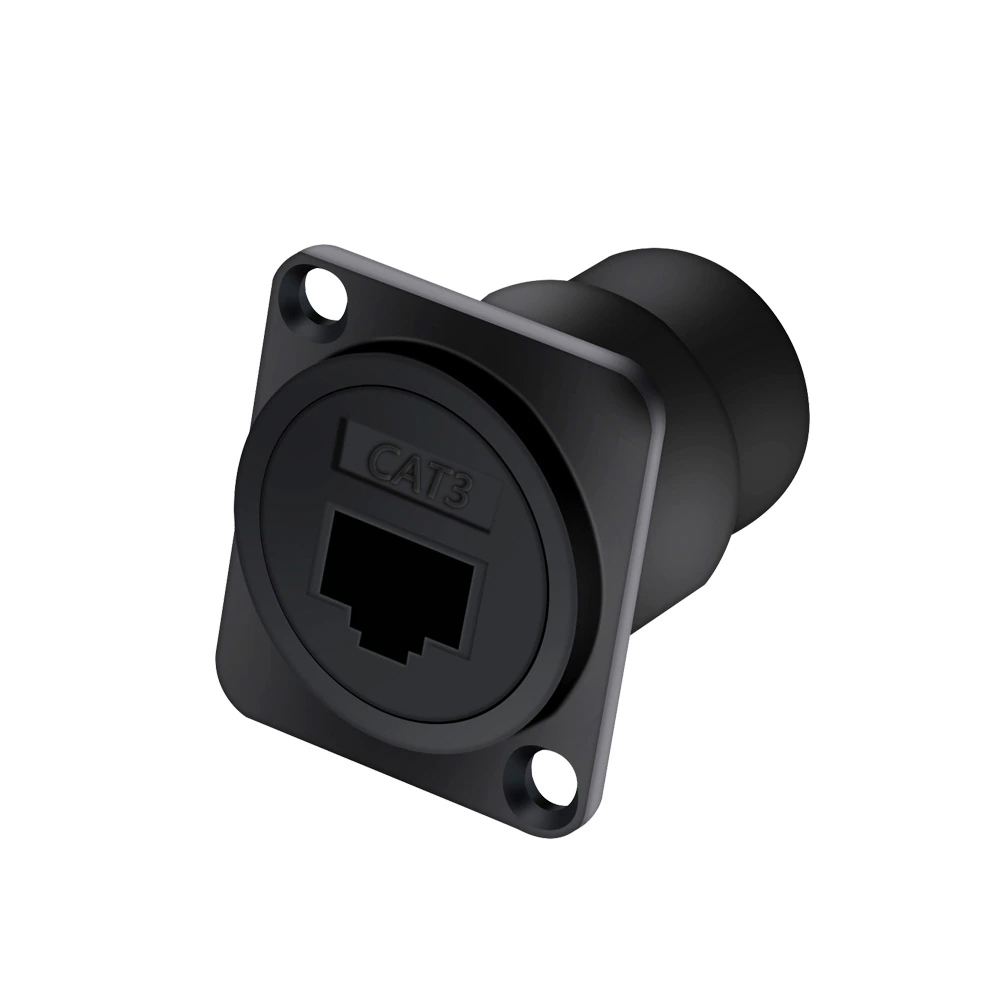

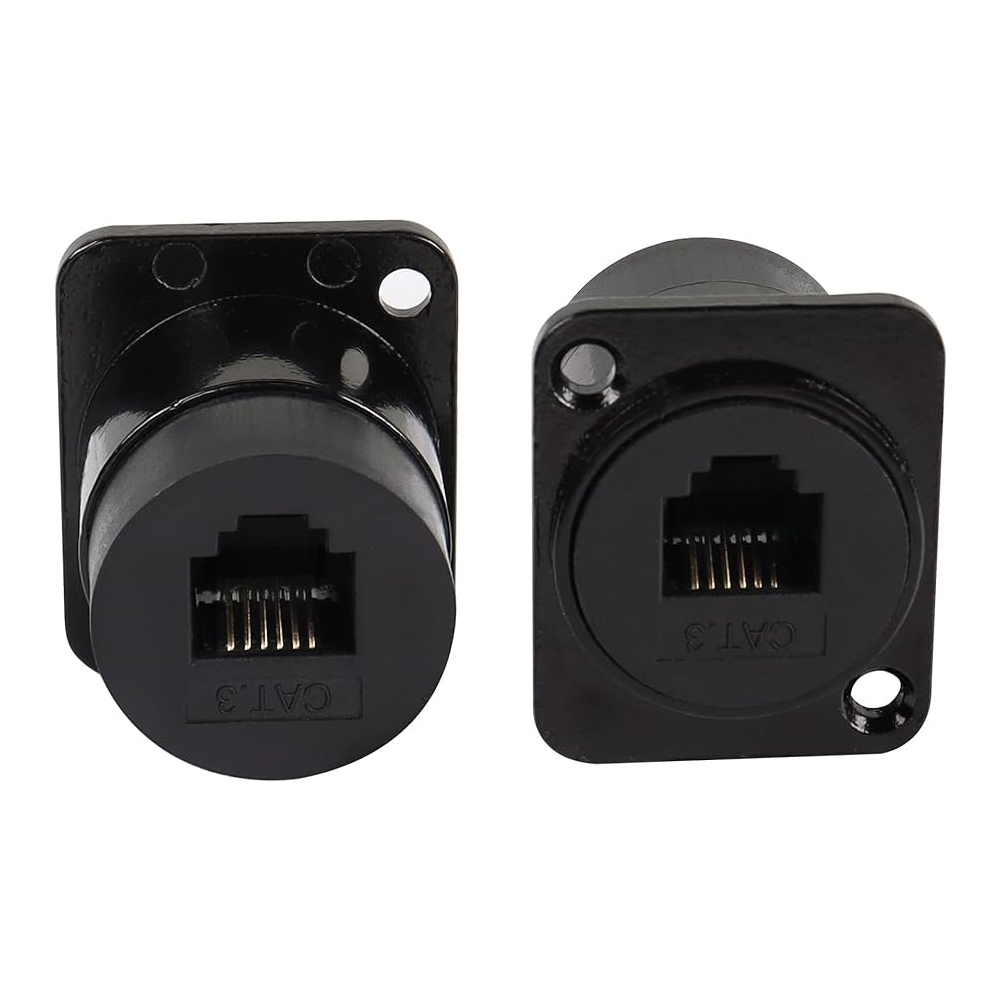

RJ45 Cat 3 Panel Mount Type-D Connector - A Reliable and Efficient Networking Solution

Electrical Characteristics

DC Resistance: ≤300mΩ
Contact Resistance: ≤20mΩ
Dielectric strength: 1000V(AC750V)1min no break down and flashover
Insulation Resistance: ≥1000MΩ

Physical Characteristics

Phosphor bronze with nickel plated, connector pins with golden plated
IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables
Inserting Duration: ≥750 times
Punching Duration: ≥250 times
Jack housing plastic part: UL 94V-2, RED, YELLOW, BLUE, GREEN, BLACK and other colours available
Termination caps material UL94V -2
Working temperature: -25ºC~60ºC

Packing List:

1 x RJ45 Cat3 Panel Mount Type-c Connector
